Home › Toyota › 2001 › RAV4 Base, AWD, Automatic › Repair and Diagnosis › Brakes › Traction Control › Abs Actuator › Components

Abs Actuator: Components

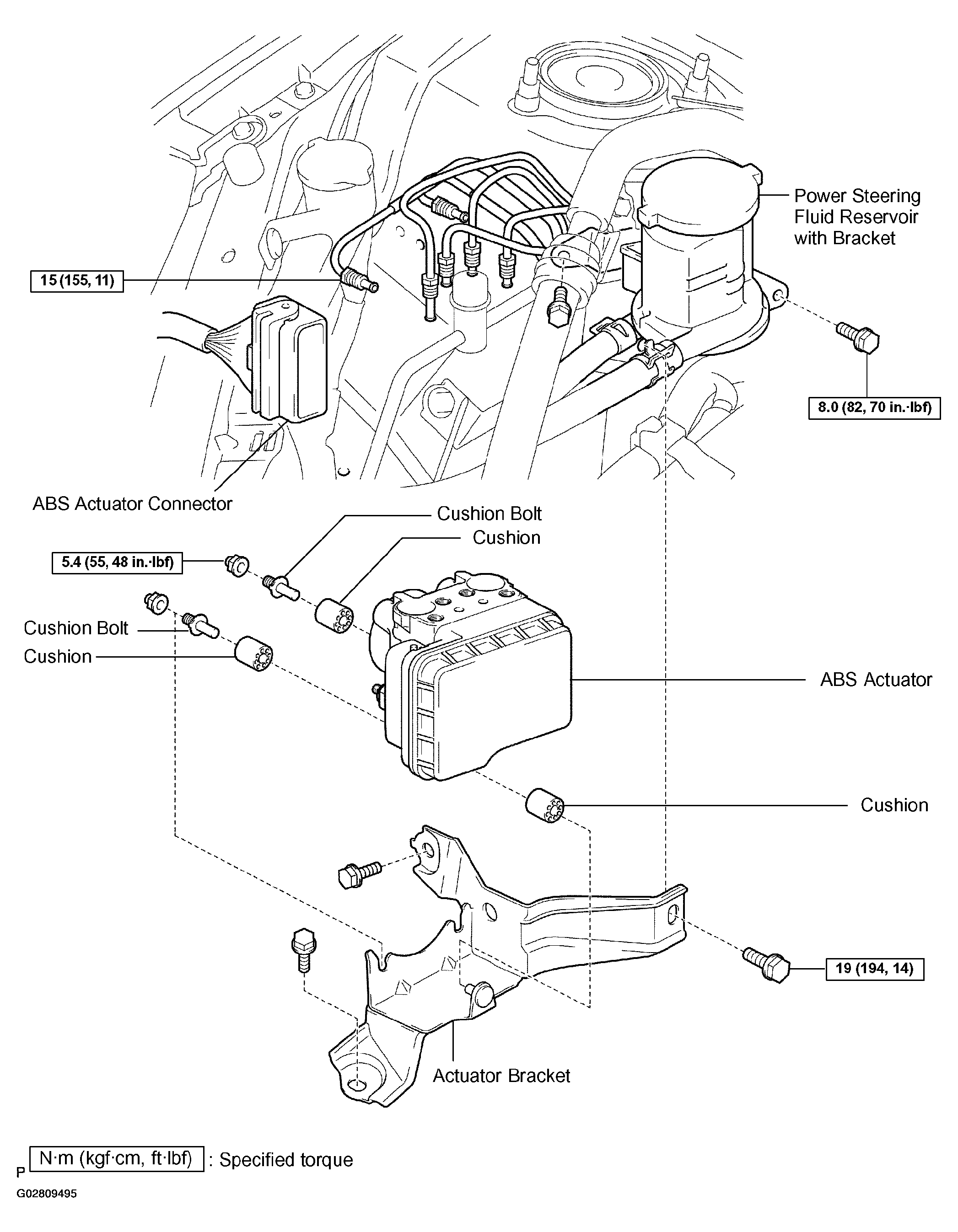

Fig 1: Exploded View Of ABS Actuator Components
G02809495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
