Deceleration Sensor
›
Components
Deceleration Sensor: Components

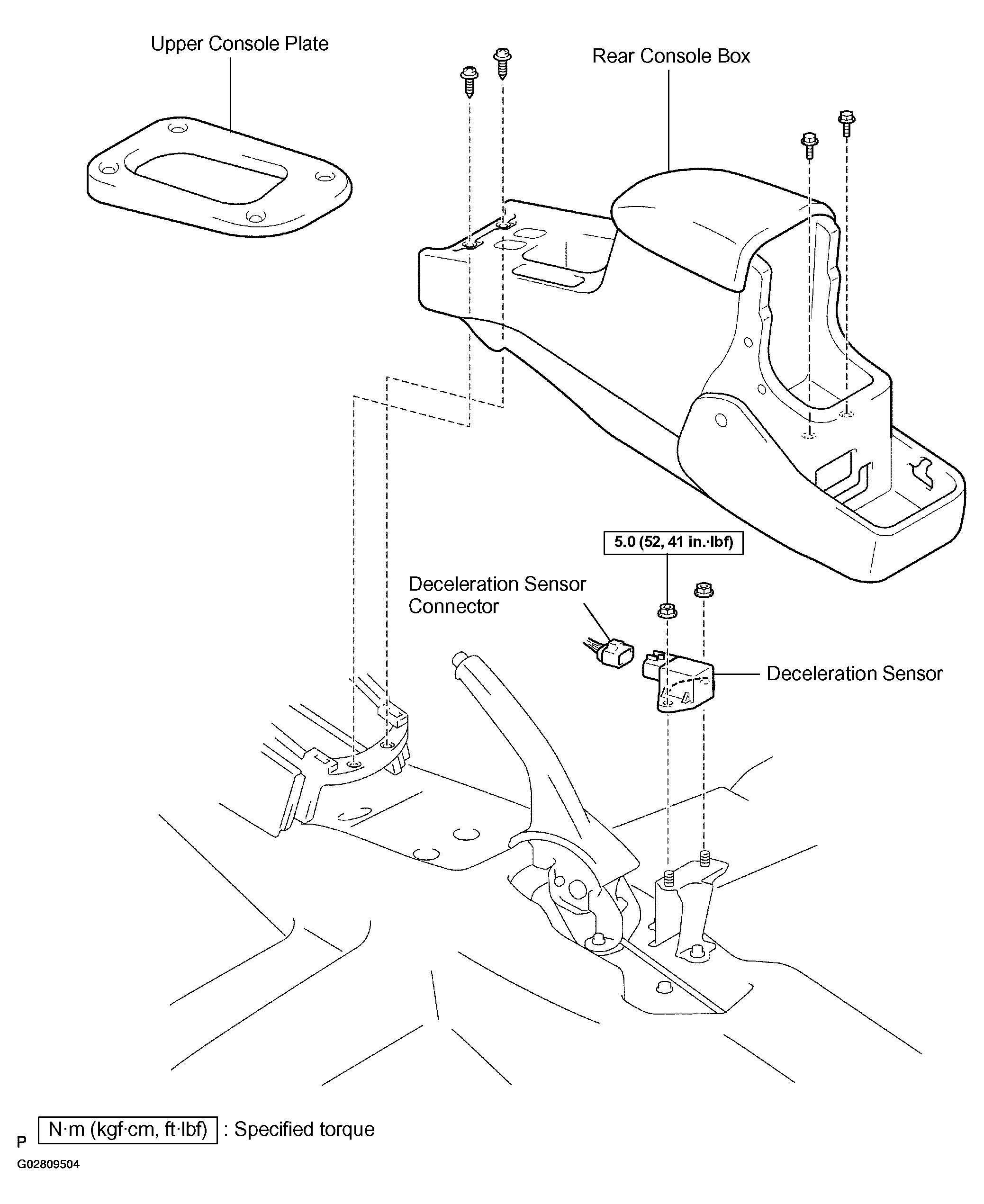

Fig 1: Identifying Components For Deceleration Sensor Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
