Deceleration Sensor
›
Removal
›
Remove Deceleration Sensor
Remove Deceleration Sensor
Remove the rear console box and upper console plate.
Disconnect the sensor connector.
Remove the 2 nuts and deceleration sensor.

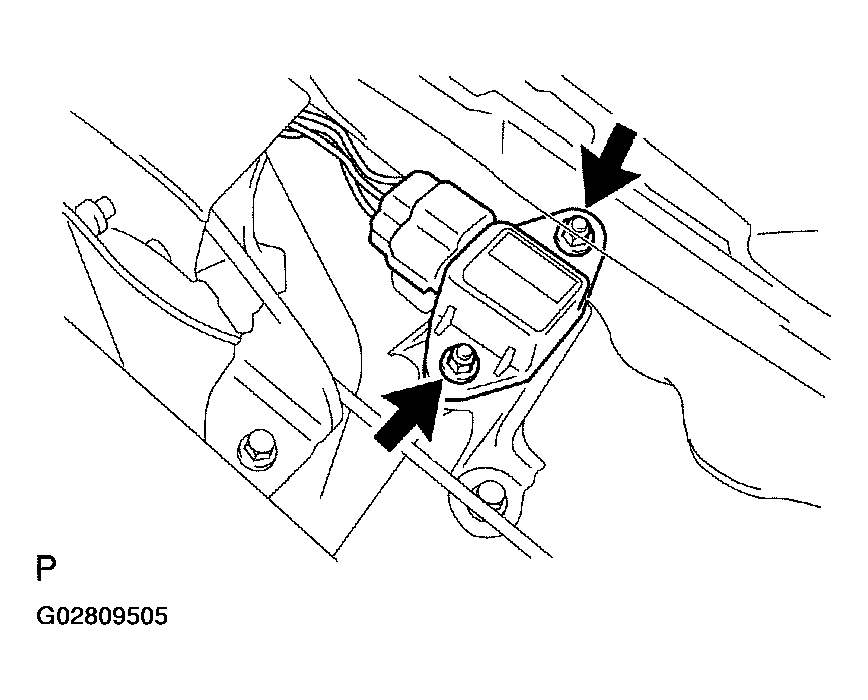

Fig 1: Locating 2 Nuts And Deceleration Sensor For Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 5.0 N.m (52 kgf.cm, 41 in..lbf)
