Interior Light No. 2

Interior light No. 2 is located on the headliner. See Figure. Disconnect electrical connector at interior light No. 2.
Using ohmmeter, check that continuity exists between terminals No. 2 and body ground with switch on interior light No. 2 in ON position. See Fig 1. Check that continuity exists between terminals No. 1 and 2 with switch on interior light No. 2 in DOOR position. See Fig 1. Replace switch for interior light No. 2 if continuity is not as specified.

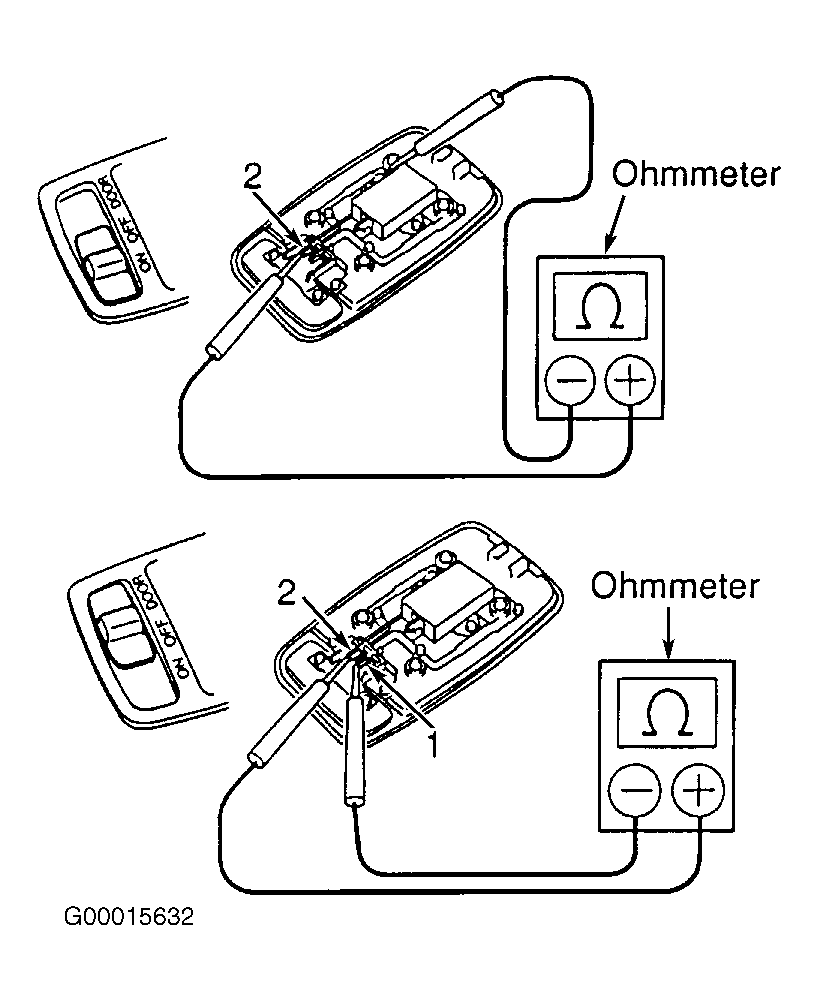

Fig 1: Testing Interior Light No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
