Power Door Lock Control Switch
NOTE:
Power door lock control switch may also be referred to as door lock control switch.

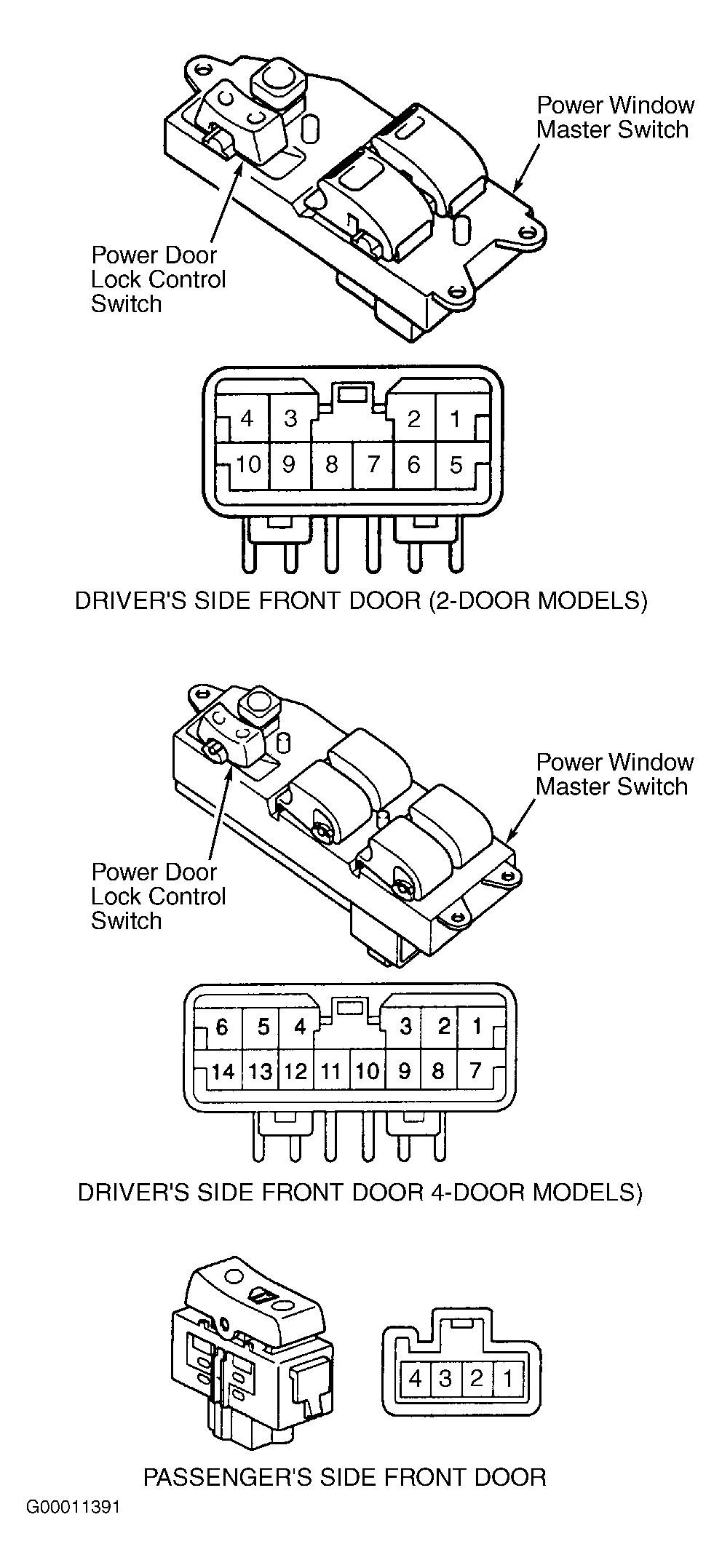

- On driver's side front, power door lock control switch is incorporated into the power window master switch. See Fig 1. On passenger's side front door, power door lock control switch is located on the door panel and is a separate switch.
- On all applications, disconnect electrical connector from power door lock control switch. Note power door lock control switch electrical terminal identification. See Fig 1.
- Using ohmmeter, check that continuity and no continuity is as specified between indicated power door lock control switch electrical terminals in relation to power door lock control switch position. See POWER DOOR LOCK CONTROL SWITCH CONTINUITY table. Replace power door lock control switch if defective.POWER DOOR LOCK CONTROL SWITCH CONTINUITY
Application & Switch Position Switch Terminals No. Specification Driver's Side Front Door (2-Door Models) LOCK 1 & 2 Continuity OFF 1, 2 & 5 Continuity UNLOCK 1 & 5 Continuity Driver's Side Front Door (4-Door Models) LOCK 2 & 3 Continuity OFF 2, 3 & 7 Continuity UNLOCK 3 & 7 Continuity Passenger's Side Front Door LOCK 3 & 4 Continuity OFF 2, 3 & 4 Continuity UNLOCK 2 & 4 Continuity
