Power Window Control System
›
Power Window Control System
›
Troubleshooting
›
Step 2 - During AUTO UP Operation, Power Window Moves Down
Step 2 - During AUTO UP Operation, Power Window Moves Down

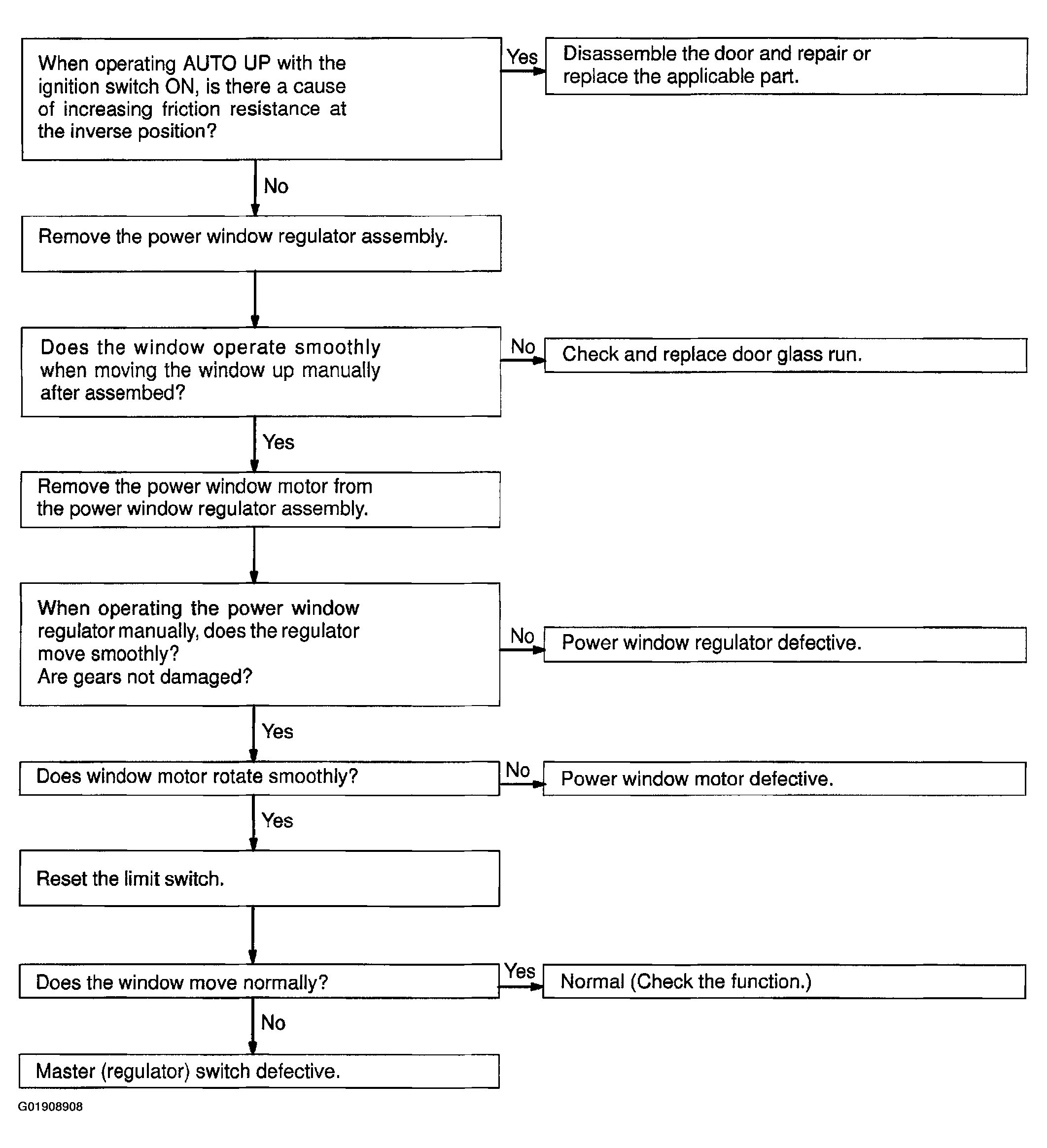

Fig 1: During AUTO UP Operation Power Window Moves Down
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
