Back Door Power Window Switch Circuit
›
Wiring Diagram
Back Door Power Window Switch Circuit: Wiring Diagram

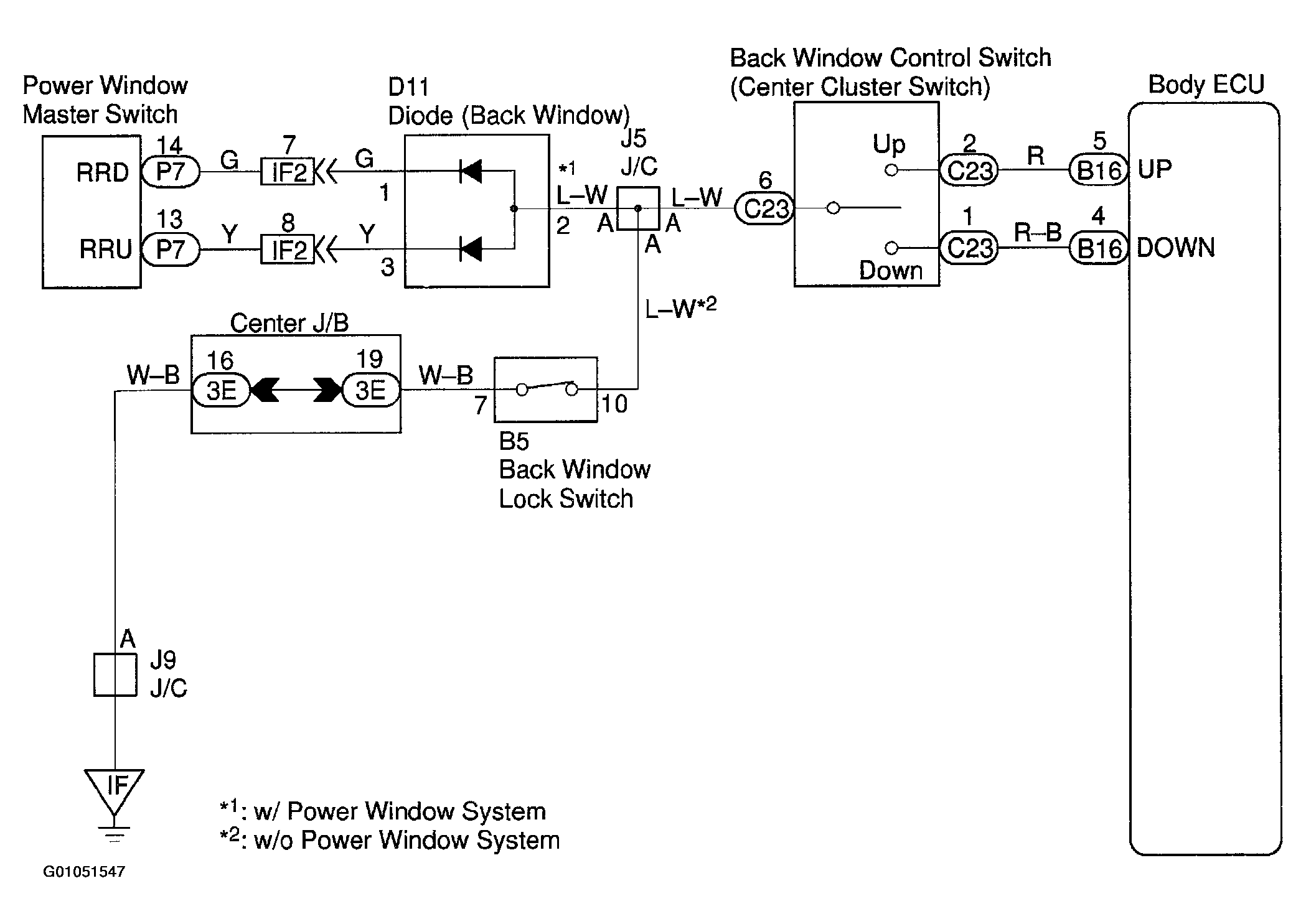

Fig 1: Back Door Power Window Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
