Body Control Systems - Diagnostics
›
Circuit Inspection
›
Door Key Lock And Unlock Switch Circuit
›
Wiring Diagram
Door Key Lock And Unlock Switch Circuit: Wiring Diagram

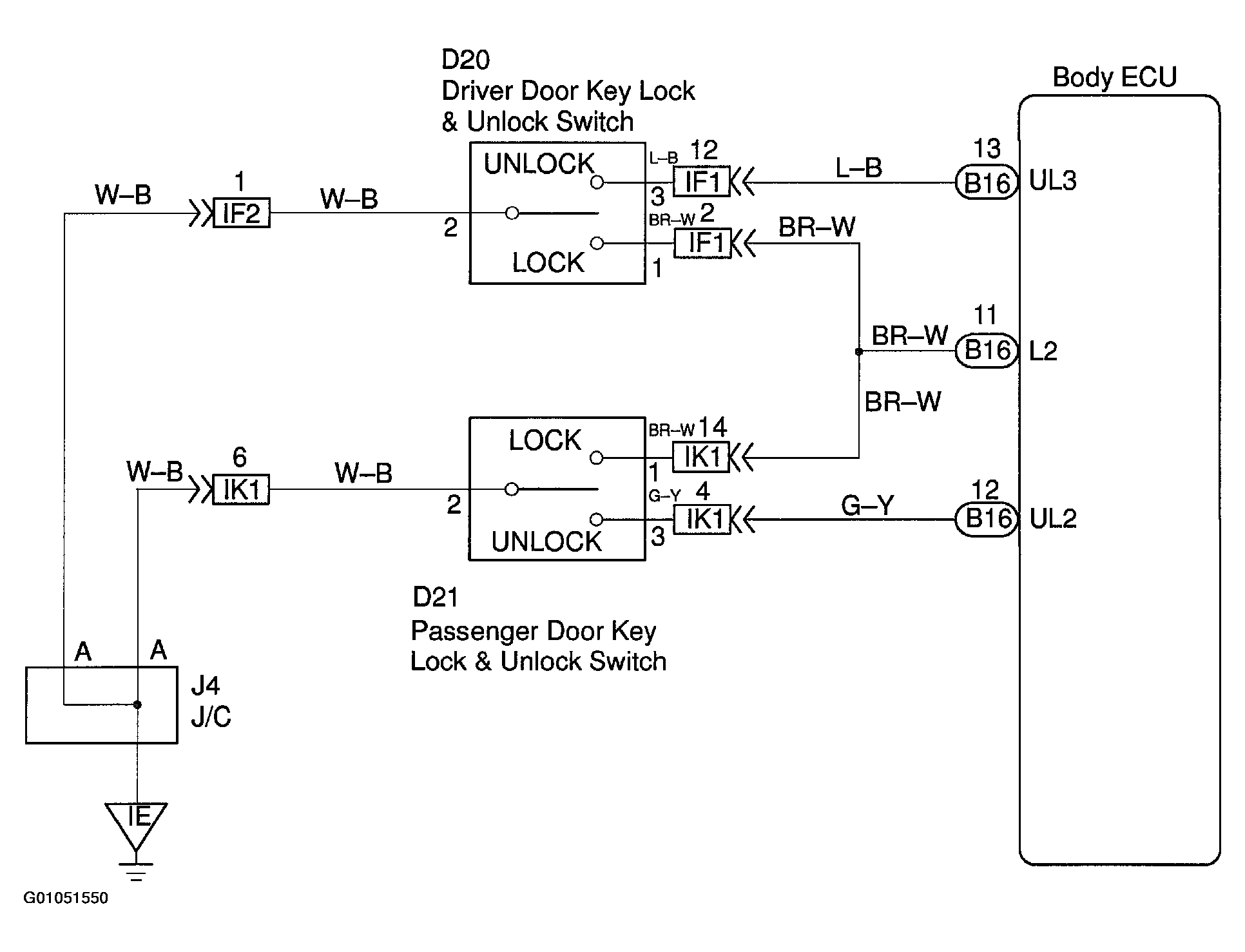

Fig 1: Door Key Lock & Unlock Switch Circuit Wiring Diagram
