Circuit Inspection
›
Door Lock Control Switch Circuit
›
Wiring Diagram
Door Lock Control Switch Circuit: Wiring Diagram

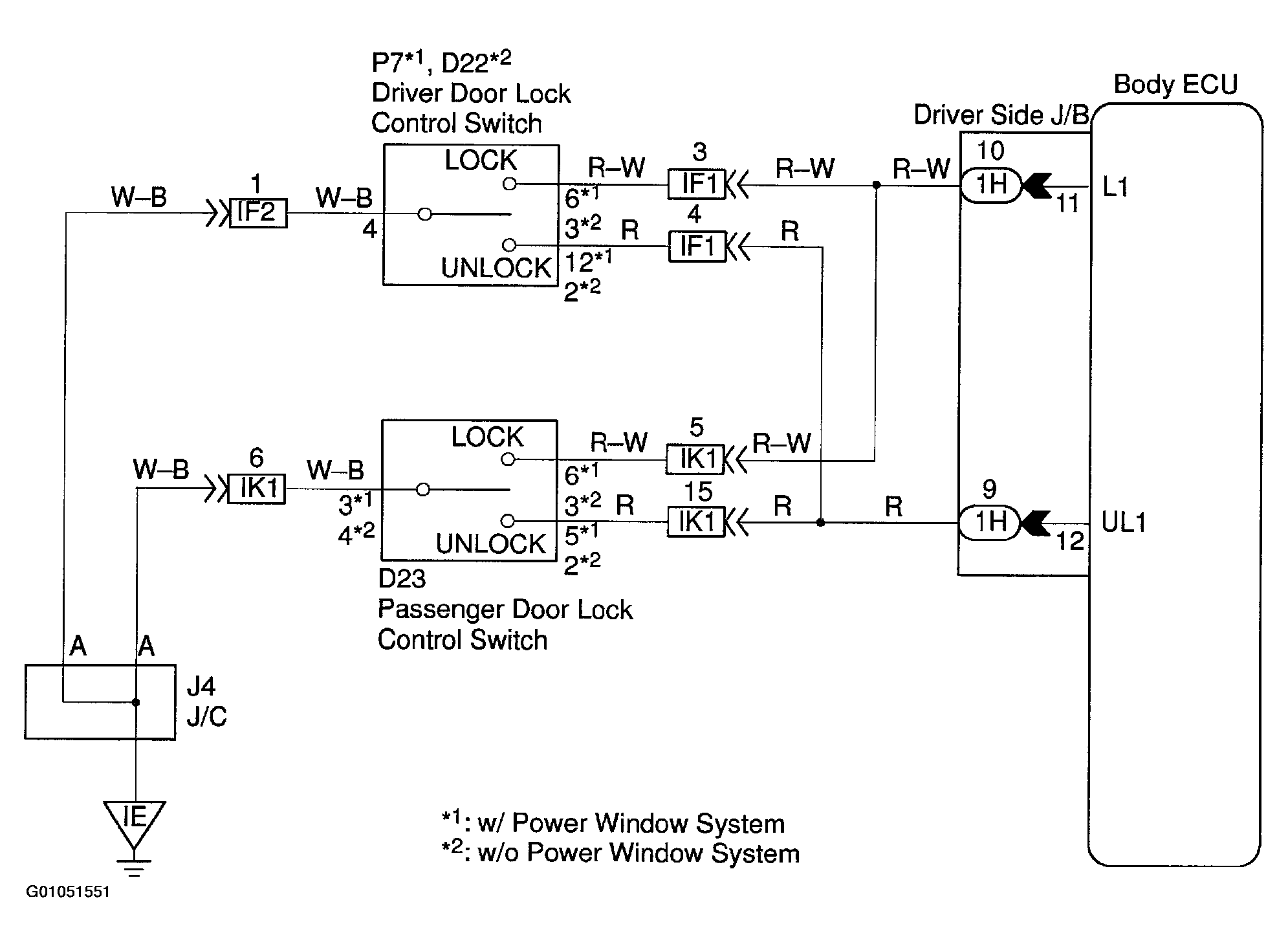

Fig 1: Door Lock Control Switch Circuit Wiring Diagram
