Body Control Systems - Diagnostics
›
Circuit Inspection
›
Headlight Relay Circuit
›
Wiring Diagram
Headlight Relay Circuit: Wiring Diagram

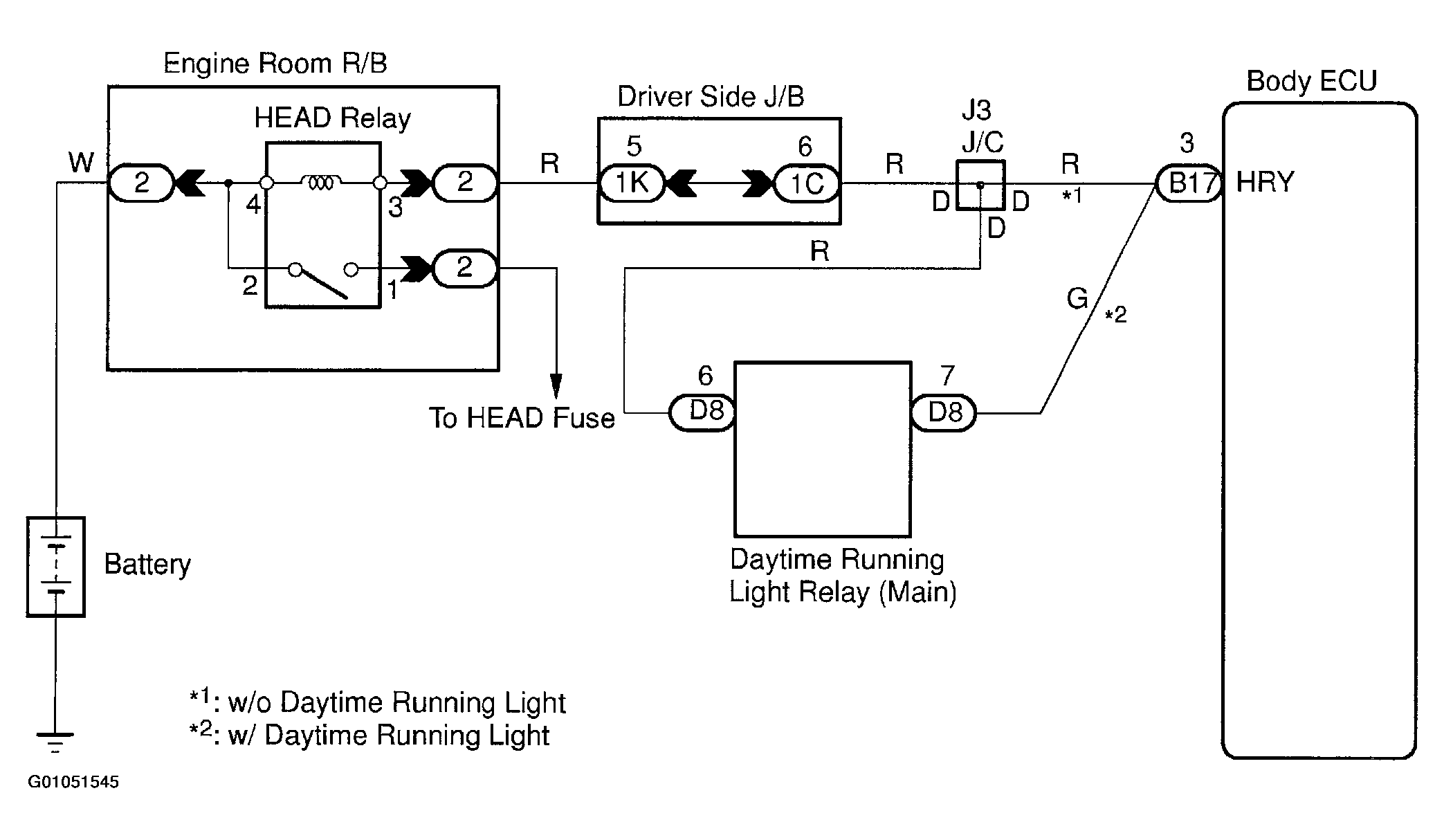

Fig 1: Headlight Relay Circuit Wiring Diagram
