Back Door Control System
›
Circuit Inspection
›
Back Door Control Switch Circuit
›
Wiring Diagram
Back Door Control Switch Circuit: Wiring Diagram

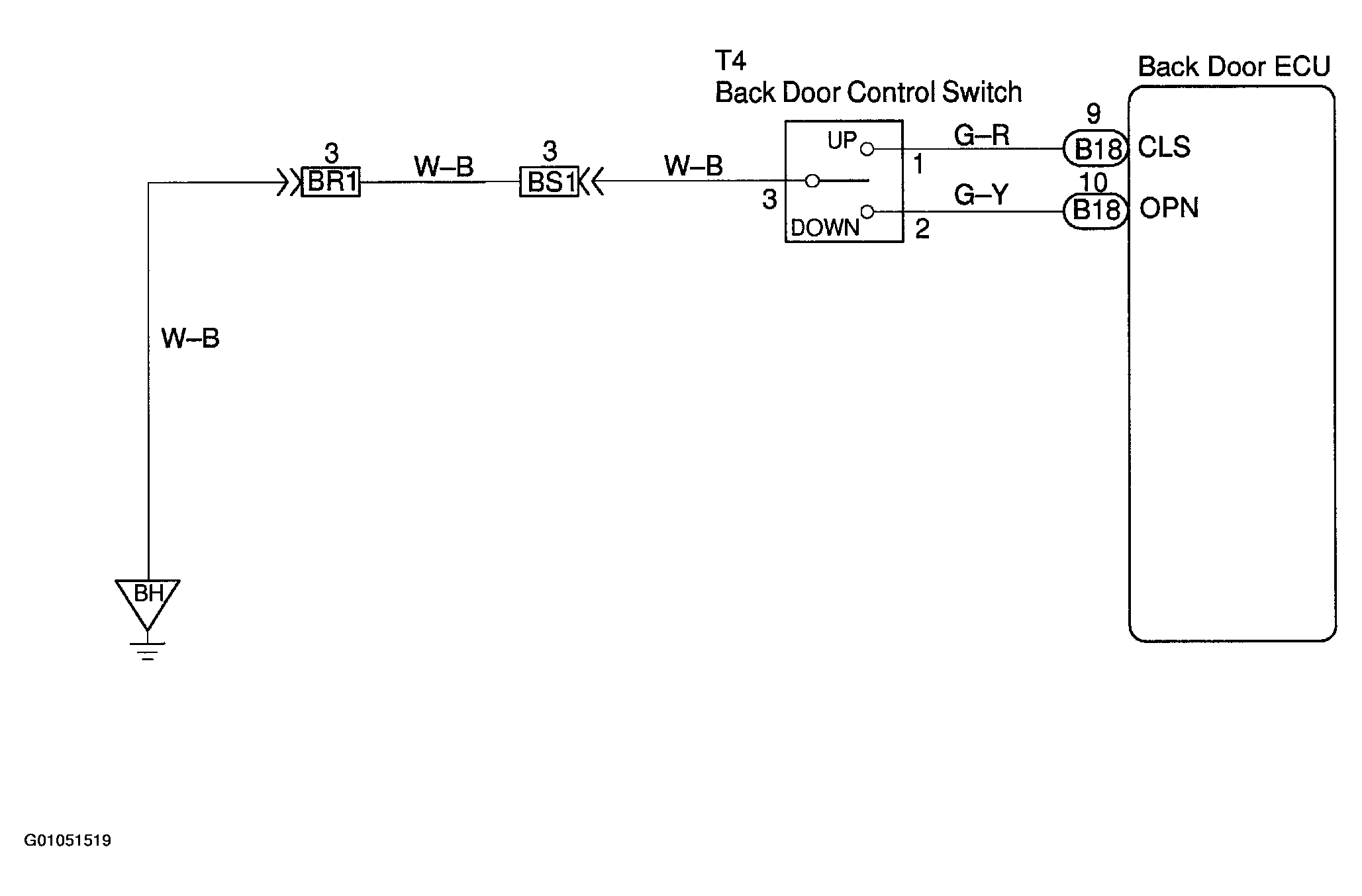

Fig 1: Back Door Control Switch Circuit Wiring Diagram
