Door Locks
›
Back Door Control System
›
Circuit Inspection
›
Window Limit Switch Circuit
›
Wiring Diagram
Window Limit Switch Circuit: Wiring Diagram

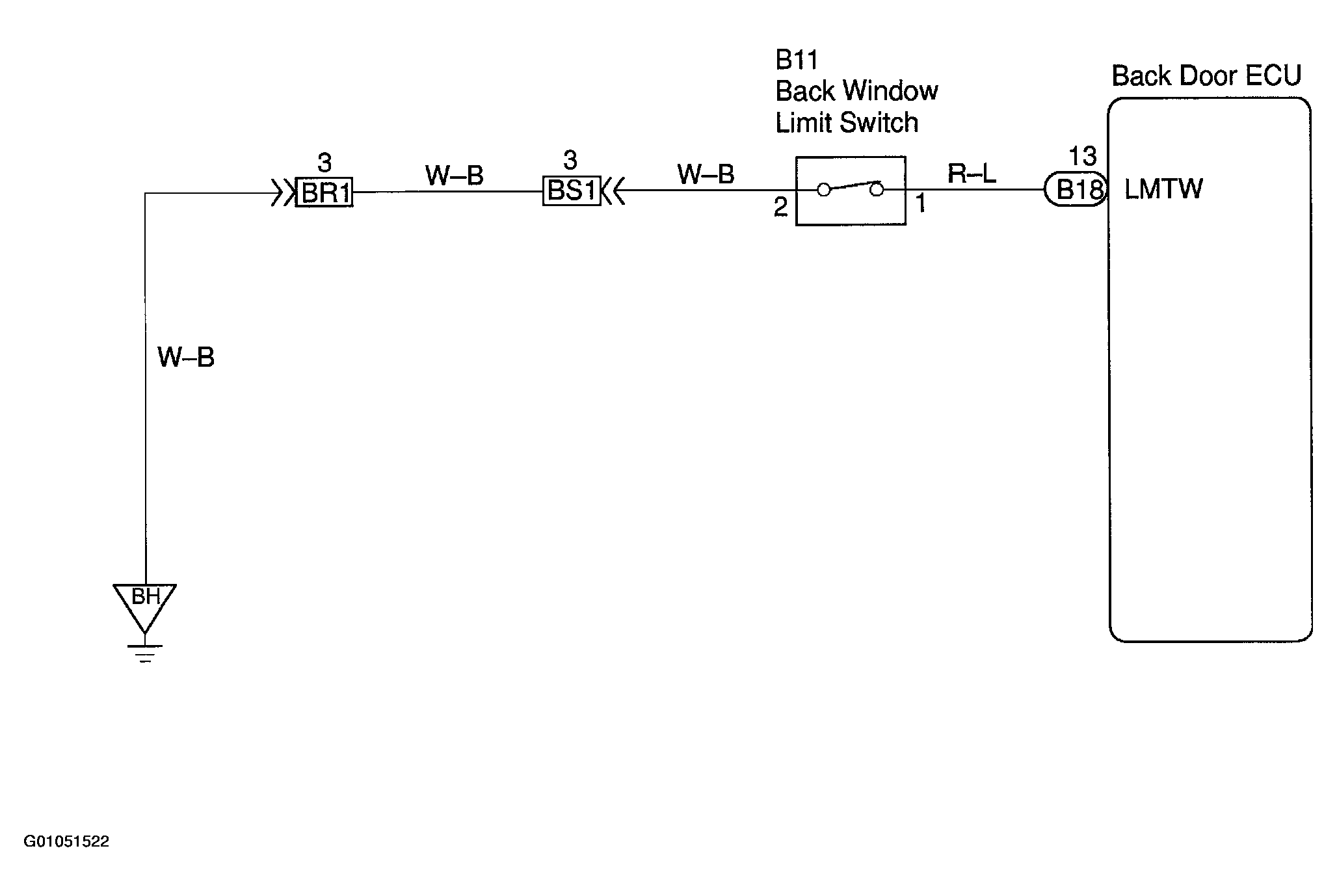

Fig 1: Window Limit Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
