Back Door Control System
›
Parts Location
Parts Location

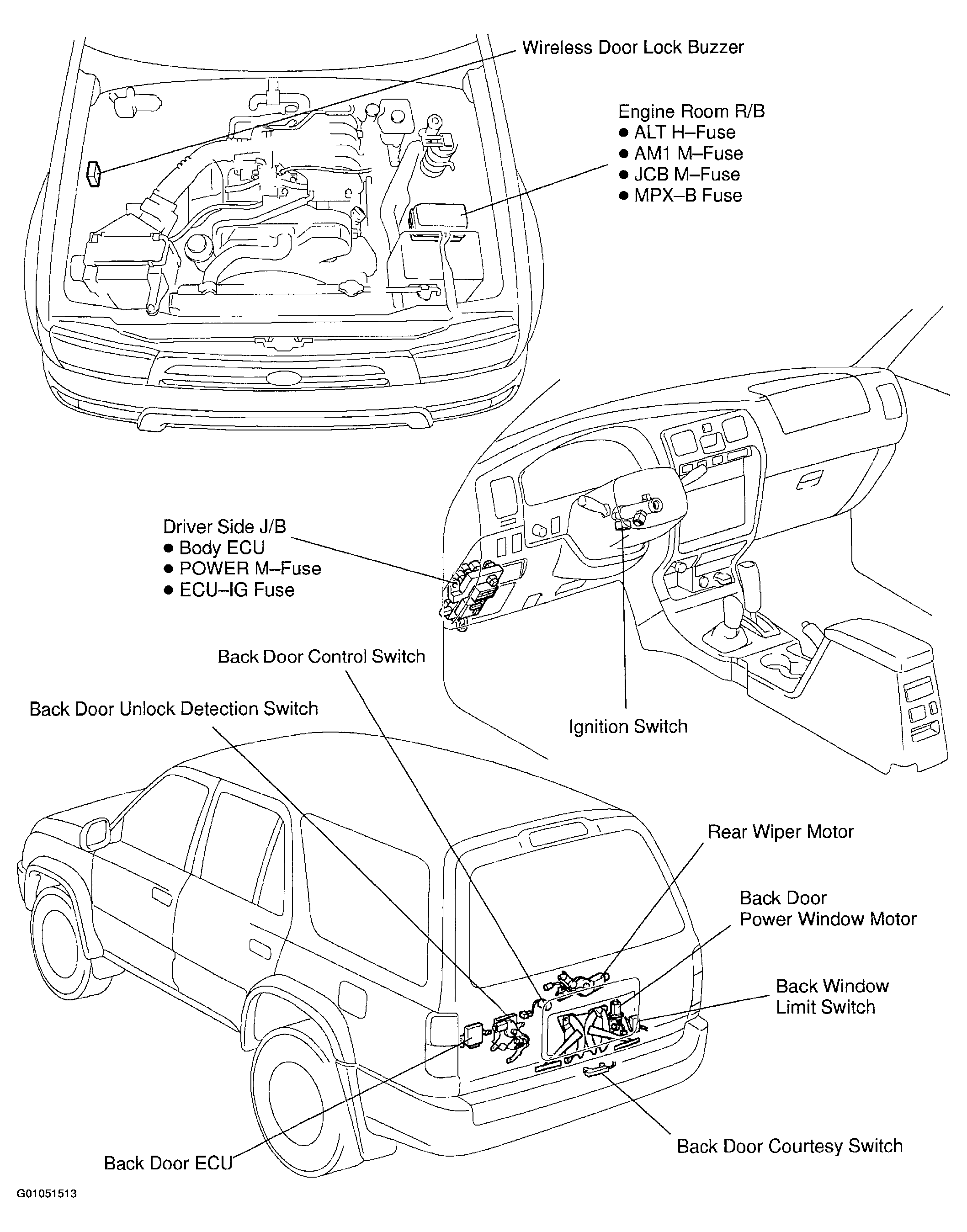

Fig 1: Locating Back Door Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
