Power Door Lock Control System: Inspection

W/ Power Window, inspect driver's door lock control switch (master switch) continuity .

Fig 1: Driver's Door Lock Control Switch Terminal Specifications (Master Switch)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Driver's Door Lock Control Switch Terminals (Master Switch)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
W/ Power Window, inspect passenger's door lock control switch continuity .

Fig 3: Identifying Passenger's Door Lock Control Switch Terminals (W/ Power Window)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Passenger's Door Lock Control Switch Specifications (W/ Power Window)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
W/O power window, inspect passenger's door lock control switch continuity .

Fig 5: Identifying Passenger's Door Lock Control Switch Terminals (W/O Power Window)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Passenger's Door Lock Control Switch Specifications (W/O Power Window)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
Inspect door key lock and unlock switch continuity .

Fig 7: Identifying Door Key Lock & Unlock Switch Terminals & Switch Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Door Key Lock & Unlock Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

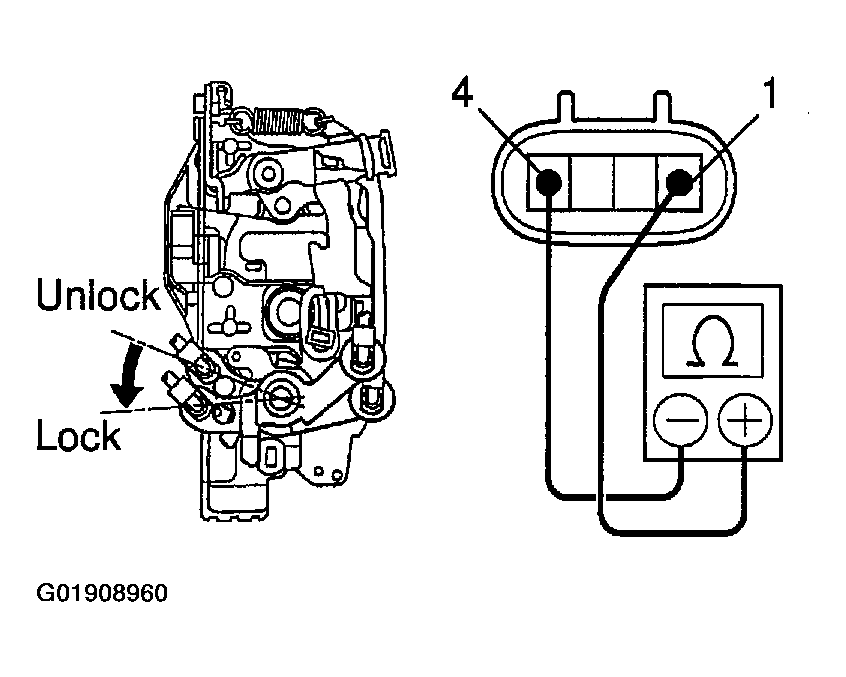

Inspect driver's door unlock detection switch continuity .

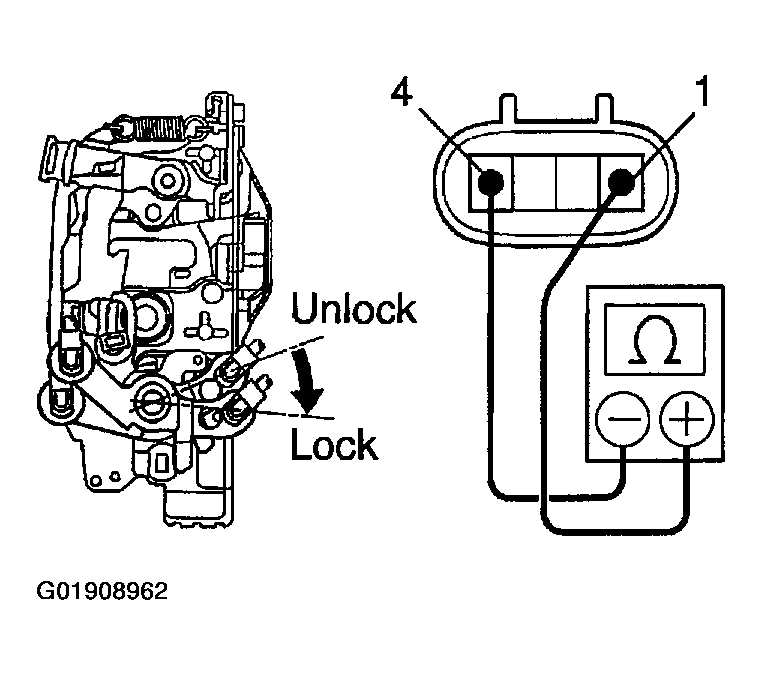

Fig 9: Identifying Driver's Door Unlock Detection Switch Terminals & Test Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Driver's Door Unlock Detection Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

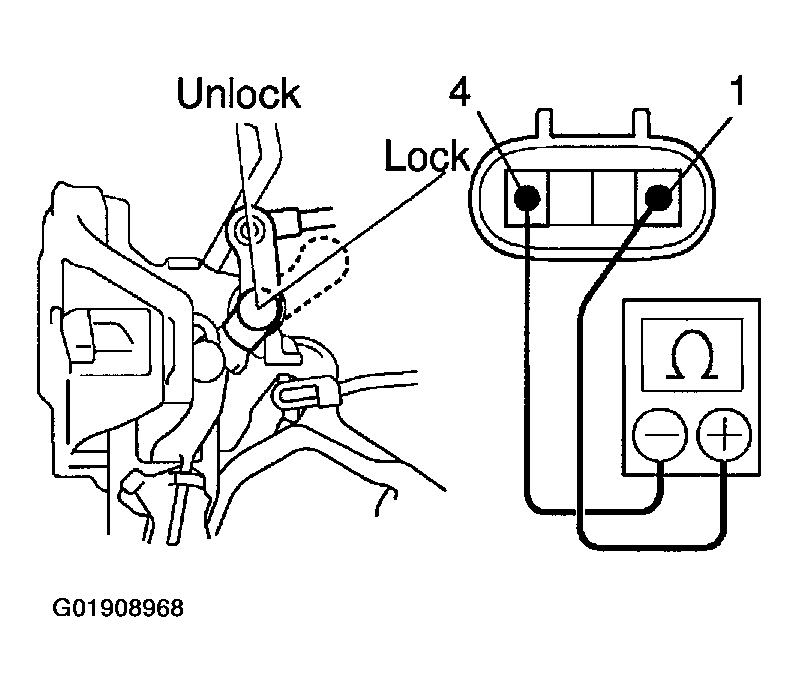

Inspect passenger's door unlock detection switch continuity .

Fig 11: Identifying Passenger's Door Unlock Detection Switch Terminals & Test Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Passenger's Door Unlock Detection Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

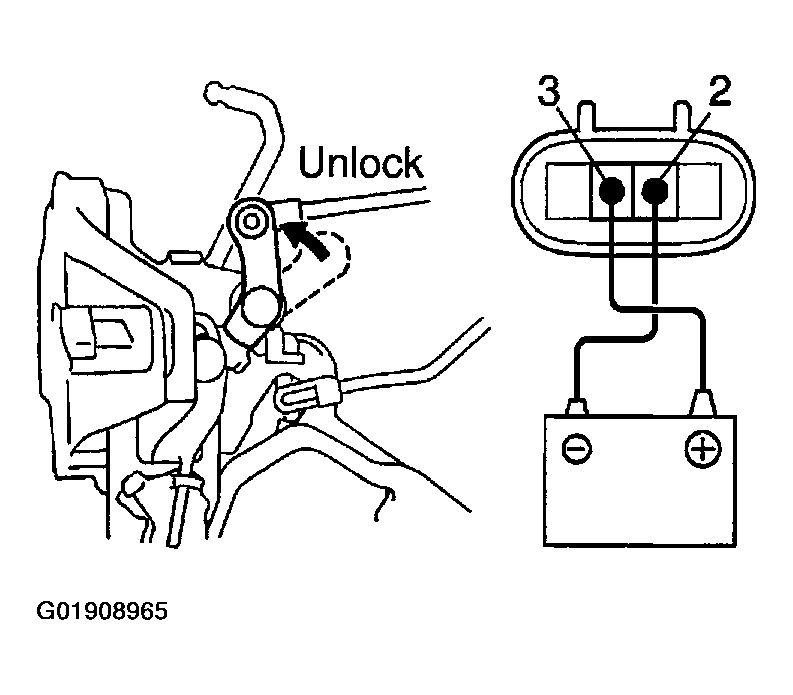

Inspect front door lock motor operation .
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

  Fig 13: Testing Front Door Lock Motor (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

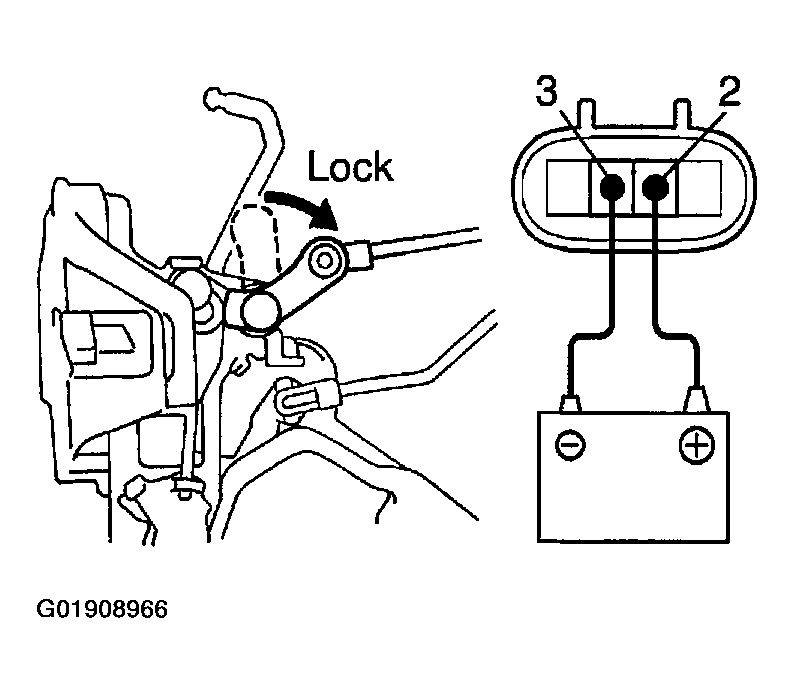

2. Remove the polarity and check that the door lock link moves to LOCK position.

  Fig 14: Testing Front Door Lock Motor (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the operation is not as specified, replace the door lock assembly.

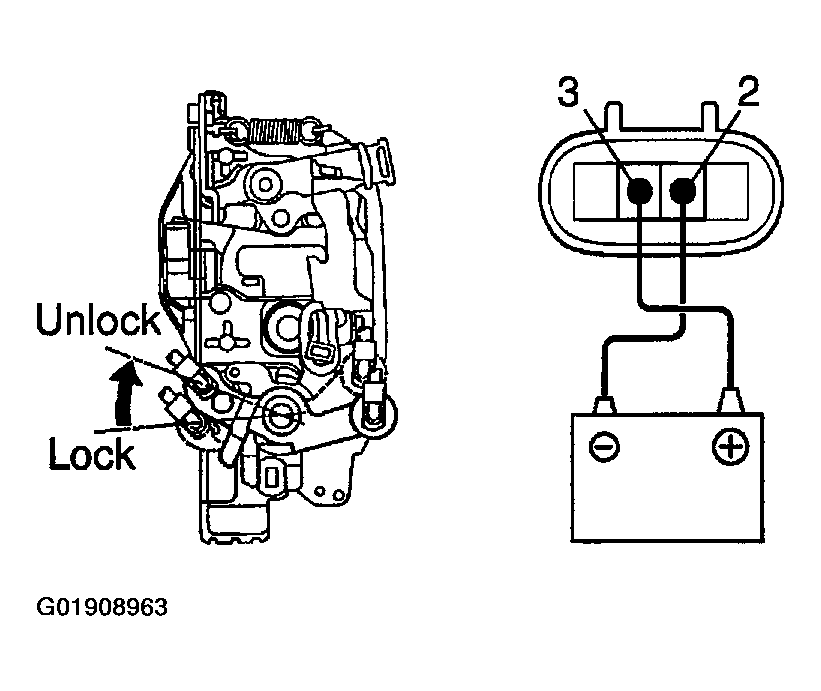

Inspect rear door lock motor operation .
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock moves to UNLOCK position.

  Fig 15: Testing Rear Door Lock Motor (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

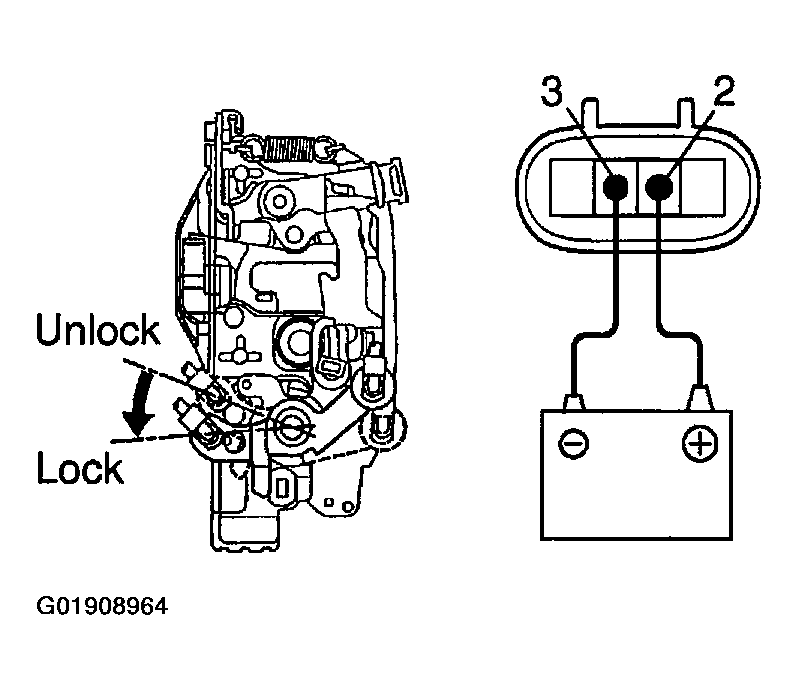

2. Remove the polarity and check that the door lock link moves to LOCK position.
  If the operation is not as specified, replace the door lock assembly.

  Fig 16: Testing Rear Door Lock Motor (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect rear door unlock detection switch continuity .

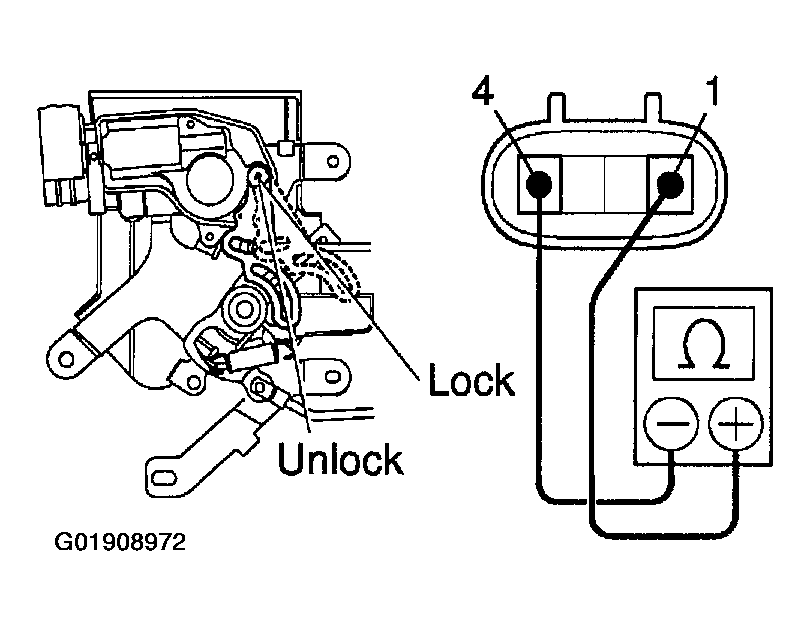

Fig 17: Rear Door Unlock Detection Switch Terminals & Test Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Rear Door Unlock Detection Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

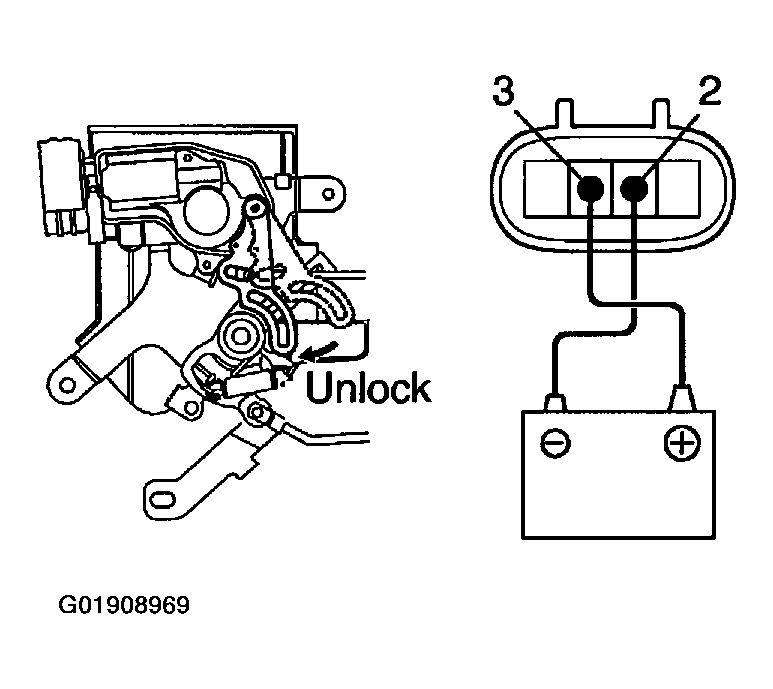

Inspect back door lock motor operation .
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

  Fig 19: Testing Back Door Lock Motor (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

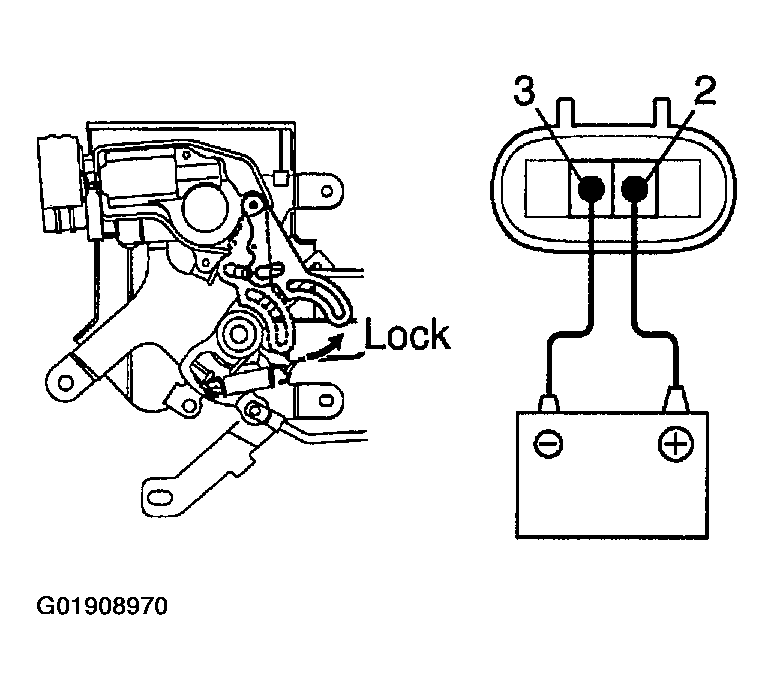

2. Remove the polarity and check that the door lock link moves to LOCK position.

  Fig 20: Testing Back Door Lock Motor (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the operation is not as specified, replace the door lock assembly.
Inspect back door unlock detection switch continuity .

Fig 21: Back Door Unlock Detection Switch Terminals & Test Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Back Door Unlock Detection Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
