Driver's Door/All Doors Unlock Selection

The RS3200 is factory-set to unlock the driver's door when the UNLOCK button is pressed on the remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3 seconds. You may change the programming so all doors will unlock at once when the UNLOCK button is pressed by following the steps below.

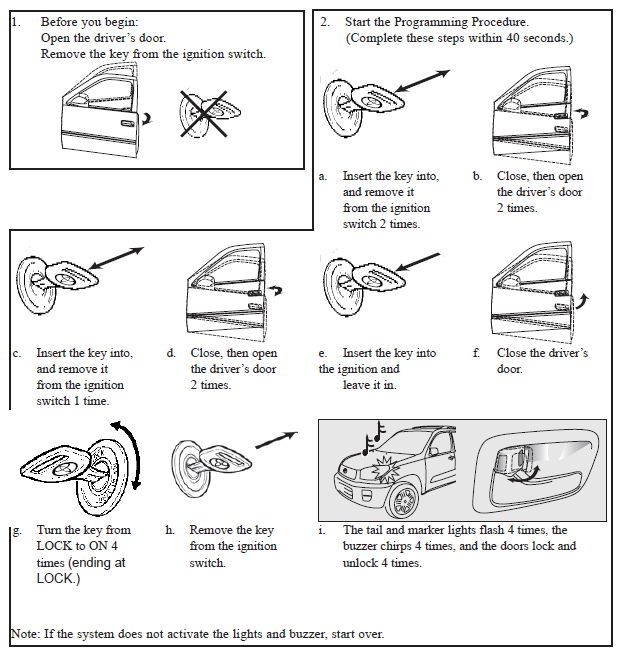

Fig 1: Driver's Door/All Doors Unlock Selection - Programming Procedure (1 Of 2)
G06743130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

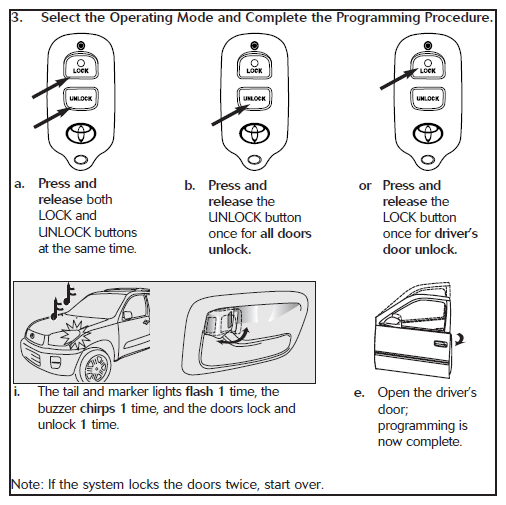

Fig 2: Driver's Door/All Doors Unlock Selection - Programming Procedure (2 Of 2)
G06743131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
