Wireless Door Lock Control System: Adjustment

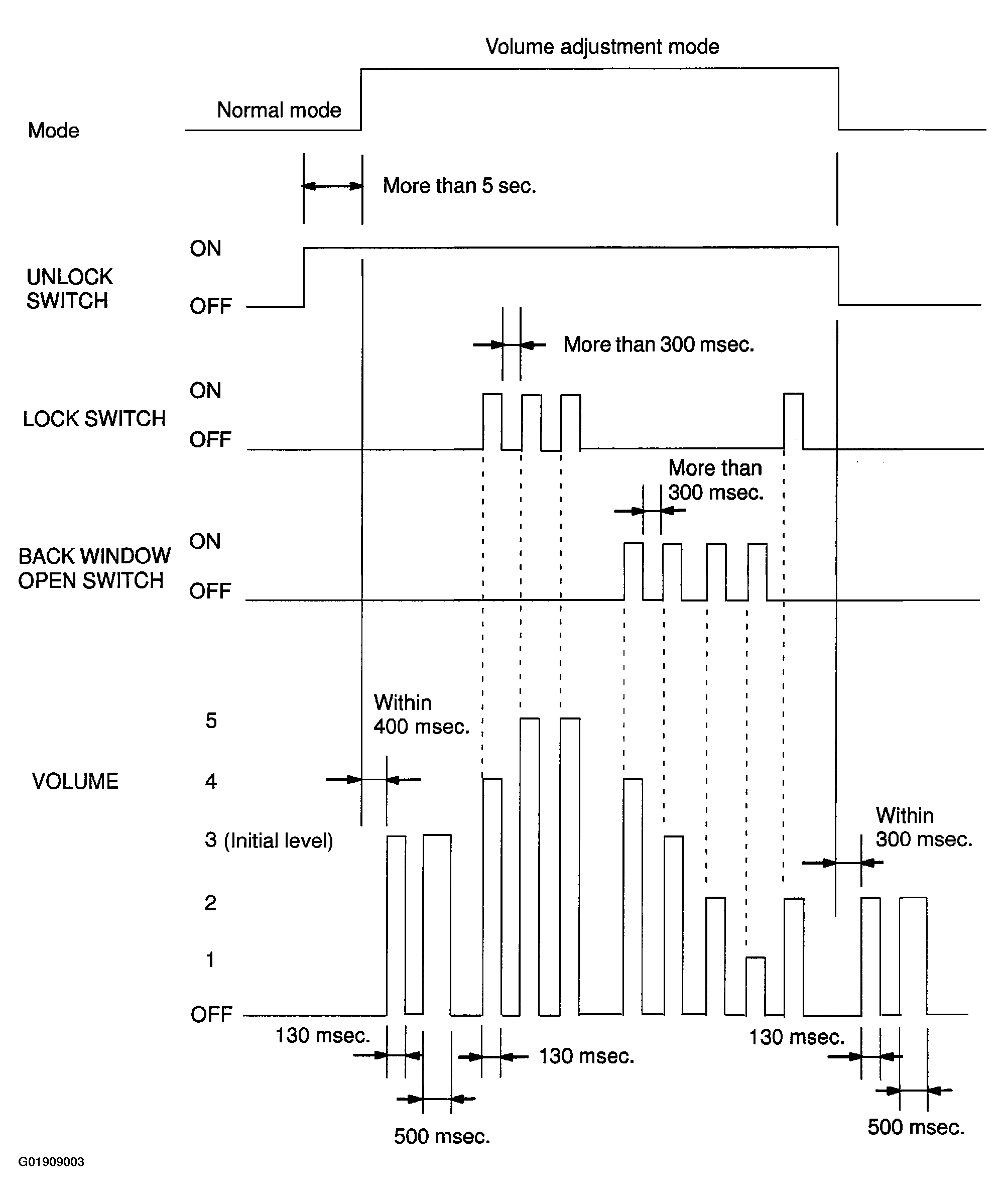

Fig 1: Adjusting Wireless Door Lock Buzzer Volume

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: System Component Reference Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
