Test A: Active TRAC Indicator Light Circuit
›
Testing Procedure
Testing Procedure
For Wiring Diagram, see
Fig 1
. For testing procedure see
Fig 2
and
Fig 3
.

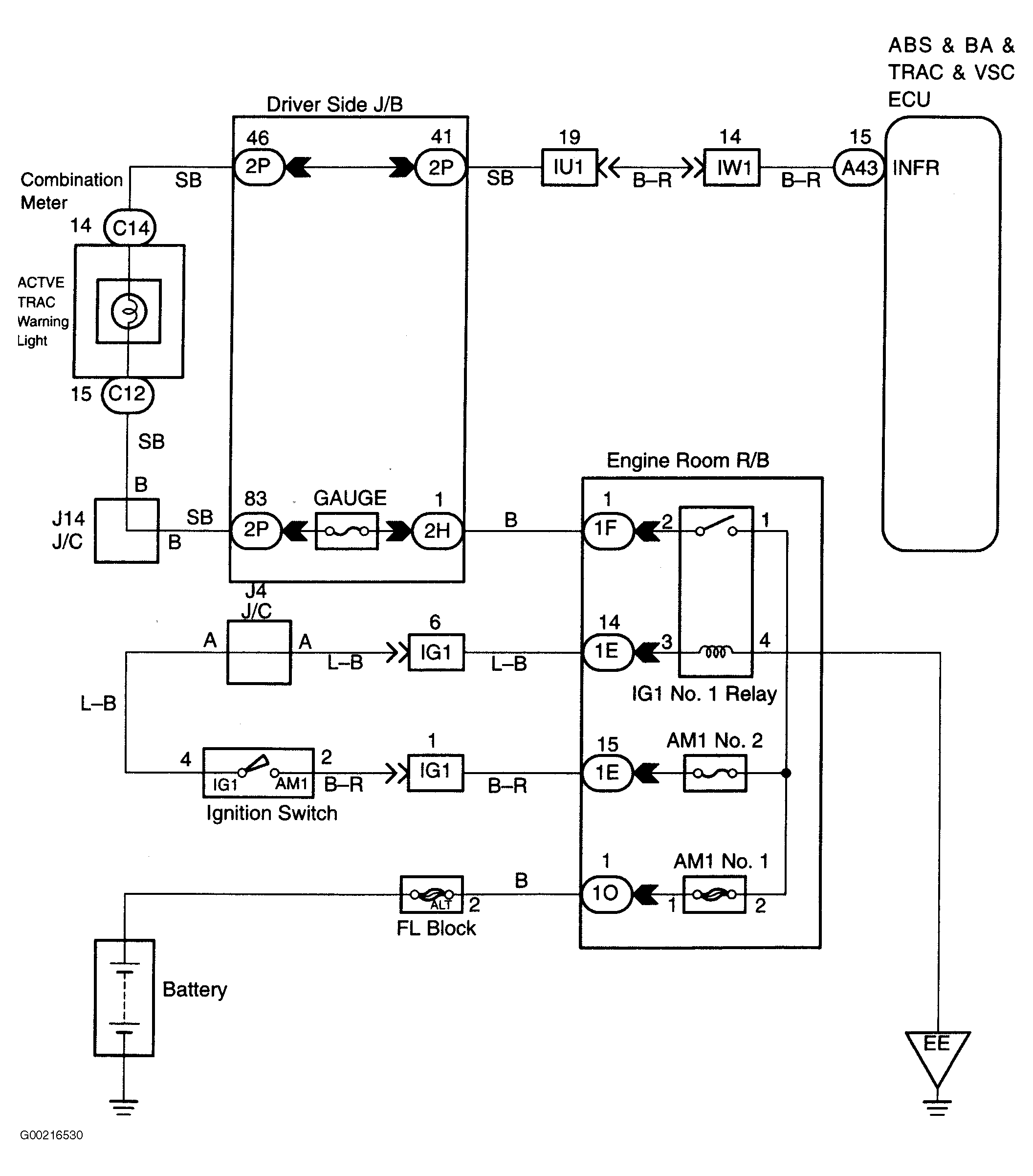

Fig 1: ACTIVE TRAC Indicator Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

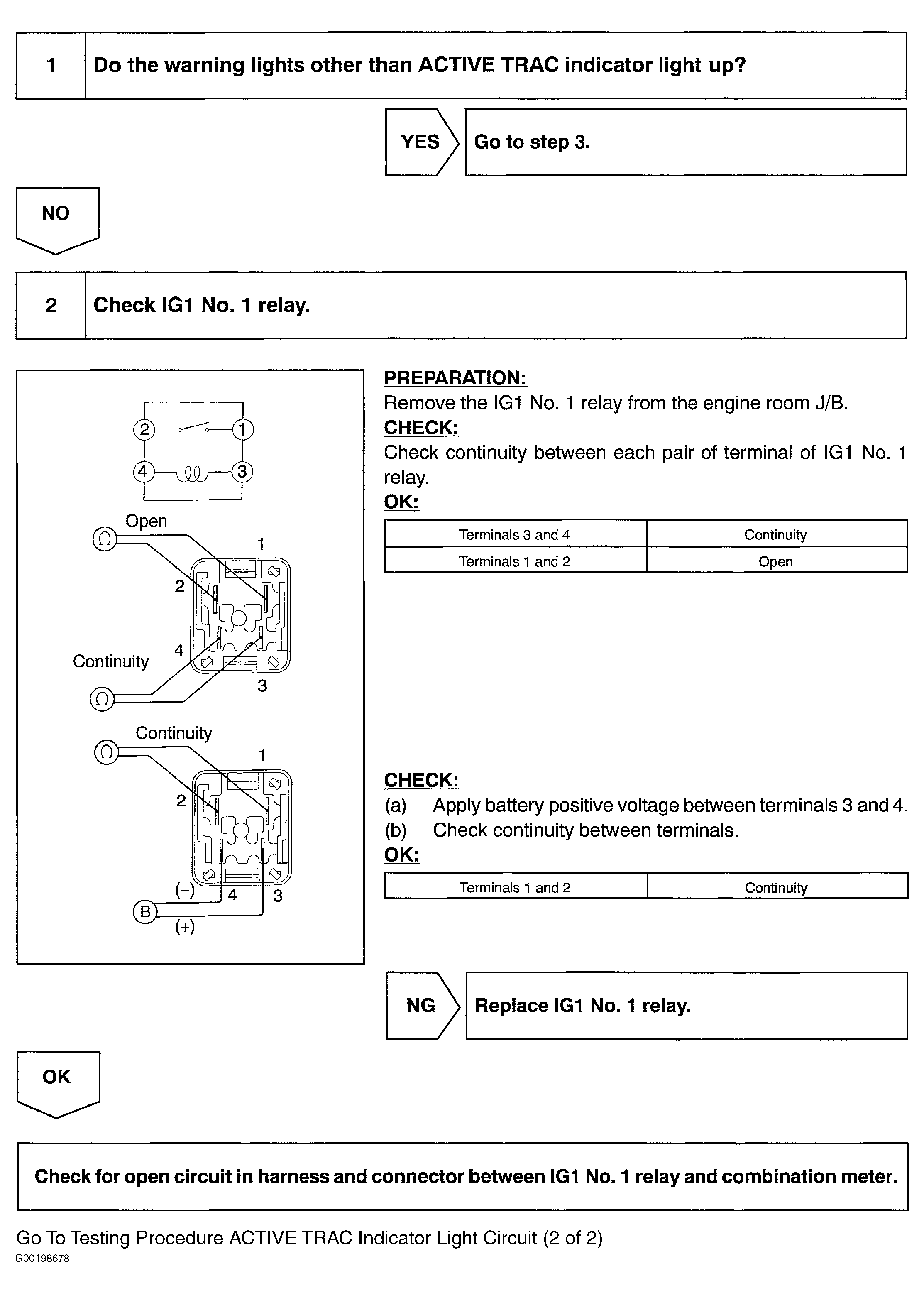

Fig 2: Testing Procedure ACTIVE TRAC Indicator Light Circuit (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

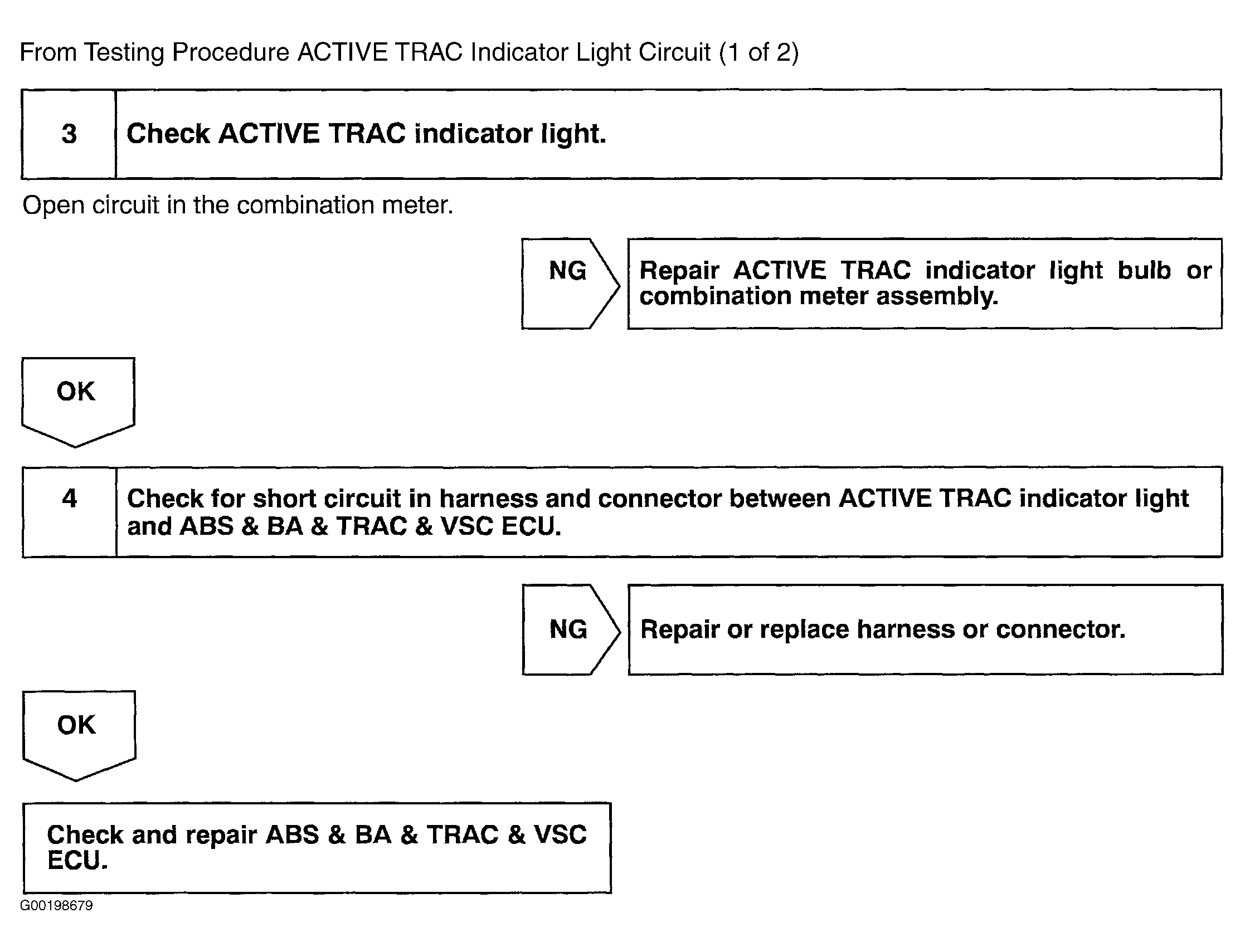

Fig 3: Testing Procedure ACTIVE TRAC Indicator Light Circuit (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
