Toyota
›
2002
›
4Runner Base
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System W/VSC
›
System Testing
›
Test B: DTC Always On, Malfunction In Ecu
›
Testing Procedure
Testing Procedure
For wiring diagram see
Figure
and
Figure
. For testing procedure see
Fig 1
and
Fig 2
.

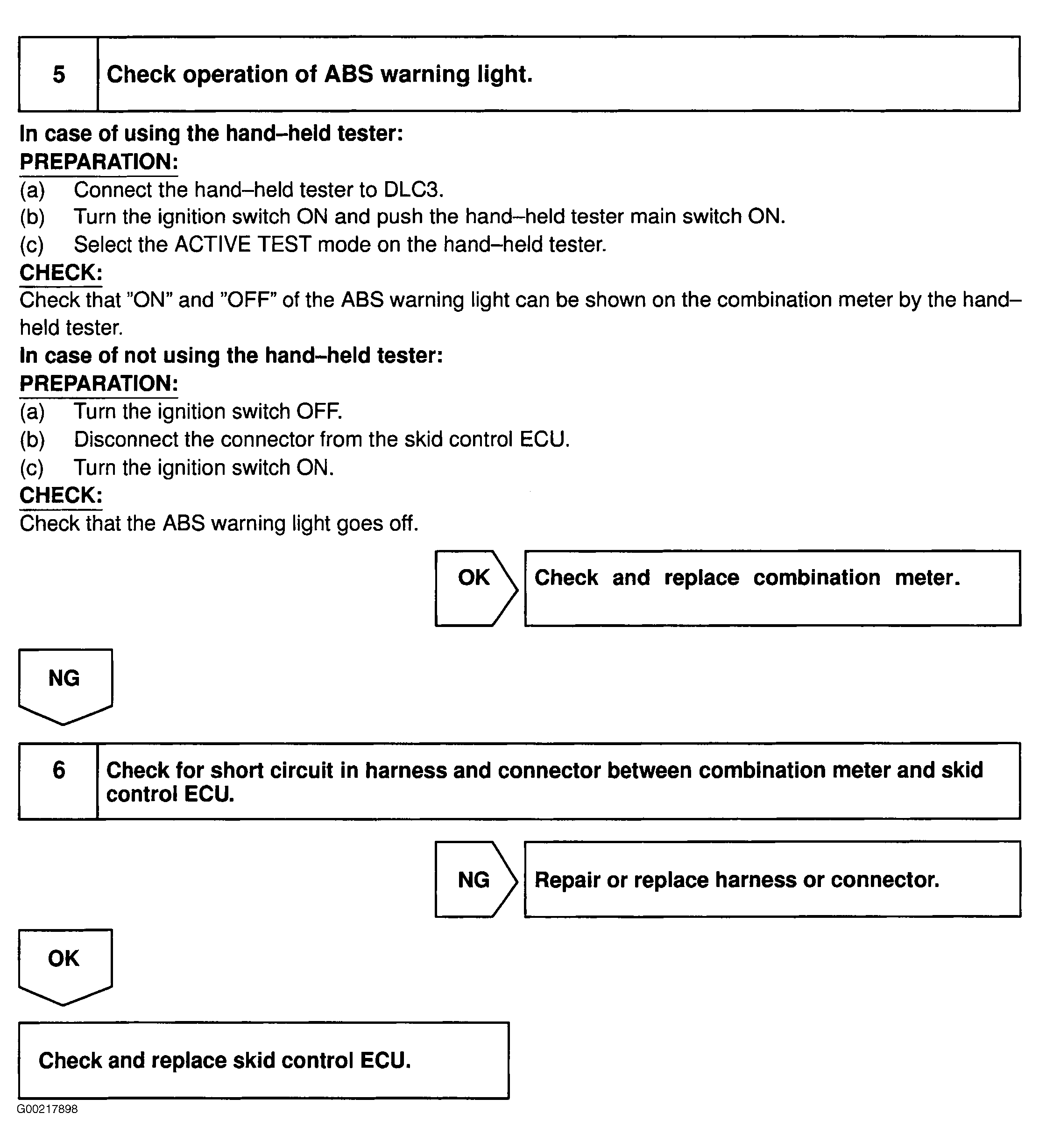

Fig 1: Testing Procedures ABS ECU Malfunction (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

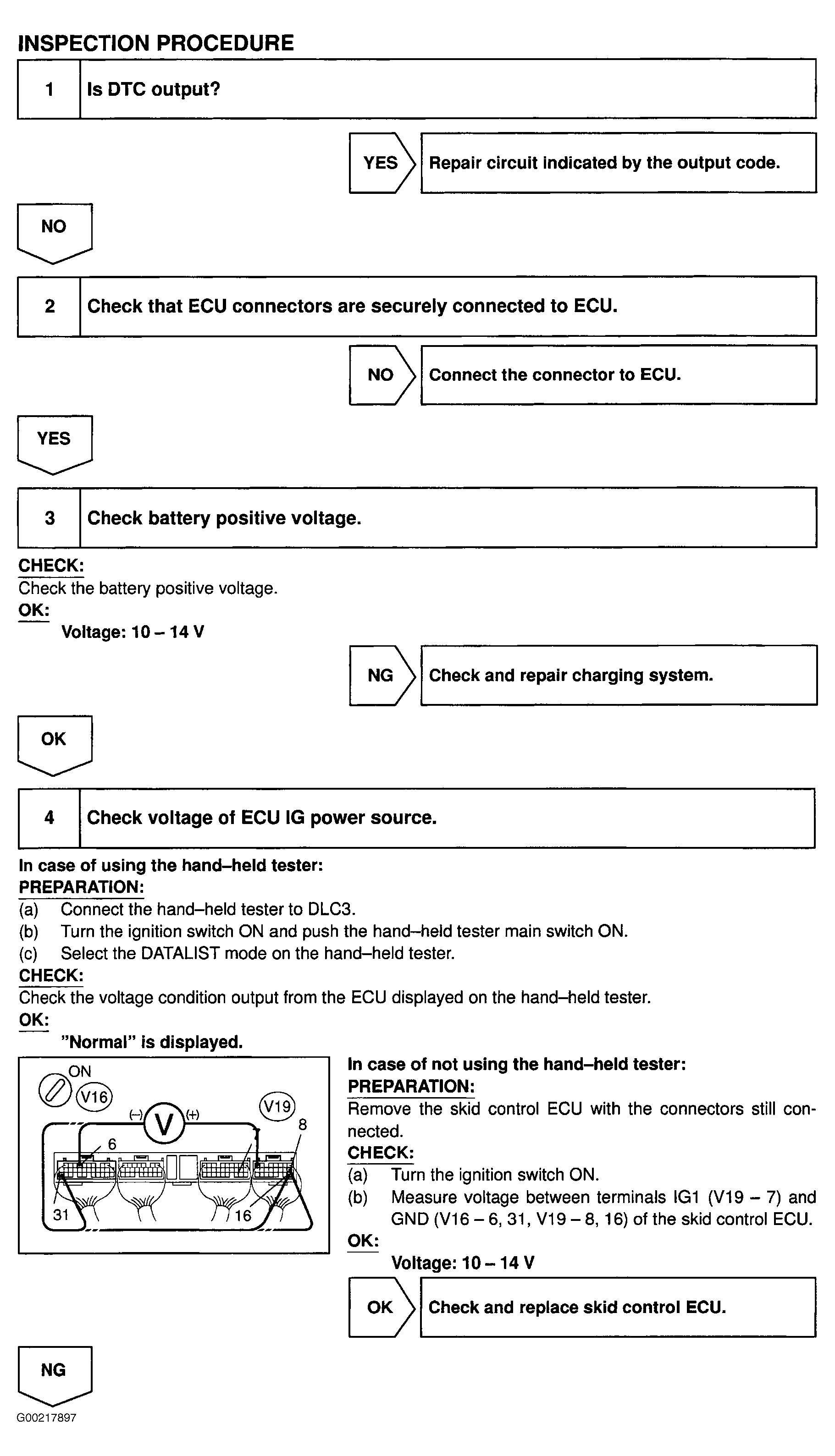

Fig 2: Testing Procedures ABS ECU Malfunction (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
