Toyota
›
2002
›
4Runner Base
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System W/VSC
›
System Testing
›
Test H: TS Terminal Circuit
›
Testing Procedure
Testing Procedure
For wiring diagram see
Figure
. For testing procedure see
Fig 1
.

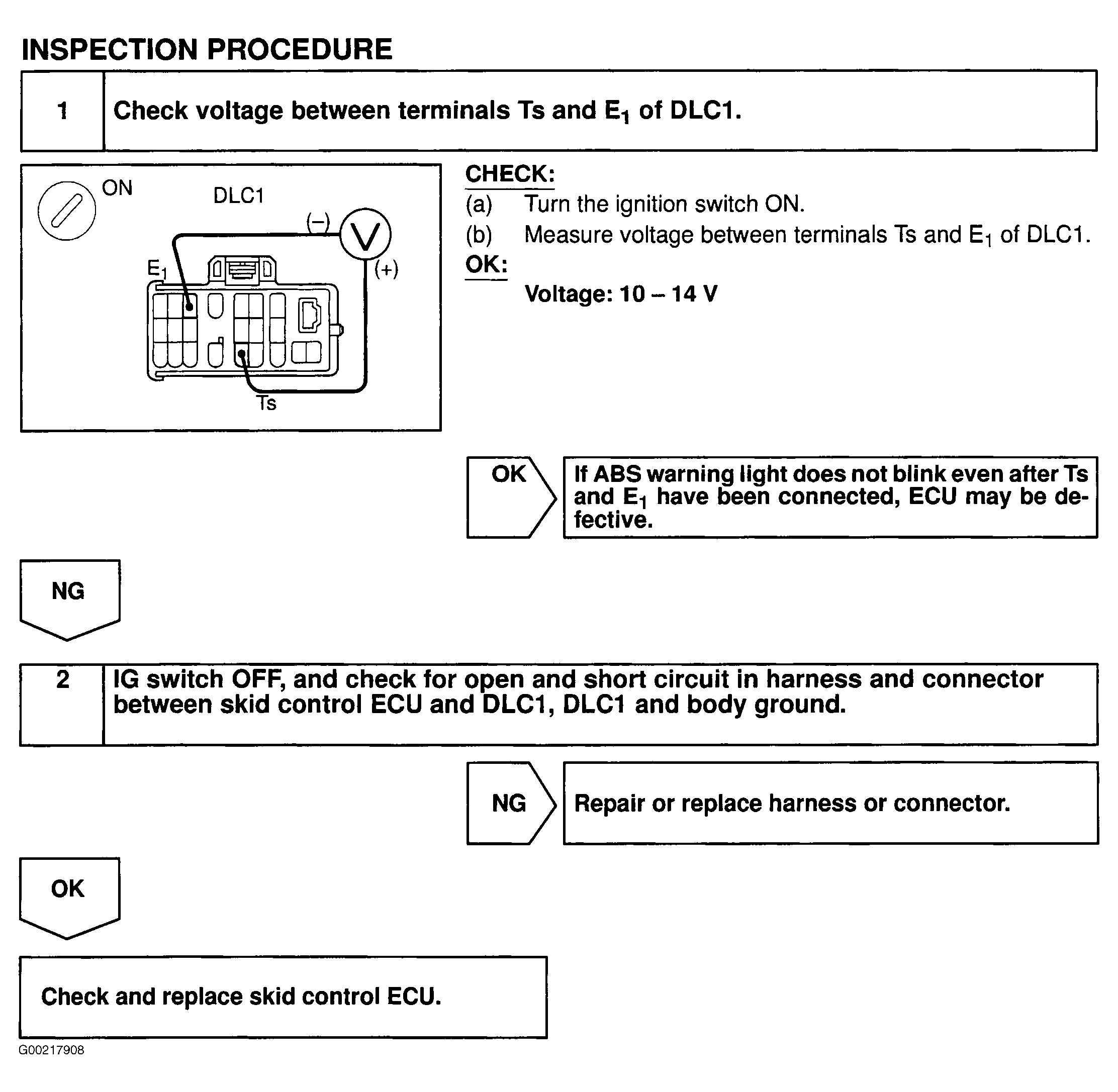

Fig 1: Testing Procedures Ts Terminal Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
