On-Vehicle Inspection

CAUTION:
  • Check that the battery cables are connected to the correct terminals.
  • Disconnect the battery cables when the battery is given a quick charge.
  • Do not perform tests with a high voltage insulation resistance tester.
  • Never disconnect the battery while the engine is running.
  1. CHECK BATTERY ELECTROLYTE LEVEL

    Check the electrolyte quantity of each cell.

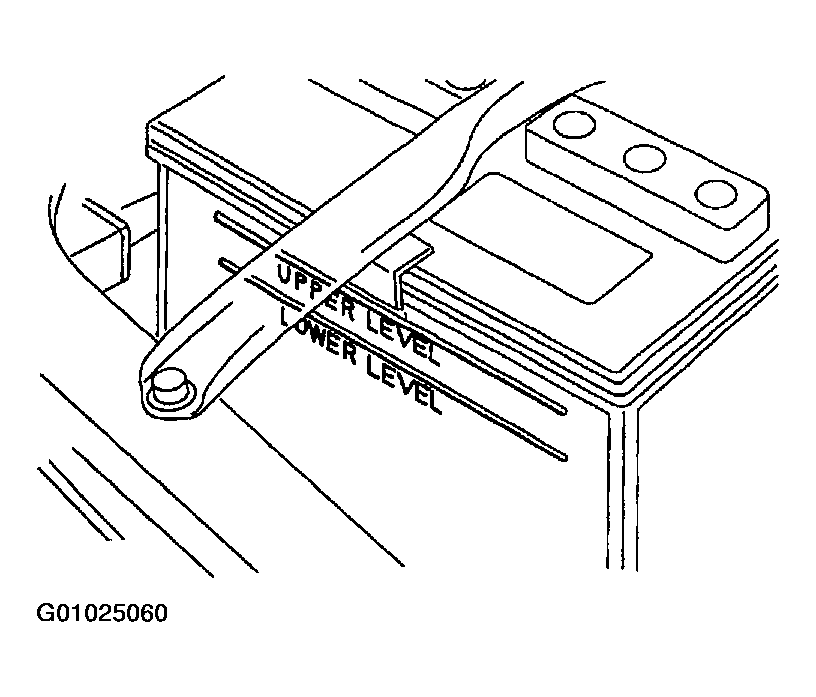

    Fig 1: Checking Electrolyte Level
    G01025060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. (Maintenance-Free Battery)
    2. If under the lower level, replace the battery (or add distilled water if possible) and check the charging system.
    1. (Except Maintenance-Free Battery)
    2. If under the lower level, add distilled water
  2. CHECK BATTERY SPECIFIC GRAVITY (Except Maintenance-Battery)

    Check the specific gravity of each cell.

    1. Standard specific gravity: At 20°C (68°F): 1.25 - 1.29
    2. If the specific gravity is less than specification, charge the battery.

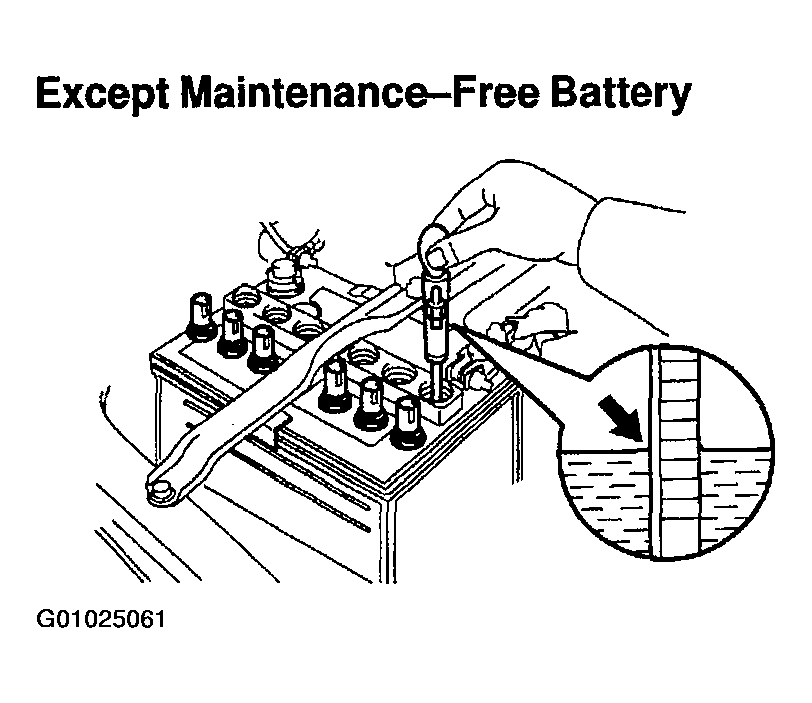

    Fig 2: Checking Specific Gravity Of Each Cell
    G01025061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK BATTERY VOLTAGE (Maintenance-Free Battery)

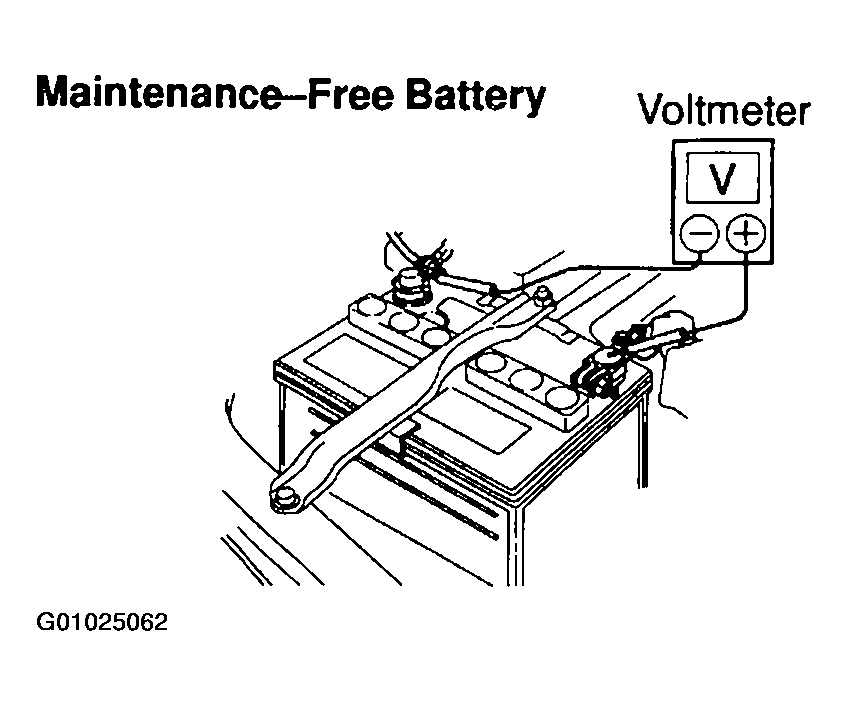

    Fig 3: Checking Battery Voltage
    G01025062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Measure the battery voltage between the negative (-) and positive (+) terminals of the battery.

    1. Standard voltage: At 20°C (68°F): 12.7 - 12.9 V

    HINT:

    • Before measuring the voltage, turn the ignition switch OFF and turn off the electrical systems (headlight, blower motor, rear defogger etc.) for 60 seconds to remove the surface charge.
    • When measuring the voltage, however, turn the ignition switch OFF and turn off the electrical systems.

    If the voltage is less than the specification, charge the battery.

    1. HINT:
    2. Check the indicator as shown in the illustration.
    Fig 4: Checking Indicator To Determine Battery Status
    G01025063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CHECK BATTERY TERMINALS, FUSIBLE LINK AND FUSES
    1. Check that the battery terminals are not loose or corroded.

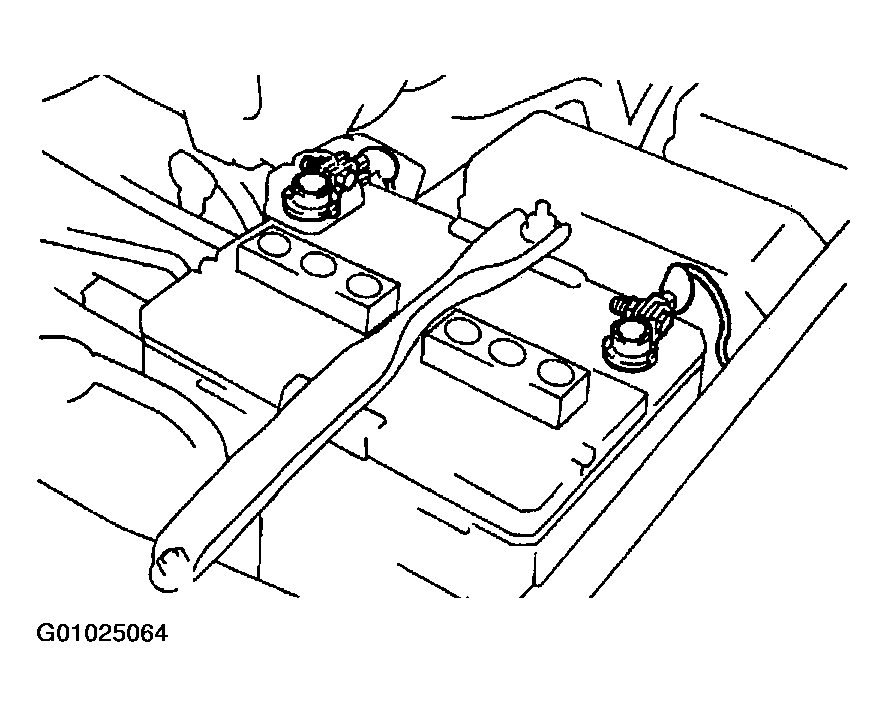

      Fig 5: Identifying Battery Terminals
      G01025064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the fusible link and fuses for continuity.
  5. INSPECT DRIVE BELT
    1. Visually check the belt for excessive wear, frayed cords etc.
      Fig 6: Checking Drive Belt For Excessive Wear & Frayed Cords
      G01025065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. HINT:
      2. Cracks on the ribbed side of the belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
    2. Using a belt tension gauge, check the drive belt tension.
      Fig 7: Checking Drive Belt Tension Using Belt Tension Gauge
      G01025066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Belt tension gauge: Nippondenso BTG 20 (95506-00020) or Borroughs No. BT-33-73F
      2. Drive belt tension: New belt: 160 +/- 20 lbf Used belt: 100 +/- 20 lbf

      If necessary, adjust the drive belt tension.

      1. HINT:
      2. "New belt" refers to a belt which has been used less than 5 minutes on a running engine.
        Fig 8: Checking Drive Belt For Proper Installation
        G01025067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.
      4. After installing the drive belt, check that it fits properly in the ribbed grooves. Check with your hand to confirm that the belt has not slipped out of the groove on the bottom of the crank pulley.
      5. After installing a new belt, run the engine for approx. 5 minutes and then recheck the tension.
  6. INSPECT FUSES FOR CONTINUITY
    • ENGINE 10A
    • CHARGE 7.5A
    • IGN 7.5A
  7. VISUALLY CHECK GENERATOR WIRING AND LISTEN FOR ABNORMAL NOISES
    1. Check that the wiring is in good condition.
    2. Check that there is no abnormal noise from the generator while the engine is running.
  8. CHECK CHARGING CIRCUIT WITHOUT LOAD

    HINT:

    If a battery/generator tester is available, connect the tester to the charging circuit according to the manufactuer's instructions.

    1. If a tester is not available, connect a voltmeter and ammeter to the charging circuit as follows:
      • Disconnect the wire from terminal B of the generator and connect the wire to the negative (-) terminal of the ammeter.
        Fig 9: Connecting Ammeter Or Volt Meter To Generator
        G01025068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Connect the test lead from the positive (+) terminal of the ammeter to terminal B of the generator.
      • Connect the positive (+) lead of the voltmeter to terminal B of the generator.
      • Ground the negative (-) lead of the voltmeter.
    2. Check the charging circuit as follows:

      With the engine running from idling to 2,000 rpm, check the reading on the ammeter and voltmeter.

      1. Standard amperage: 10 A or less
      2. Standard voltage:
      1. At 25°C (77°F): 13.7 - 14.7 V
      2. At 115 °C (239 °F): 13.2 - 14.0 V

      If the voltage reading is greater than the standard voltage, check the voltage regulator, see INSPECTION .

  9. INSPECT CHARGING CIRCUIT WITH LOAD
    1. With the engine running at 2,000 rpm, turn on the high beam headlights and place the heater fan control switch to HI.
    2. Check the reading on the ammeter.
      1. Standard amperage: 30 A or more

      If the ammeter reading is less than 30 A, repair the generator.

      1. HINT:
      2. If the battery is fully charged, the indication will sometimes be less than 30 A
