Water Pump: Components

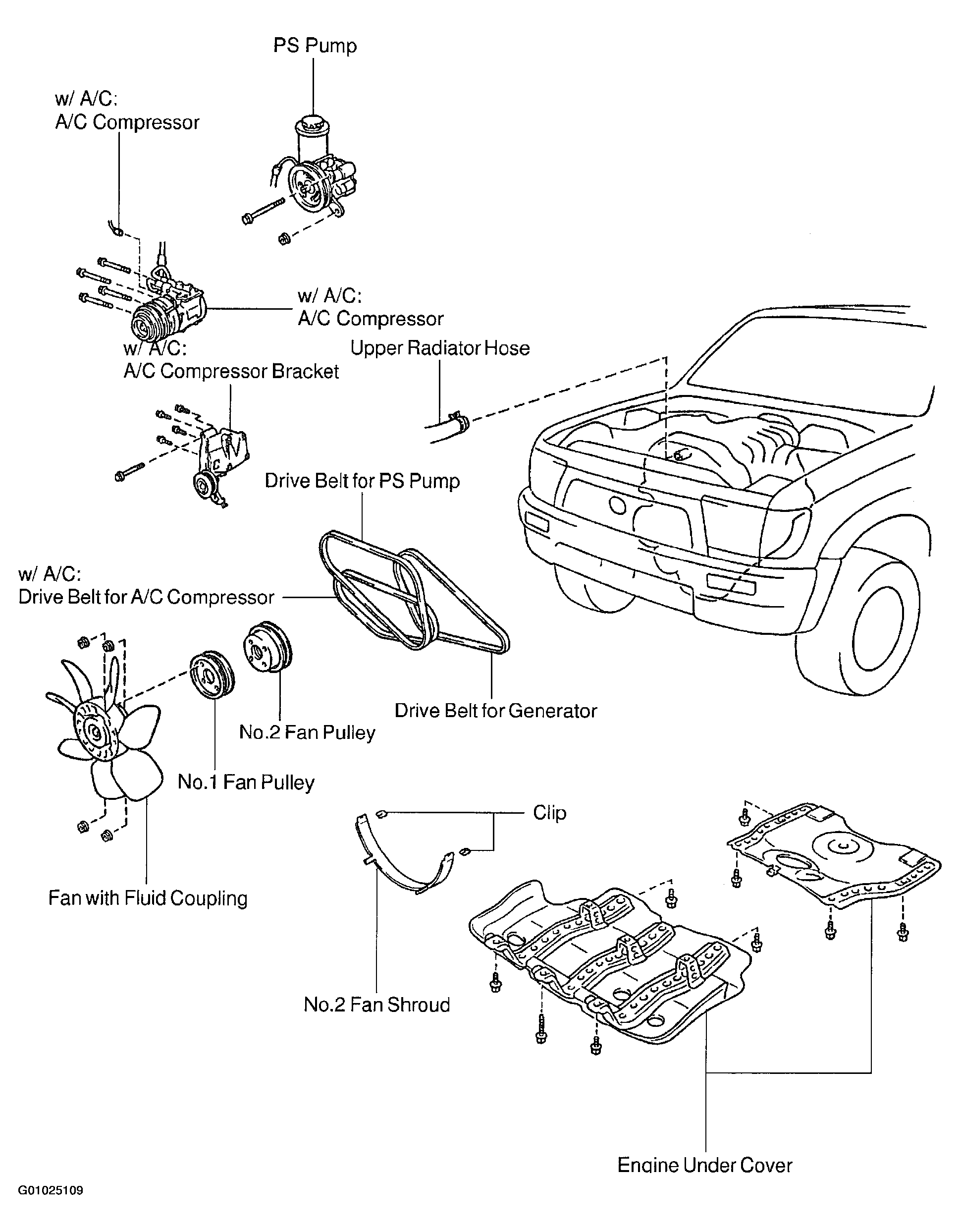

Fig 1: Identifying Components For Water Pump Removal (1 Of 2)
G01025109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

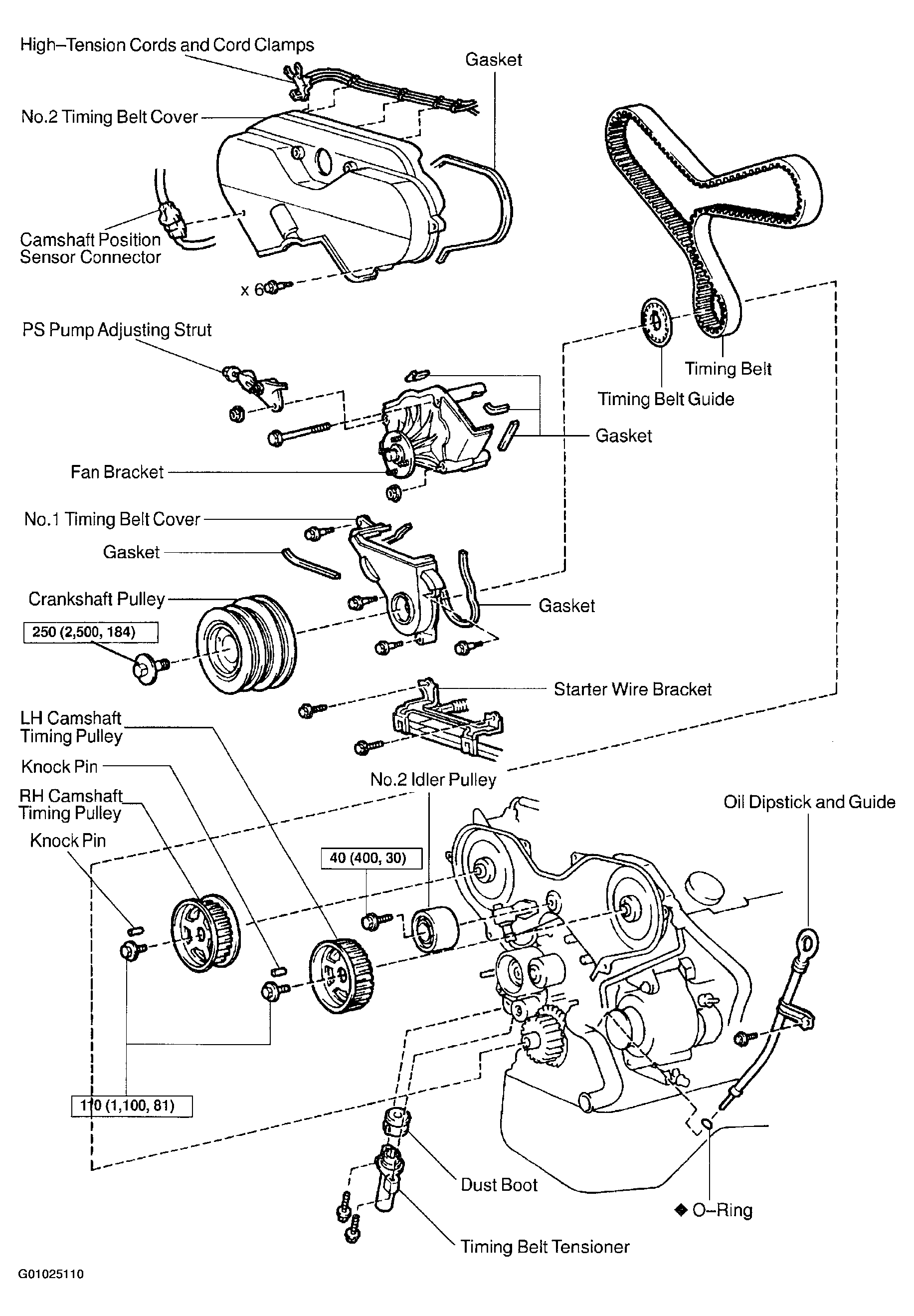

Fig 2: Identifying Components For Water Pump Removal (2 Of 2)
G01025110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

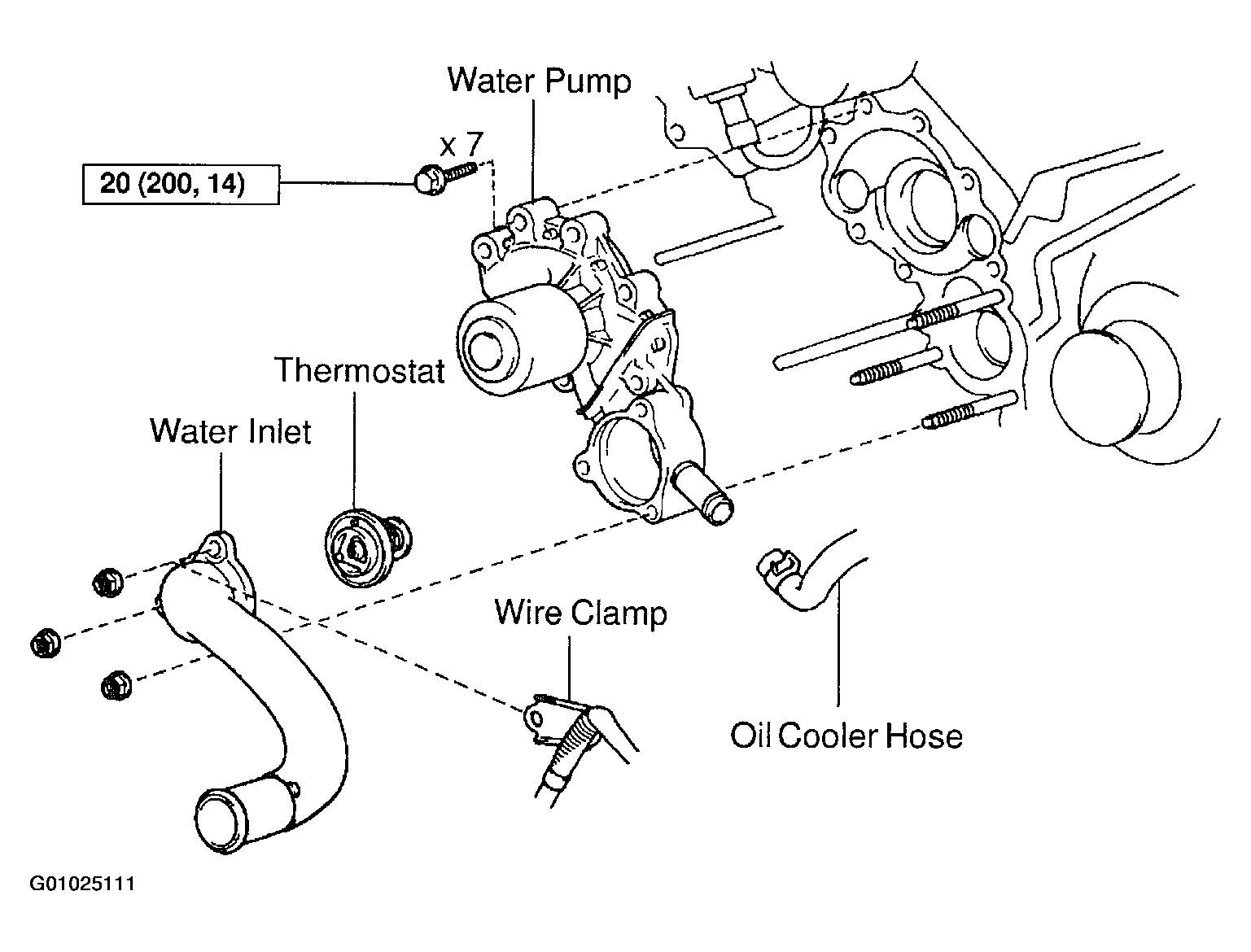

Fig 3: Removing Water Pump
G01025111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
