Exhaust System: Components

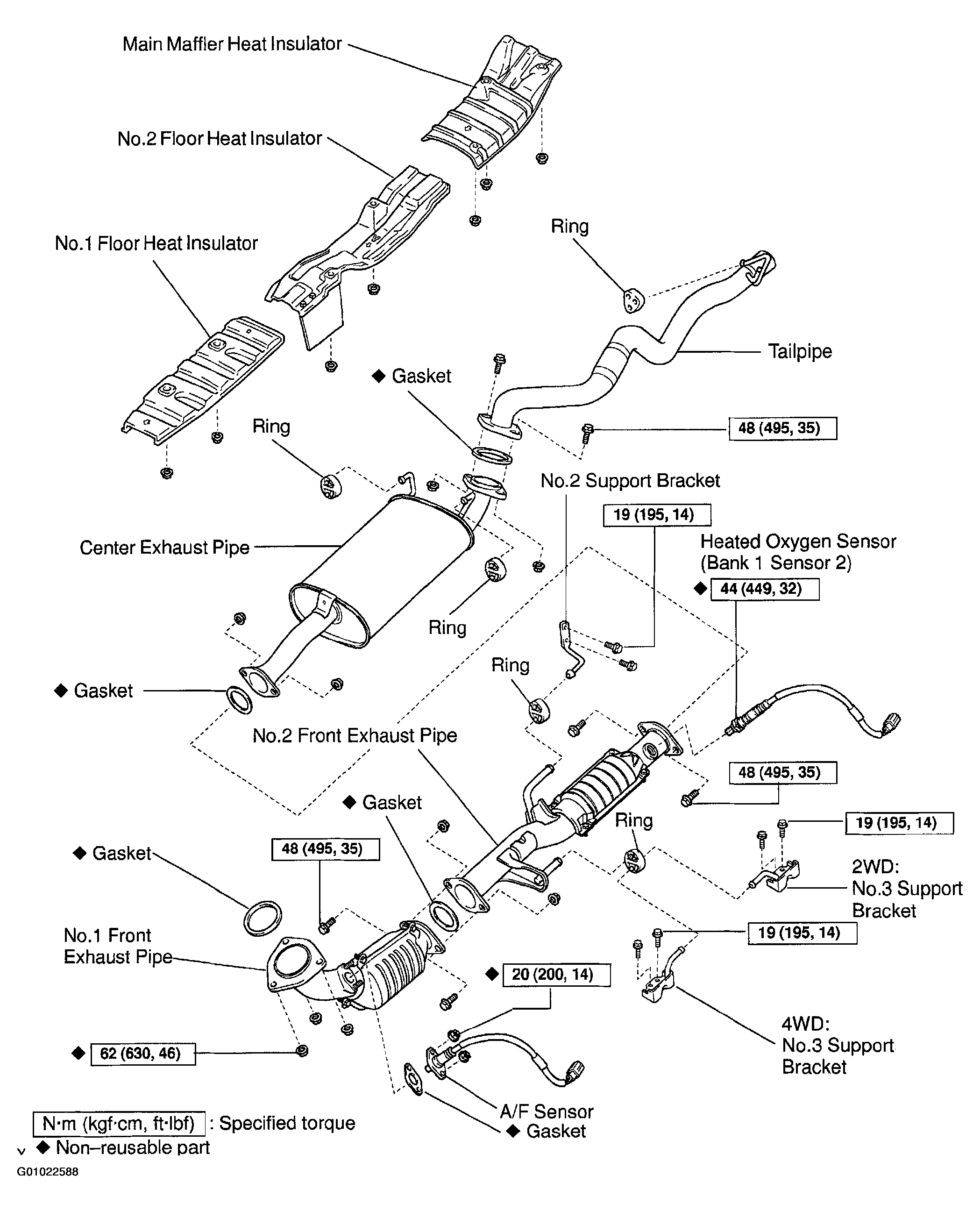

Fig 1: Displaying Exhaust System Components
G01022588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
