Oil Cooler: Removal

  1. Drain engine coolant.
  2. Disconnect oil cooler hoses.

    Disconnect the No.1 and No.2 oil cooler hoses.

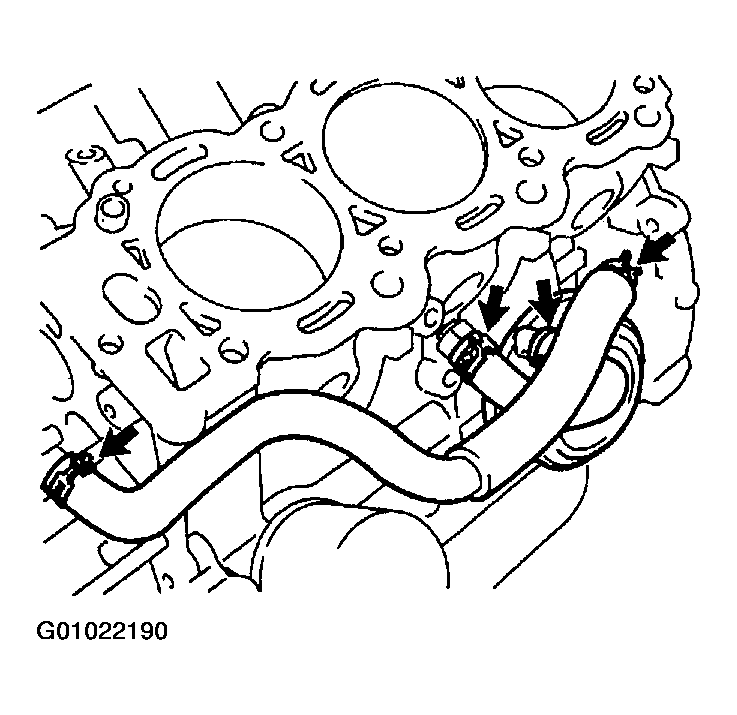

    Fig 1: Disconnecting Oil Cooler Hoses
    G01022190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove oil cooler.

    Remove the union bolt, gaskets, oil cooler and O-ring.

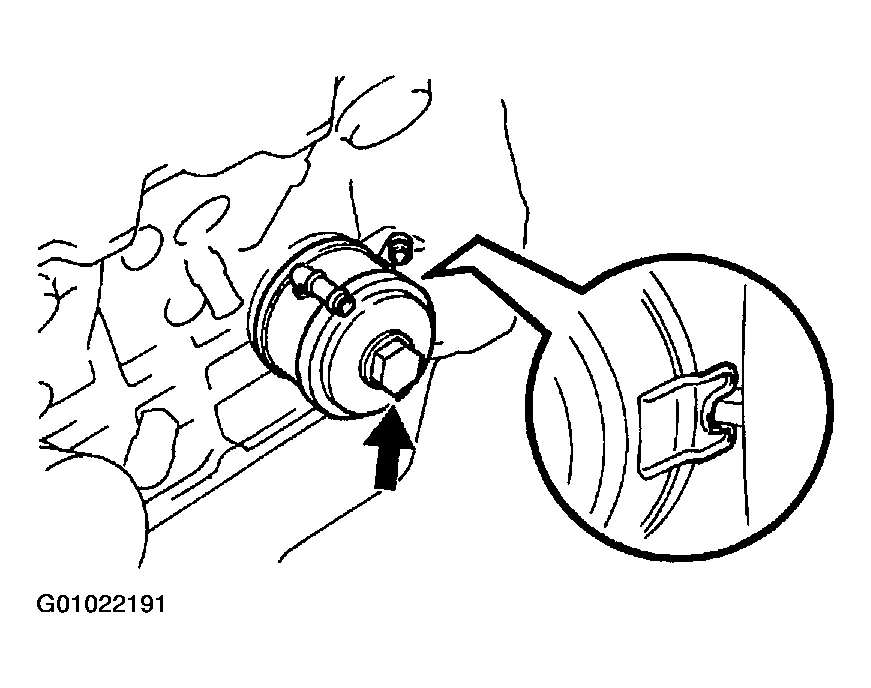

    Fig 2: Removing Oil Cooler
    G01022191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
