Oil Pump: Disassembly

  1. Remove driven and drive rotors.
    1. Remove the 8 screws and pump body cover.
    2. Remove the drive and driven rotors.

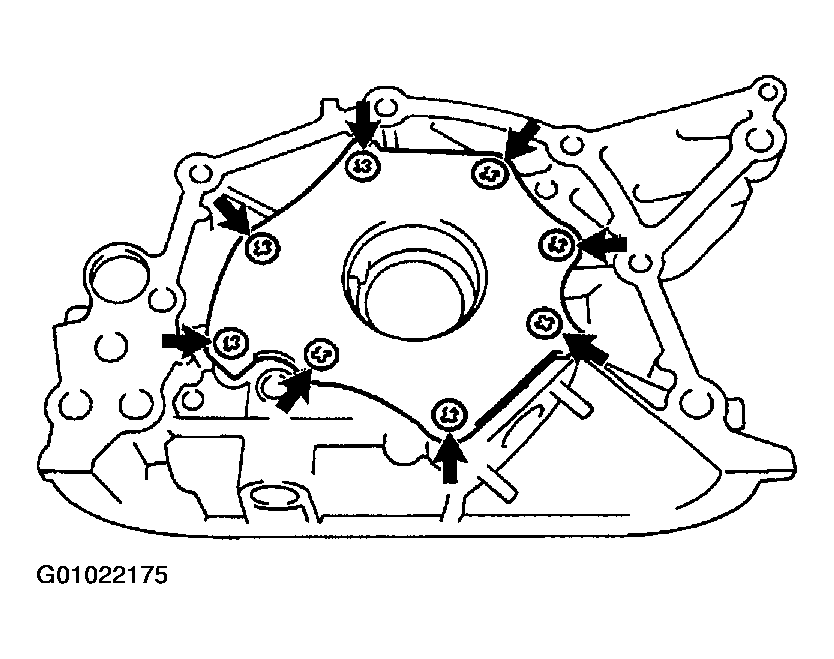

    Fig 1: Locating Screws To Remove Driven & Drive Rotors
    G01022175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove relief valve.
    1. Unscrew the relief valve plug and gasket.
    2. Remove the spring and relief valve.
    Fig 2: Removing Relief Valve
    G01022176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
