Main Switch Circuit (Cruise Control Switch)

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For Main switch circuit testing procedure, see Fig 1 and Fig 2 .

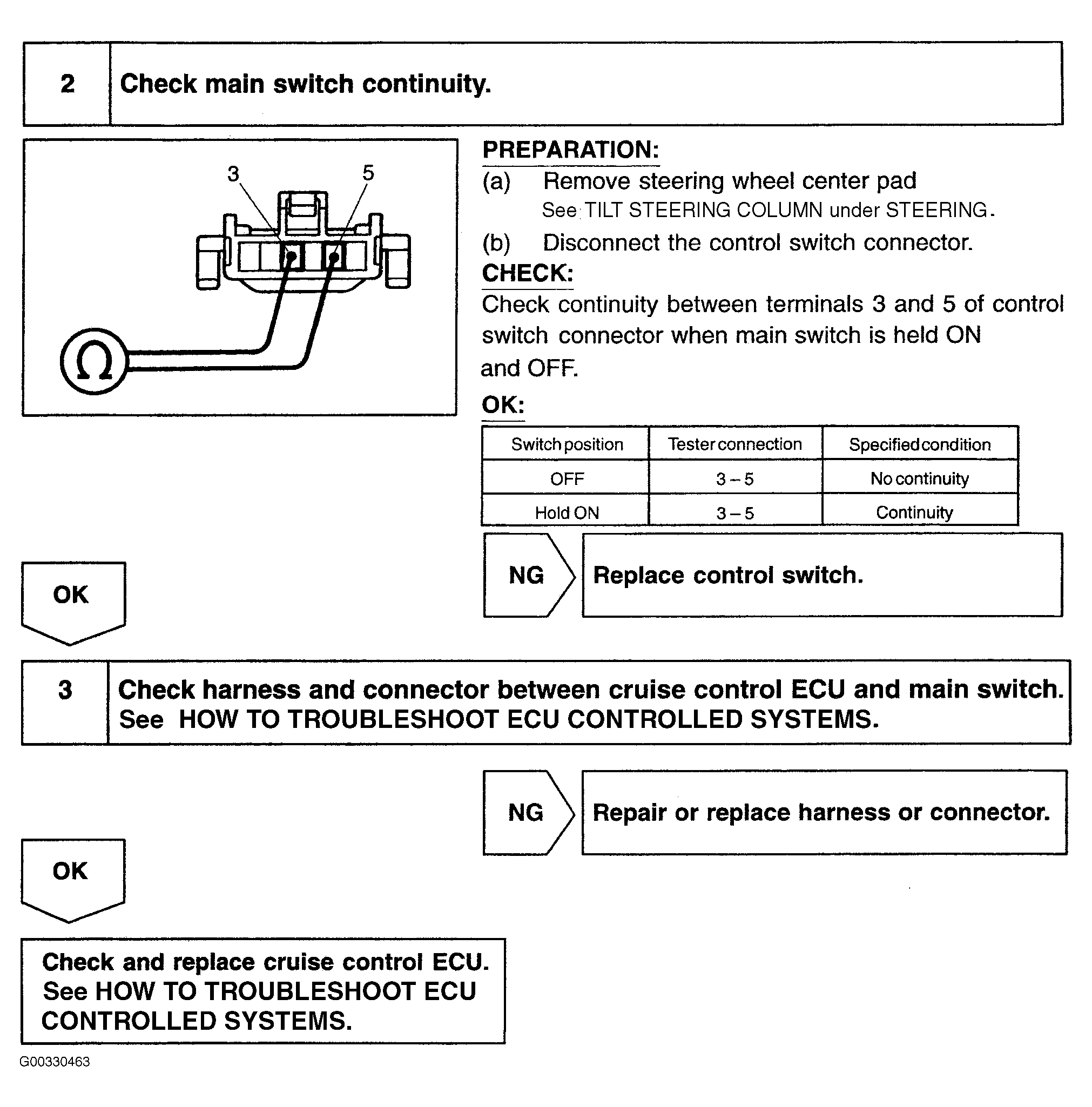

Fig 1: Testing Main Switch Circuit (1 Of 2)
