Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For Stop light switch circuit testing procedure, see Fig 1-Fig 3 .

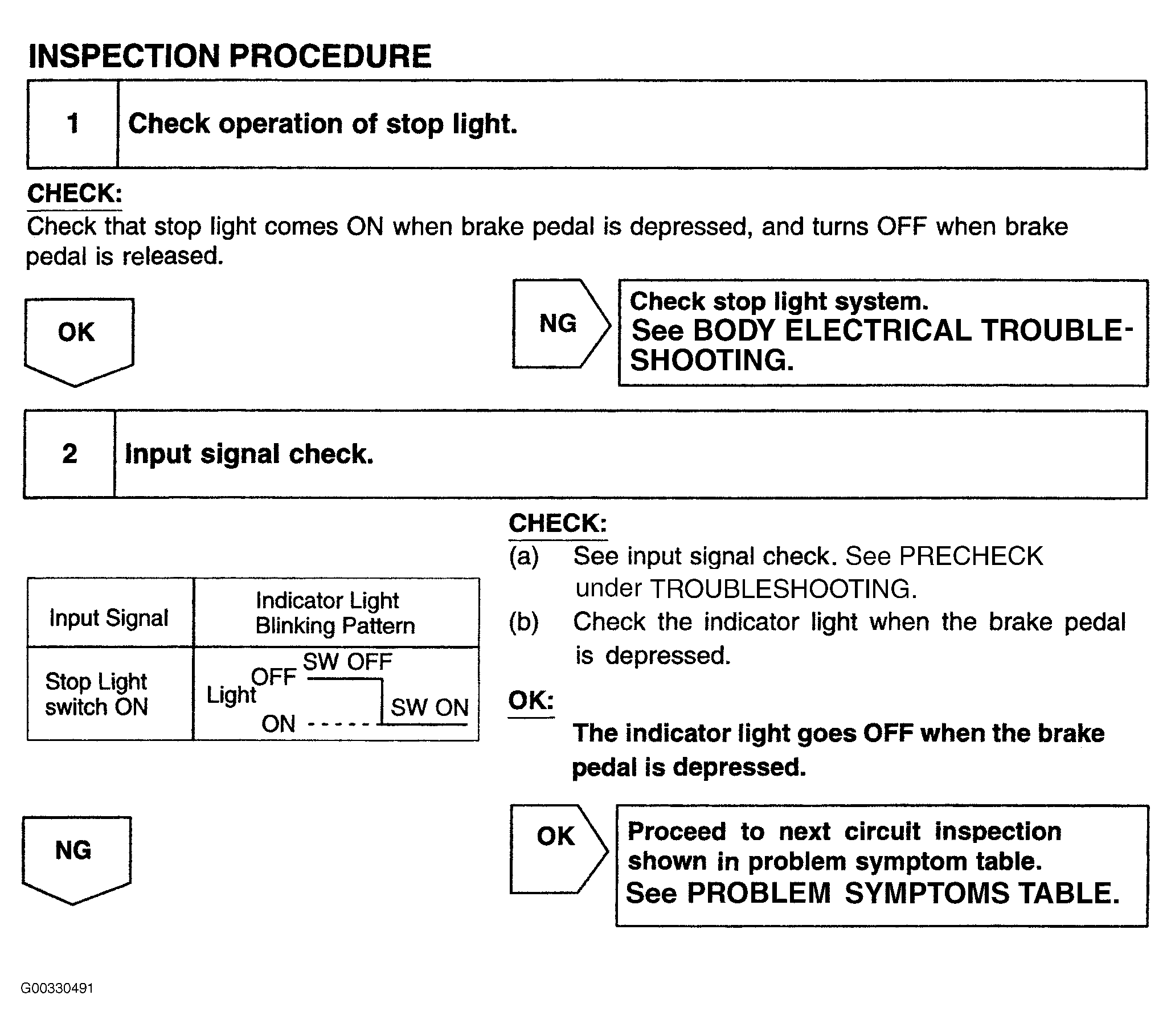

Fig 1: Testing Stop Light Switch Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

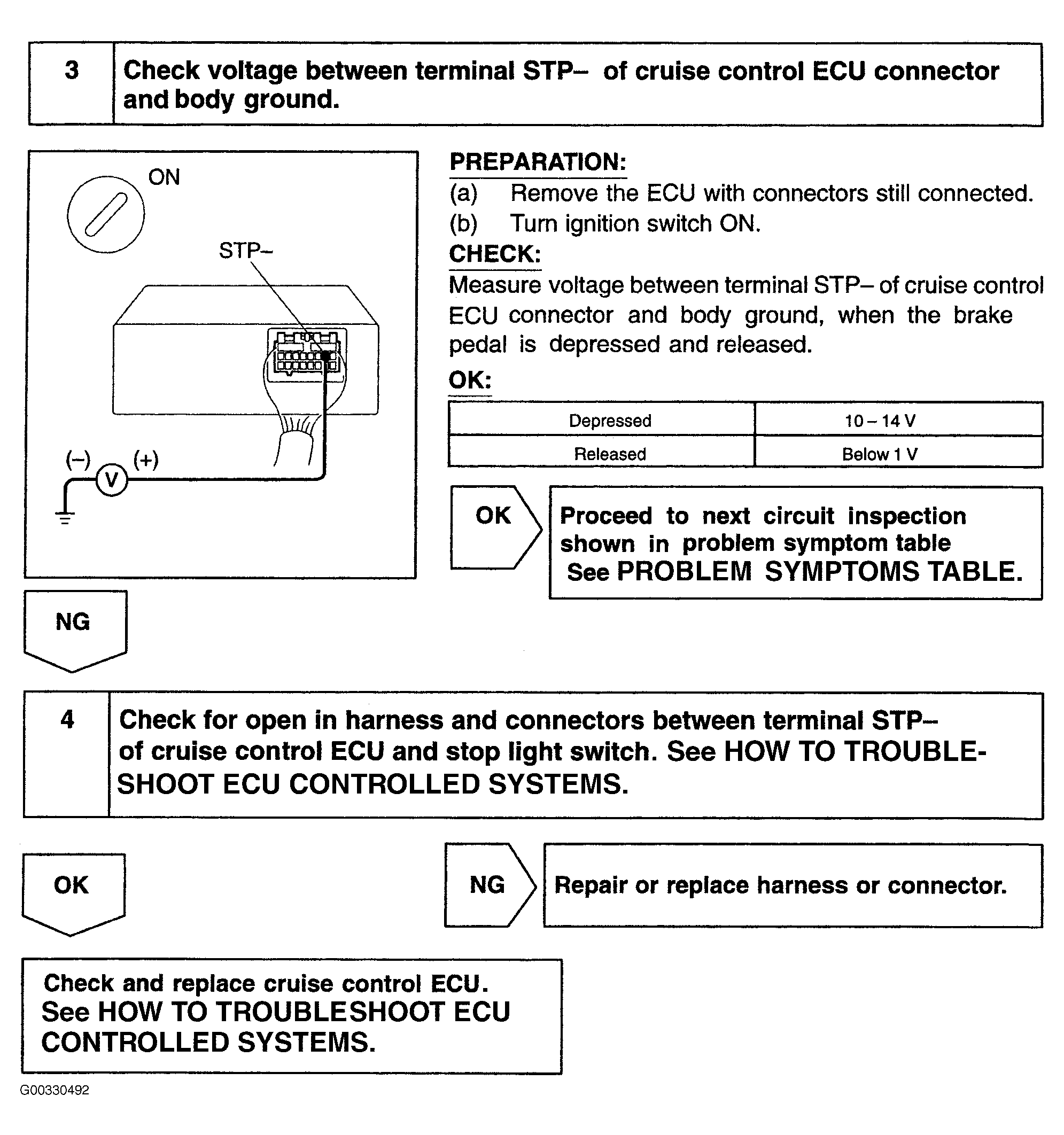

Fig 2: Testing Stop Light Switch Circuit (2 Of 3)

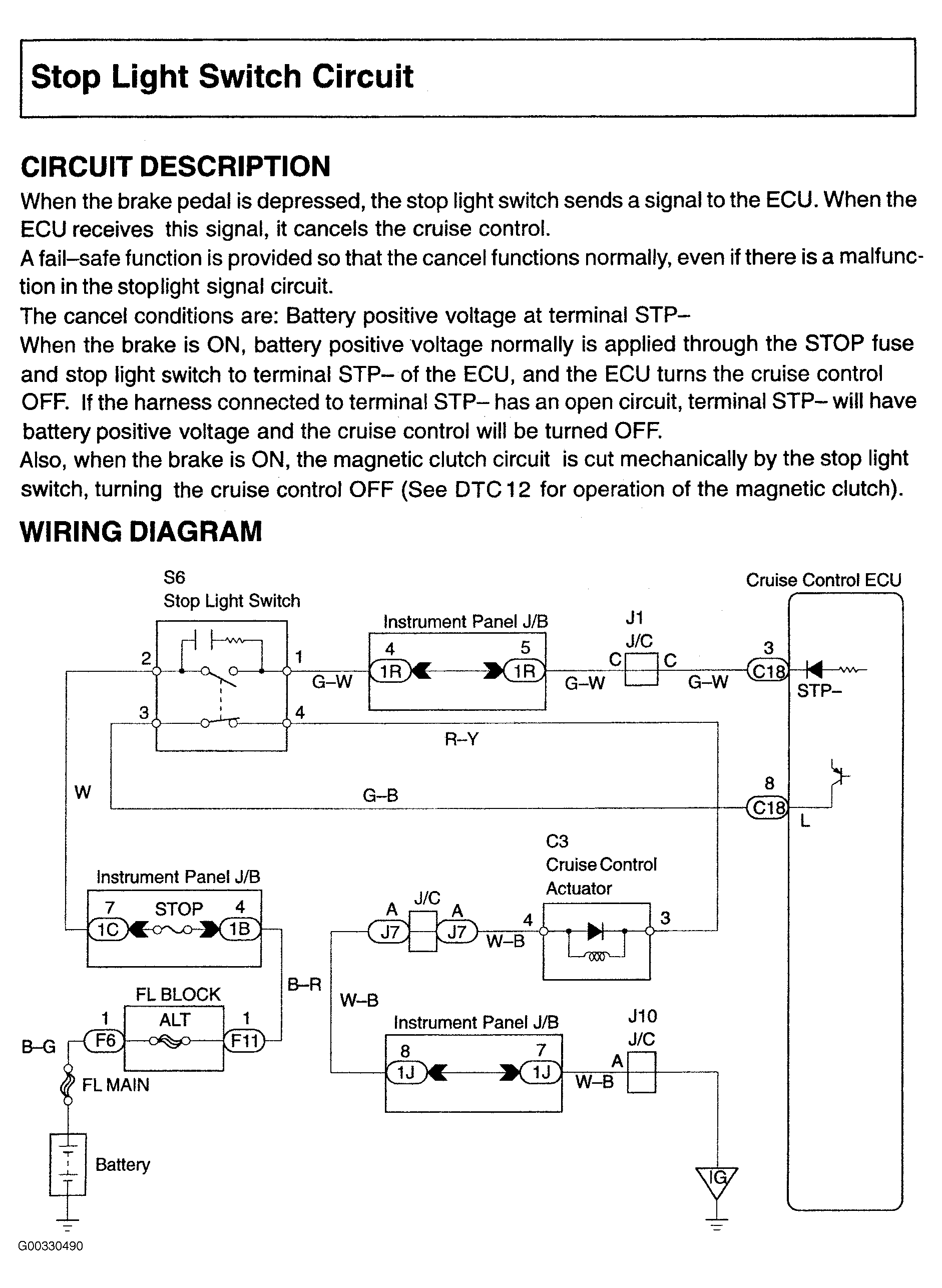

Fig 3: Testing Stop Light Switch Circuit (3 Of 3)
