Power Steering Gear: Components

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

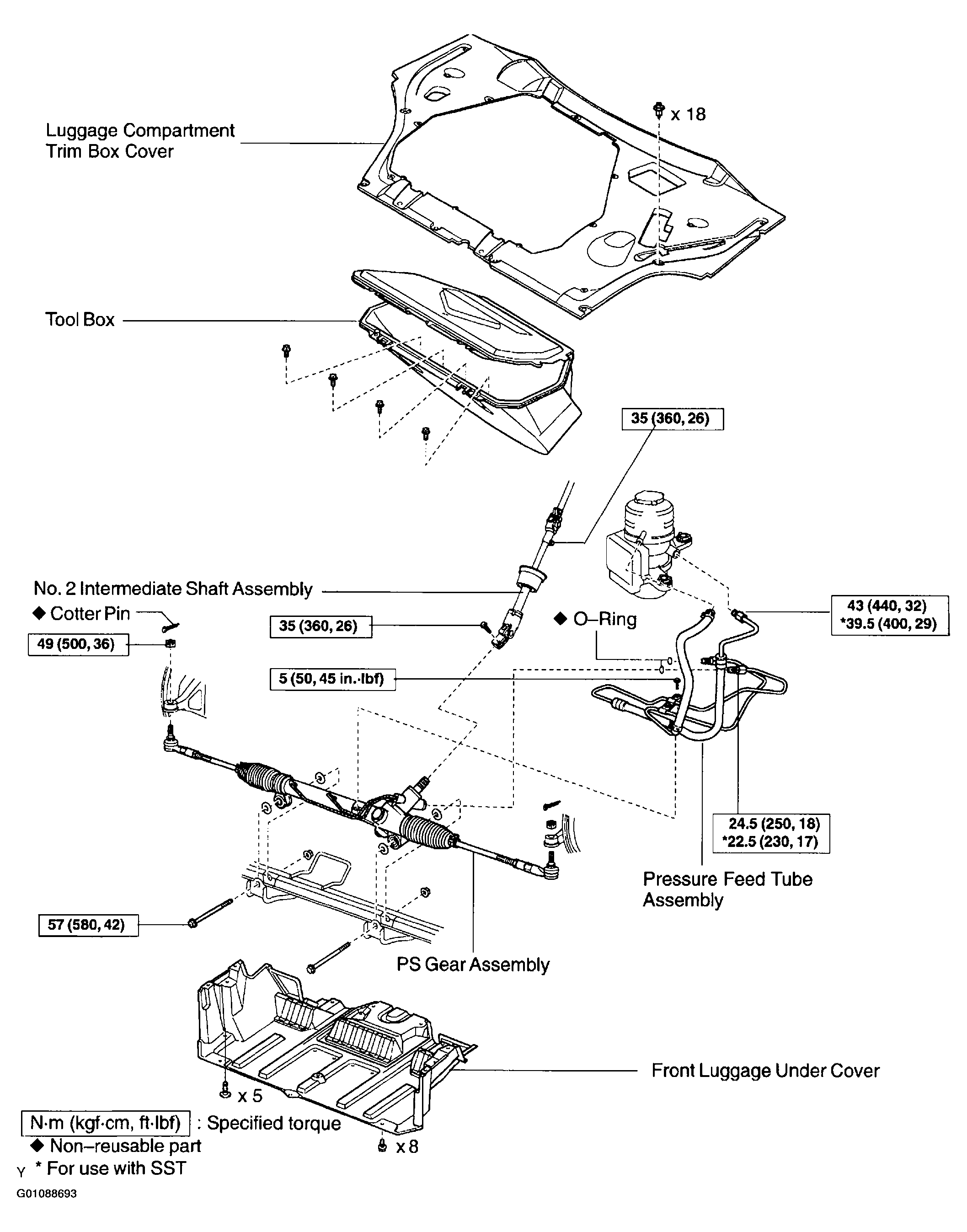

Fig 1: Locating Steering Gear & Surrounding Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

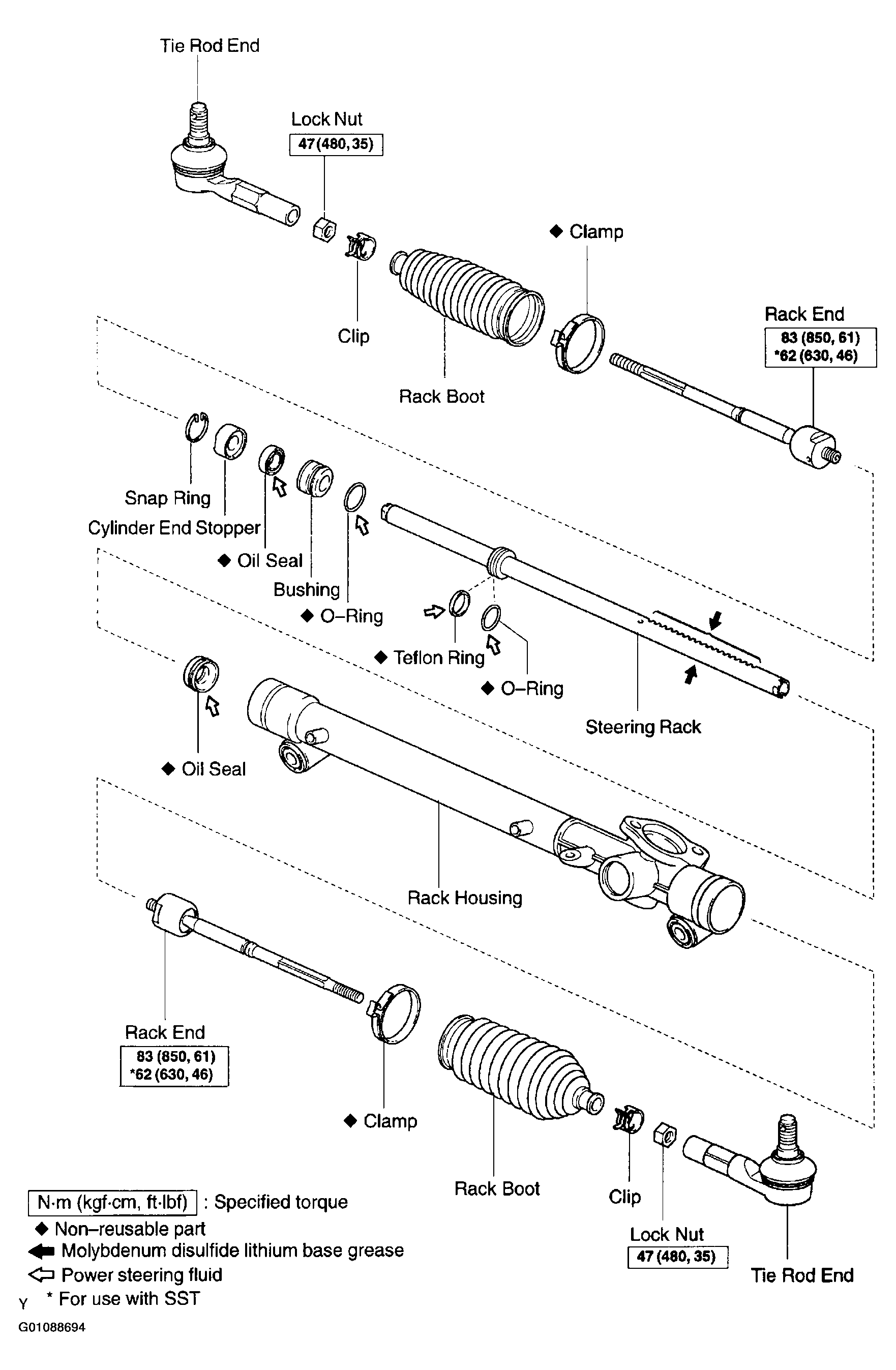

Fig 2: Identifying Steering Gear-Related Components (1 Of 2)

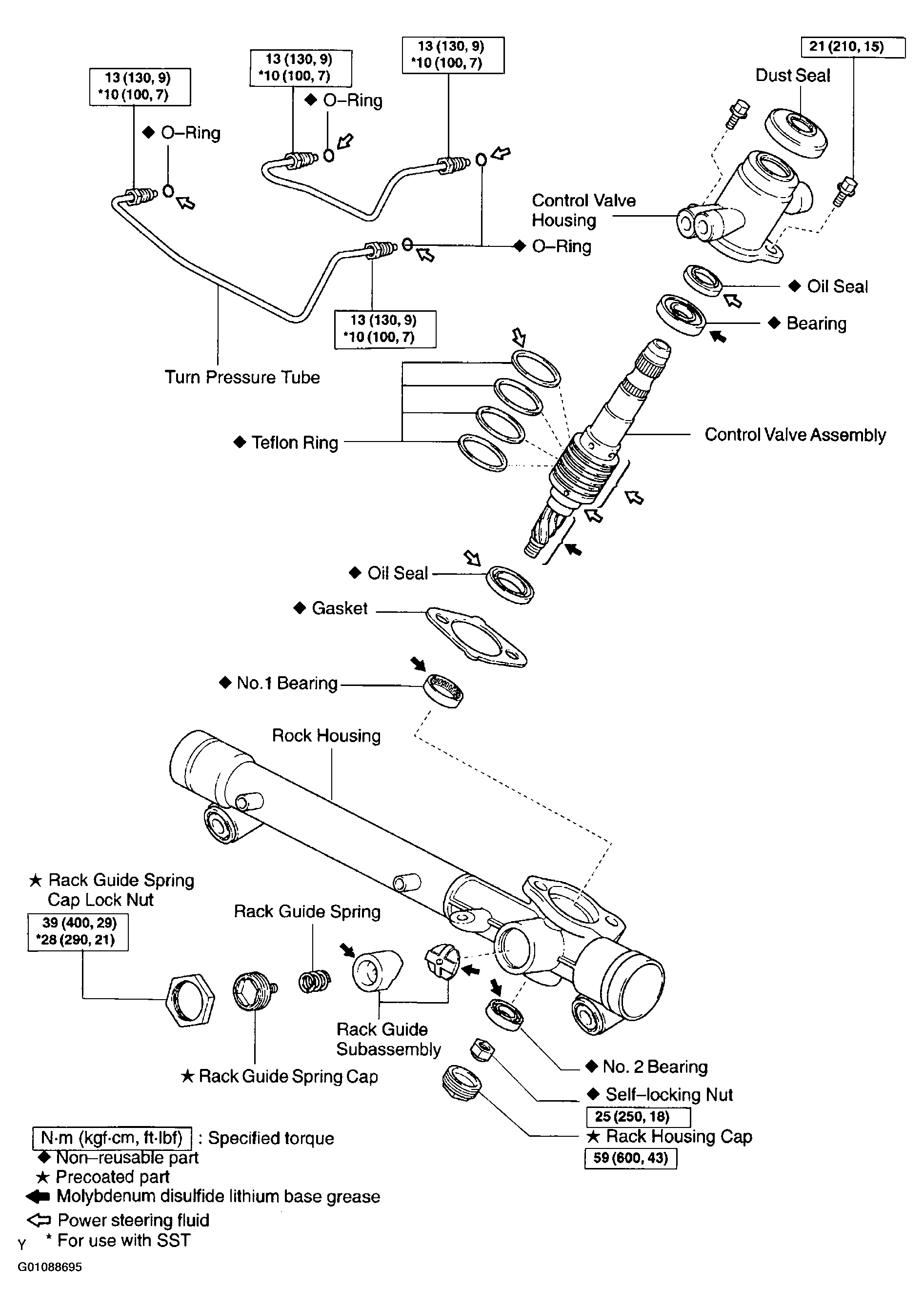

Fig 3: Identifying Steering Gear-Related Components (2 Of 2)
