Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

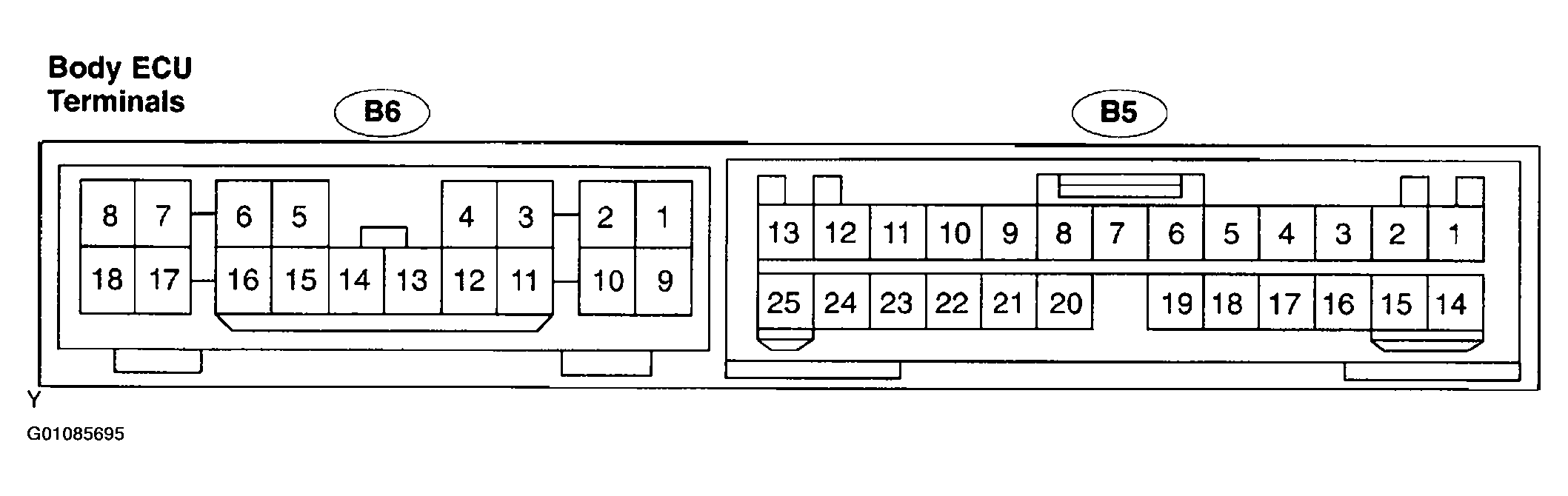

Fig 1: Identifying Body ECU Connectors & Terminals
G01085695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

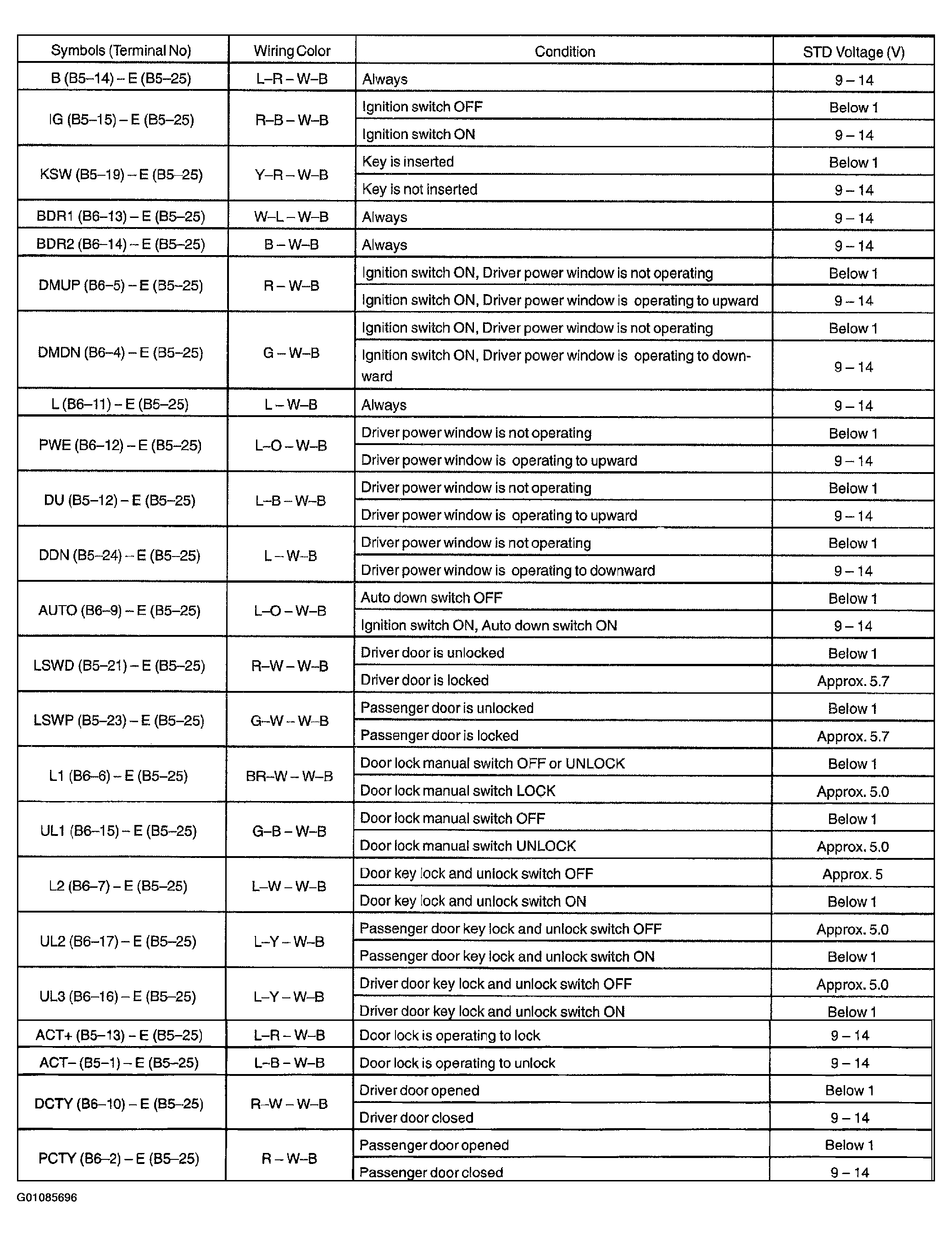

Fig 2: Identifying Body ECU Circuits & Test Parameters
G01085696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
