Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Using SST 09843-18020, connect terminals Tc and E1 of the DLC1 or DLC2 and remove the short pin.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to the DTC chart. See DIAGNOSTIC TROUBLE CODES OF ABS SYSTEM table.
NOTE:
There is a case that hand-held tester cannot be used when ABS warning light is always on.

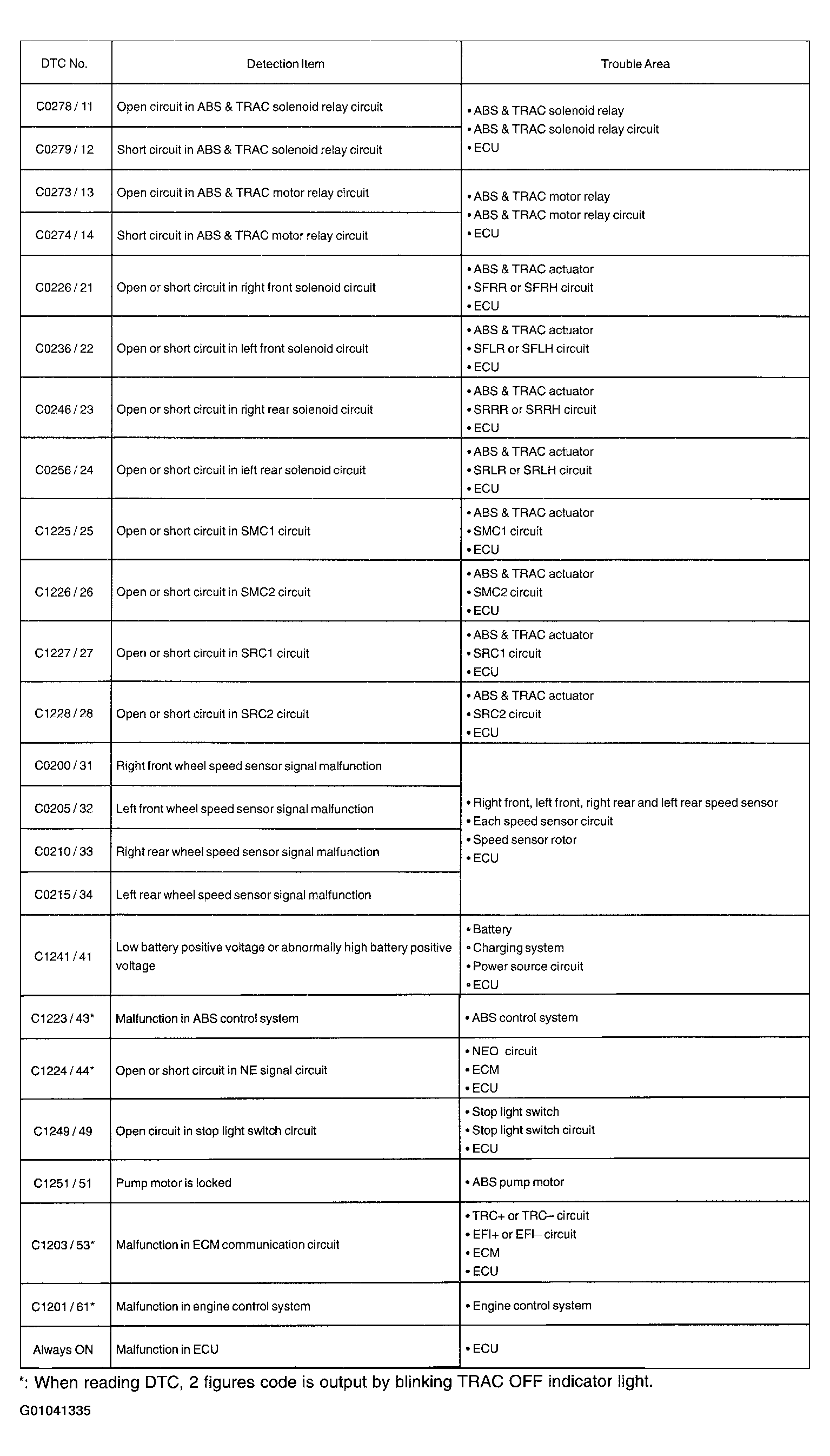

DIAGNOSTIC TROUBLE CODES OF ABS SYSTEM
| DTC (1) | Detection Item | Trouble Areas | ||
|---|---|---|---|---|
| C0278/11 | Open In ABS & TRAC Solenoid Relay Circuit | ABS & TRAC Solenoid Relay, ABS & TRAC Solenoid Relay Circuit, ECU | ||
| C0279/12 | Short In ABS & TRAC Solenoid Relay Circuit | ABS & TRAC Motor Relay, ABS & TRAC Motor Relay Circuit, ECU | ||
| C0273/13 | Open Or Short Circuit In ABS Motor Relay Circuit | ABS & TRAC Motor Relay, ABS Motor Relay Circuit, ECU | ||
| C0274/14 | Open Or Short Circuit In ABS Motor Relay Circuit | ABS & TRAC Motor Relay, ABS Motor Relay Circuit, ECU | ||
| C0226/21 | Open Or Short Circuit In Right Front Solenoid Circuit | ABS & TRAC Actuator, SFRR Or SFRH Circuit , ECU |
||
| C0236/22 | Open Or Short Circuit In Left Front Solenoid Circuit | ABS & TRAC Actuator, SFLR Or SFLH Circuit, ECU | ||
| C0246/23 | Open Or Short Circuit In Right Rear Solenoid Circuit | ABS & TRAC Actuator, SRRR Or SRRH Circuit, ECU | ||
| C0256/24 | Open Or Short Circuit In Right Rear Solenoid Circuit | ABS & TRAC Actuator, SRLR Or SRLH Circuit, ECU | ||
| C1225/25 | Open Or Short Circuit In SMC1 Circuit | ABS & TRAC Actuator, SMC1 Circuit, ECU | ||
| C1226/26 | Open Or Short Circuit In SMC2 Circuit | ABS & TRAC Actuator, SMC2 Circuit, ECU | ||
| C1227/27 | Open Or Short Circuit In SRC1 Circuit | ABS & TRAC Actuator, SRC1 Circuit, ECU | ||
| C1228/28 | Open Or Short Circuit In SRC2 Circuit | ABS & TRAC Actuator, SRC2 Circuit, ECU | ||
| C0200/31 | Right Front Wheel Speed Sensor Signal Malfunction | Right Front; Speed Sensor, Sensor Circuit, Or Sensor Rotor, ECU | ||
| C0205/32 | Left Front Wheel Speed Sensor Signal Malfunction | Left Front; Speed Sensor, Sensor Circuit Or Sensor Rotor, ECU | ||
| C0210/33 | Right Rear Wheel Speed Sensor Signal Malfunction | Right Rear; Speed Sensor, Sensor Circuit Or Sensor Rotor, ECU | ||
| C0215/34 | Left Rear Wheel Speed Sensor Signal Malfunction | Left Rear; Speed Sensor, Sensor Circuit Or Sensor Rotor, ECU | ||
| C1241/41 | Low Or Abnormally High Battery Positive Voltage | Battery, Charging System, Power Source Circuit, ECU | ||
| C1223/43 | Malfunction In ABS Control System | ABS Control System, ECU | ||
| C1224/44 | Open Or Short Circuit In NE Signal Circuit | NEO Circuit Or ECM, ECU | ||
| C1249/49 | Open Circuit In Stop Light Switch Circuit | Stop Light Switch, Stop Light Switch Circuit, ECU | ||
| C1251/51 | Pump Motor Is Locked | ABS Pump Motor | ||
| C1203/53 | Malfunction In ECM Communication Circuit | TRC+ Or TRC- Circuit, EFI+ Or EFI- Circuit, ECM, ECU | ||
| C1201/61 | Malfunction In Engine Control System | Engine Control System | ||
| Always ON | Malfunction In ECU | ECU | ||
|
||||
