Air Conditioner Control Assembly: Overhaul

WARNING: This page is about a different car, the 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See Figure

REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See GAUGES & INSTRUMENT PANELS )
REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY
1. Release the 4 fitting claws, remove the 5 screws.

  Fig 1: Remove Heater Control Housing Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

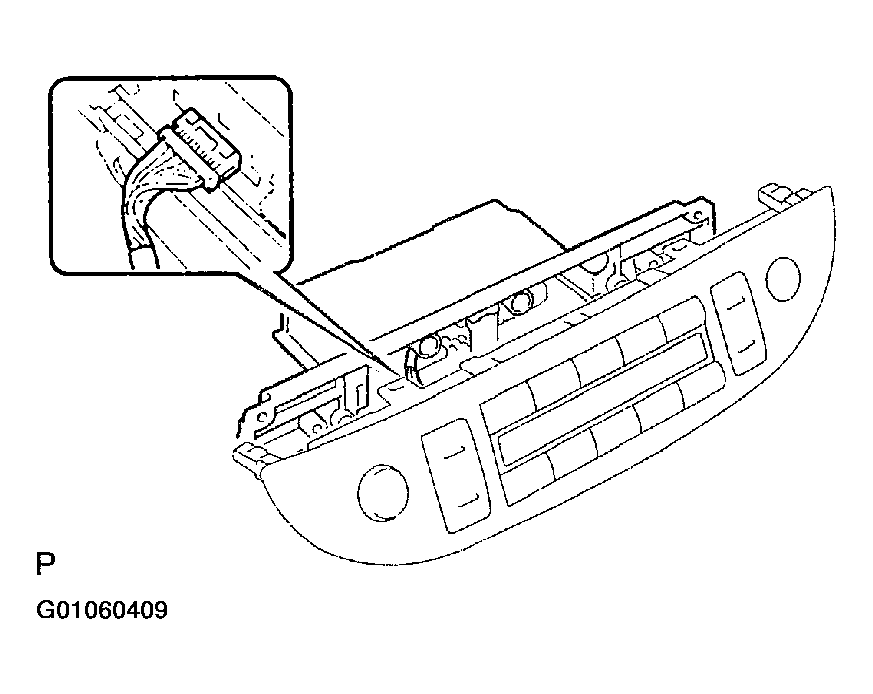

2. Disconnect the connector, remove the heater control housing sub-assy.

  Fig 2: Disconnect Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONING CONTROL BULB
1. Remove the air conditioning control bulb from the heater control base sub-assy.
REMOVE HEATER CONTROL BASE SUB-ASSEMBLY
1. Remove the 9 screws and heater control base sub-assy.

  Fig 3: Remove Heater Control Base Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CONDITIONING CONTROL BULB
1. Install the air conditioning control bulb to the heater control base sub-assy.

  Fig 4: Control Bulb Part Number List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bulb position:

  Fig 5: Install Air Conditioning Control Bulbs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
