Circuit Protection Devices
WARNING: This page is about a different car, the 2002 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

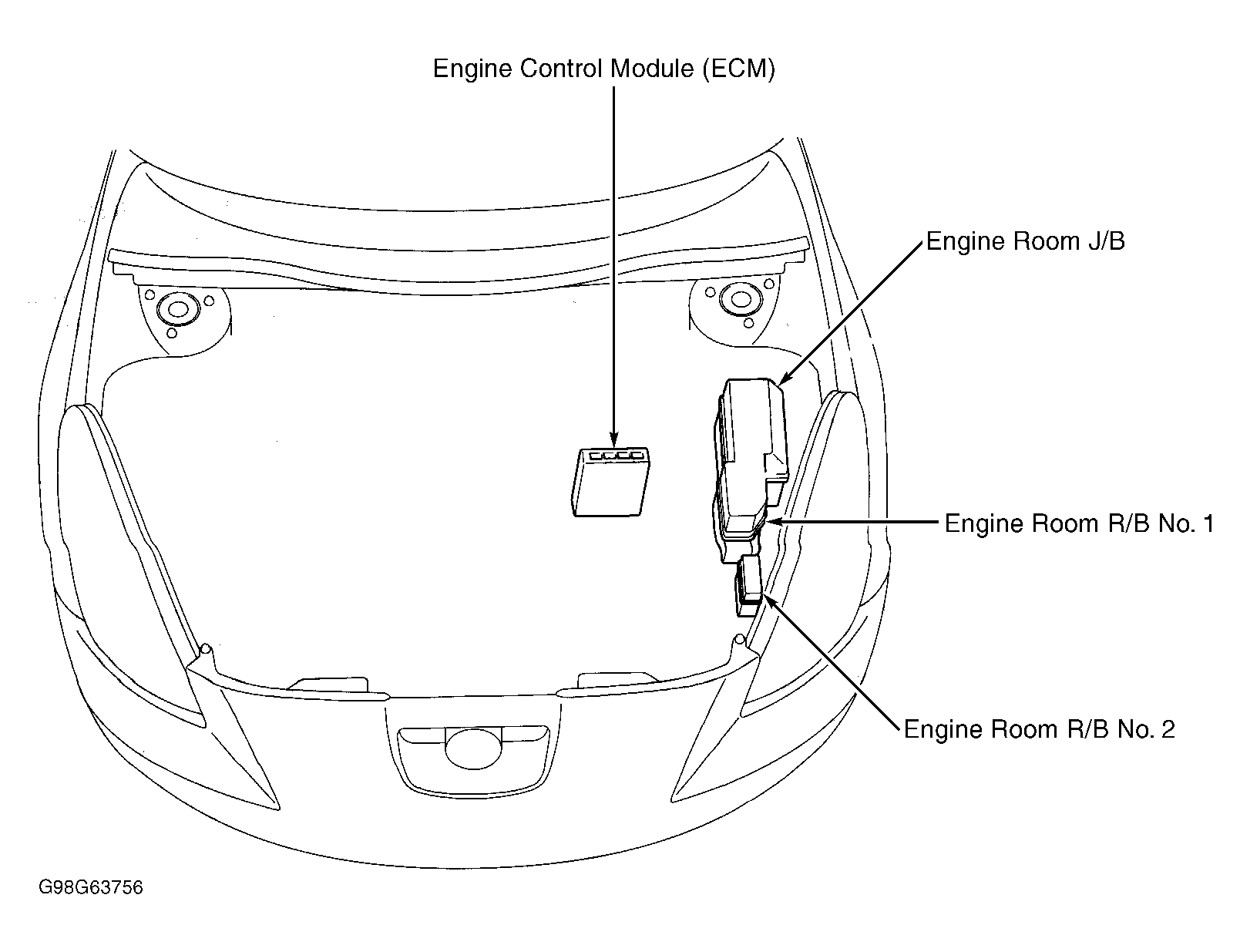

| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 | On left side of engine compartment. See Figure. |

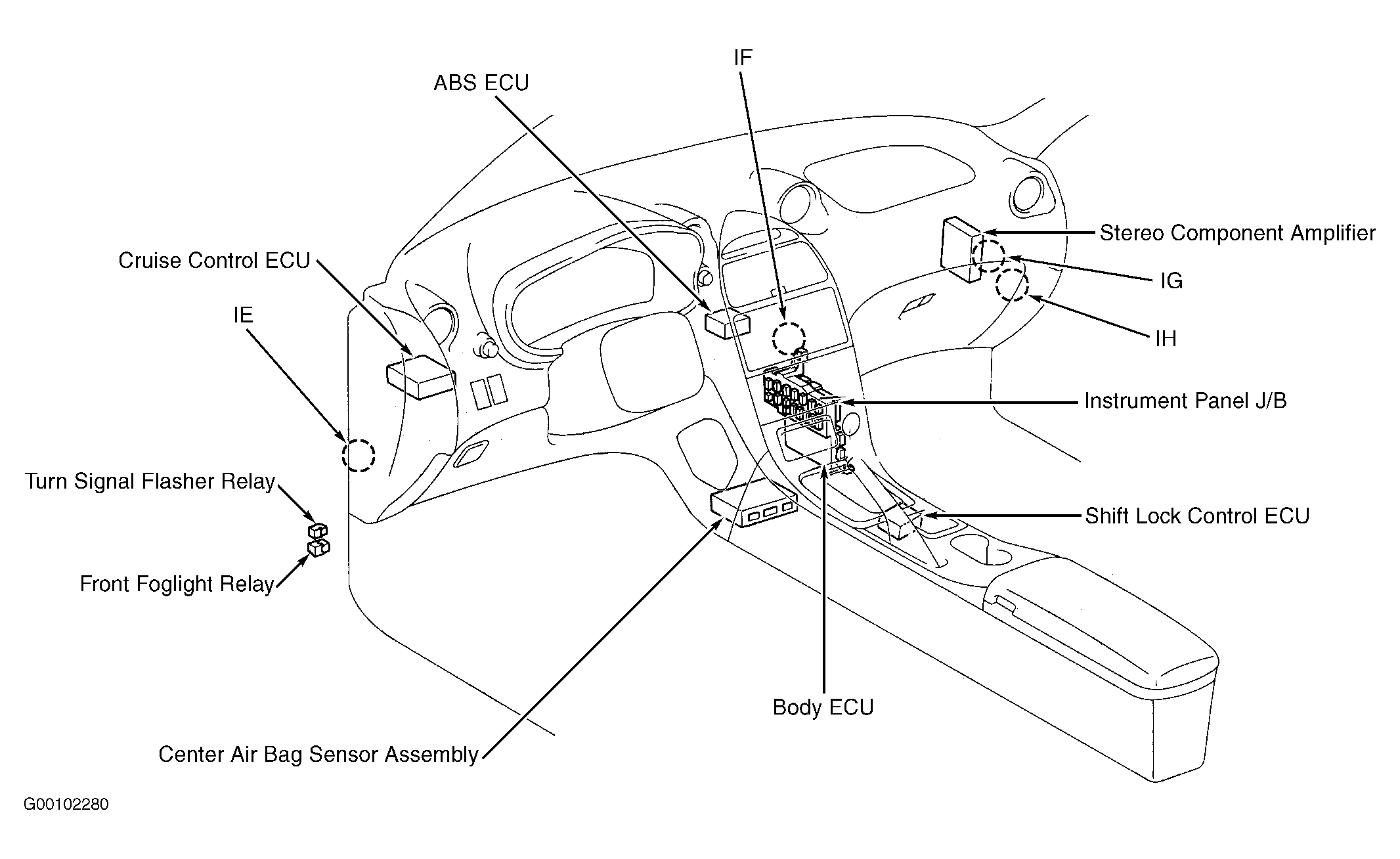

| Instrument Panel J/B | Behind panel on right side of center console. See Figure. |
