Control Units
WARNING: This page is about a different car, the 2002 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS ECU | Behind center of dash. See Figure. |
| Body ECU | Behind panel on right side of center console. See Figure. |
| Center Air Bag Sensor Assembly | Behind lower center of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash, near base of "A" pillar. See Figure. |

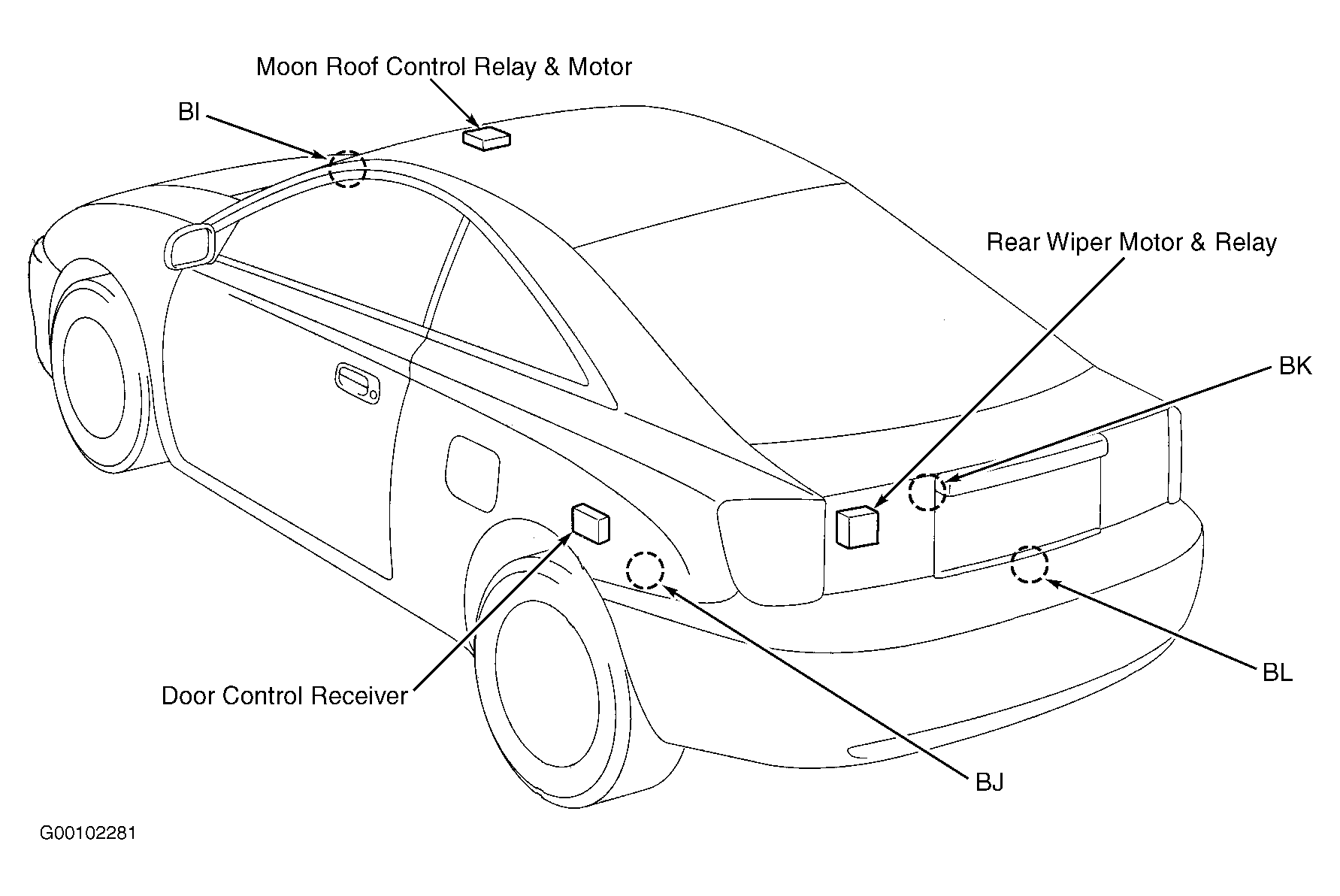

| Door Control Receiver | Behind trim panel, above left rear fenderwell. See Figure. |
| Engine Control Module (ECM) | On left side of engine compartment, forward of battery. See Figure. |
| Shift Lock Control ECU | Under center console, right of parking brake lever. See Figure. |
