Circuit Inspection
NOTE:
Some articles include figures containing information which when provided can be used in accordance with this procedure.

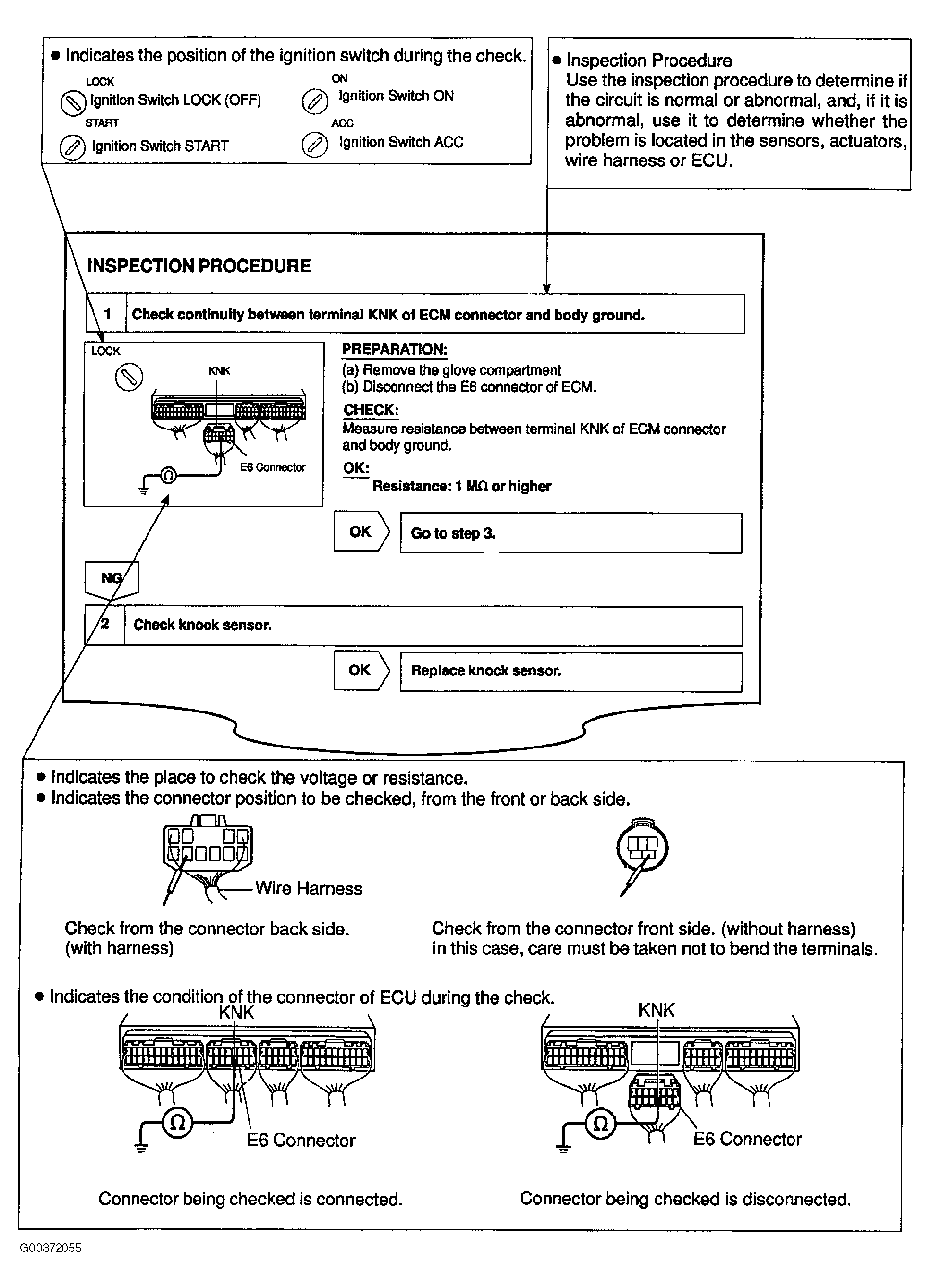

Fig 1: Reading & Understanding Circuit Inspection Figures (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Reading & Understanding Circuit Inspection Figures (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
