Repair Procedures

NOTE:

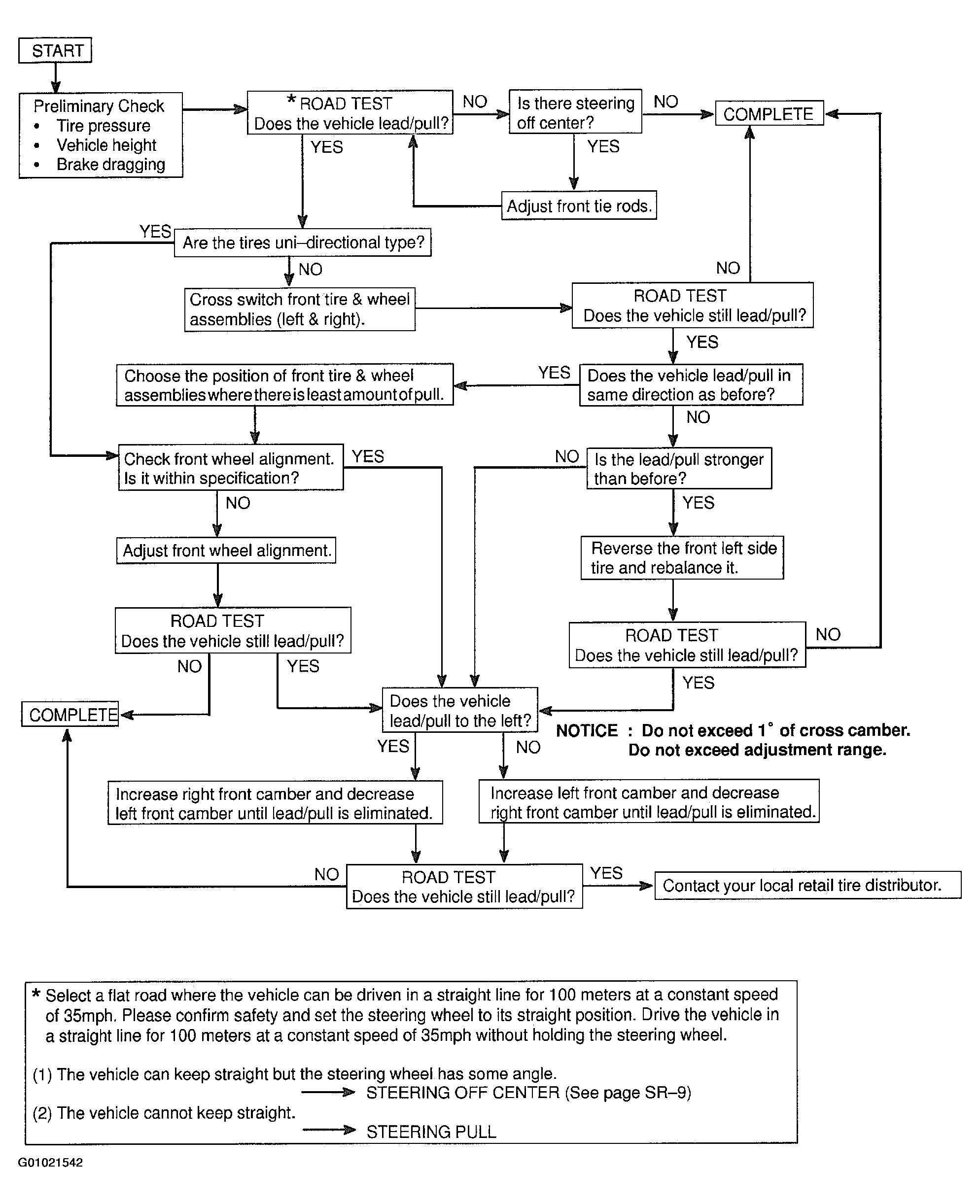

This is a flow chart for vehicle pull.

Fig 1: Displaying Repair Procedures
G01021542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
