Air Conditioning Control Assembly (Auto A/C): Components

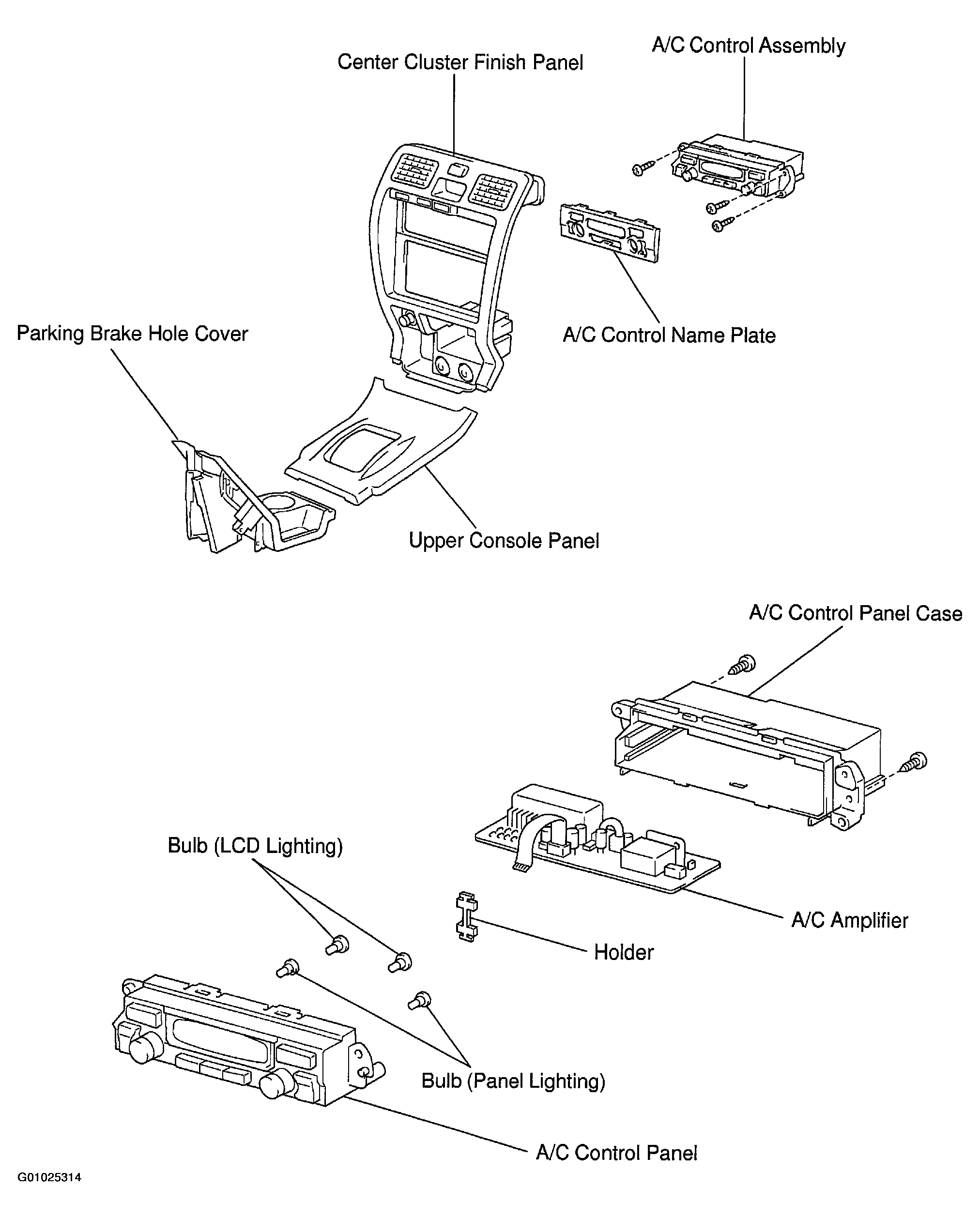

Fig 1: Displaying Air Conditioning Control Assembly Components
G01025314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
