Refrigerant Line: Replacement

  1. Discharge Refrigerant From Refrigeration System
  2. Replace Faulty Tube Or Hose
    NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
  3. Tighten Joint Of Bolt Or Nut At Specified Torque
    NOTE: Connections should not be torqued tighter than the specified torque.

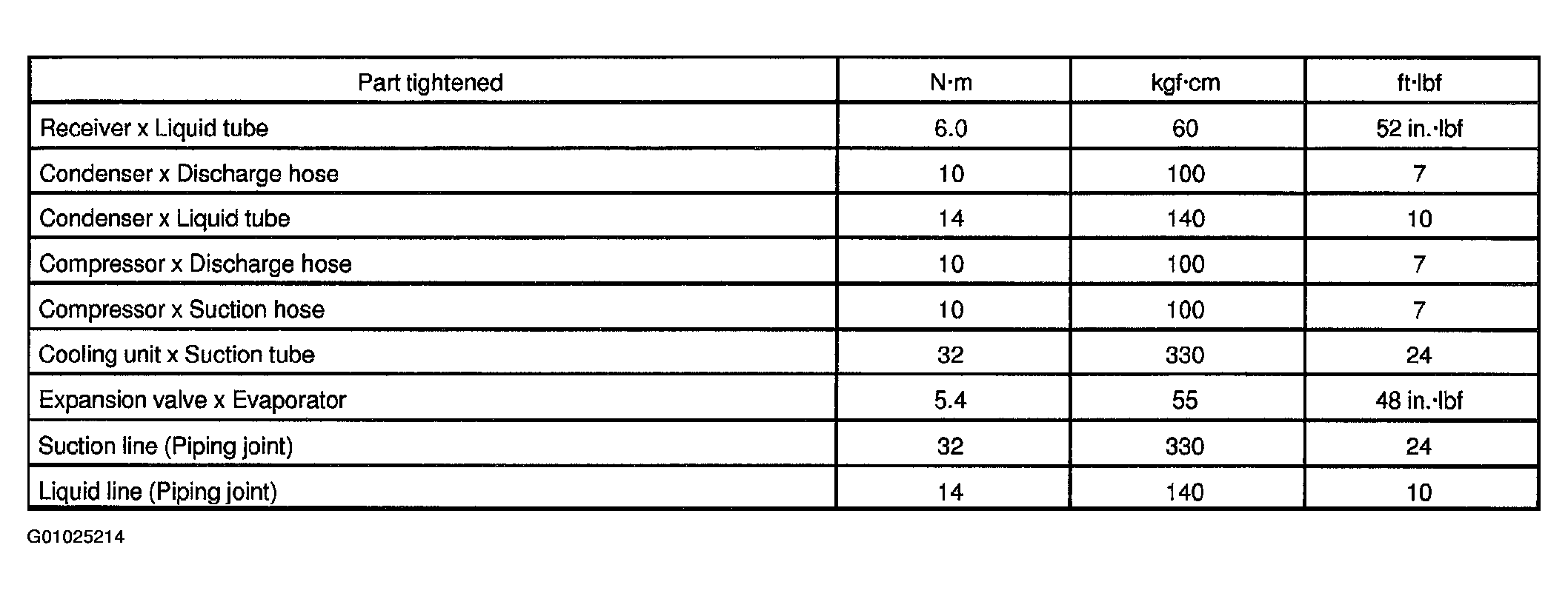

    Fig 1: Displaying Component Torque Specifications
    G01025214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Evacuate Air In Refrigeration System And Charge System With Refrigerant

    Specified amount: 650 +/- 50g (22.92 +/- 1.76 oz.)

  5. Inspect For Leakage Of Refrigerant

    Using a gas leak detector, check for leakage of refrigerant.

  6. Inspect Air Conditioning Operation
