Power Steering Vane Pump: Replacement

If necessary, replace oil seal  :

1. Using a screwdriver with vinyl tape wound around its tip, remove the oil seal.

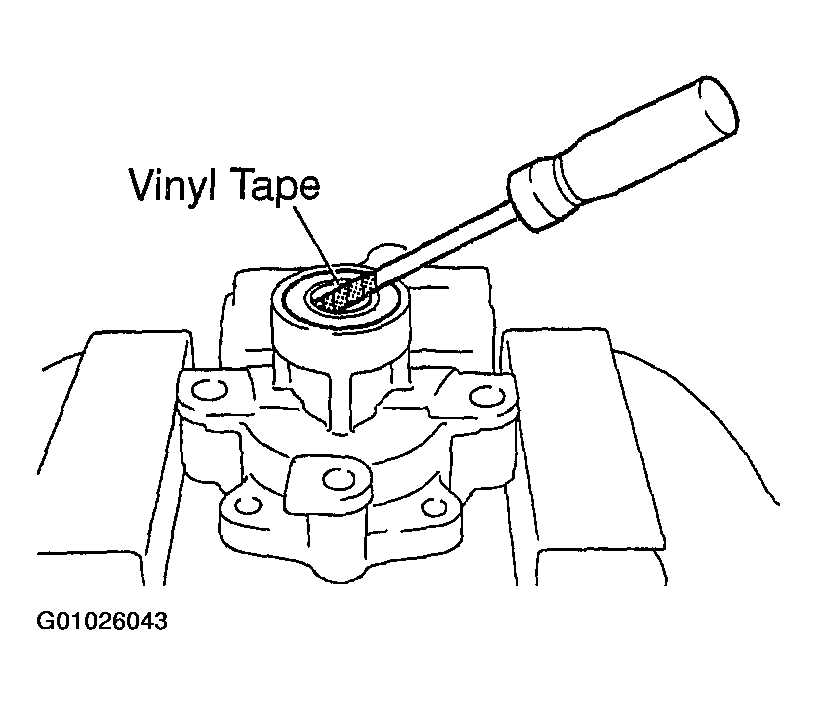

   Fig 1: Removing Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Be careful not to damage the bushing of the front housing.
2. Coat a new oil seal lip with power steering fluid.
NOTE: Make sure that the oil seal is installed facing in the correct direction.

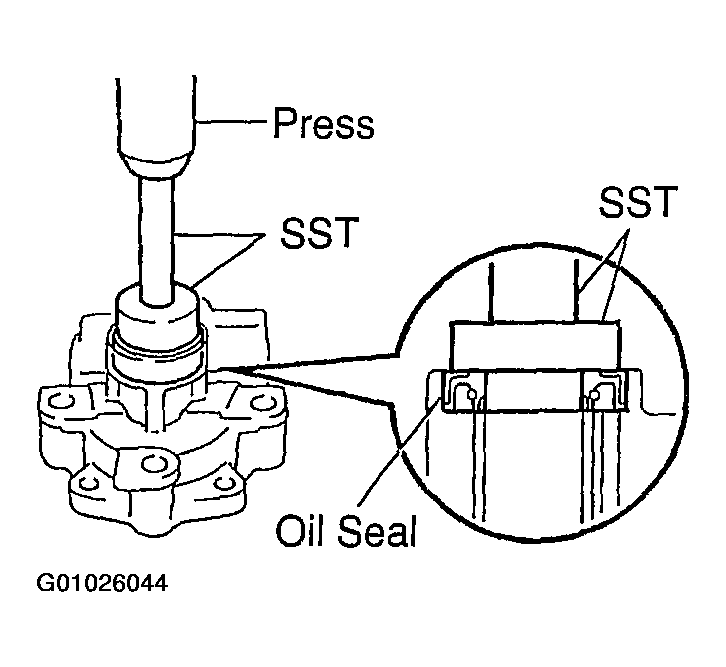

Fig 2: Installing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, press in the oil seal.
   1. SST 09950-60010 (09951-00330), 09950-70010 (09951-07100)
