Front Shock Absorber: Components

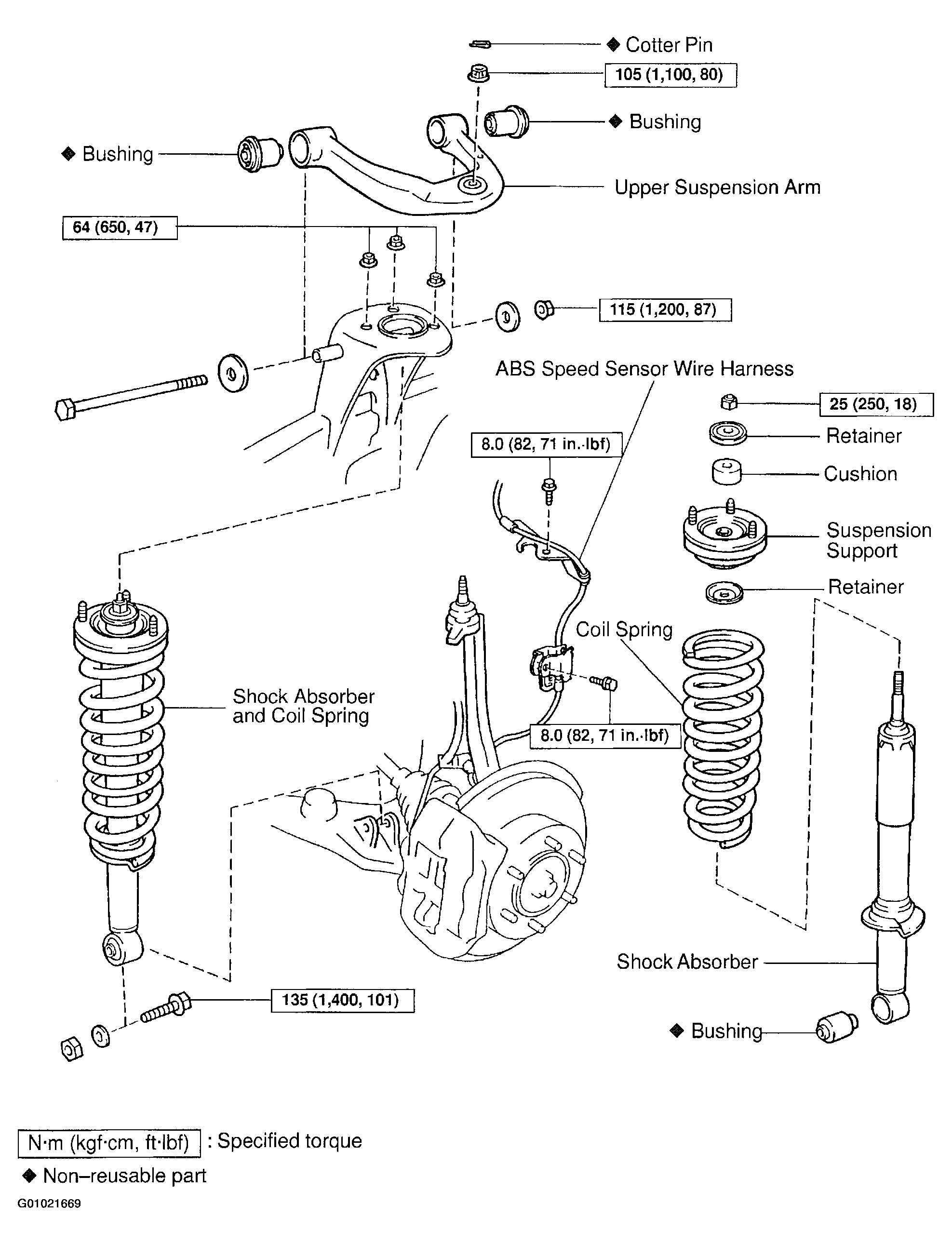

Fig 1: Locating Front Shock Absorber Components
G01021669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
