Shift Lock System: Location

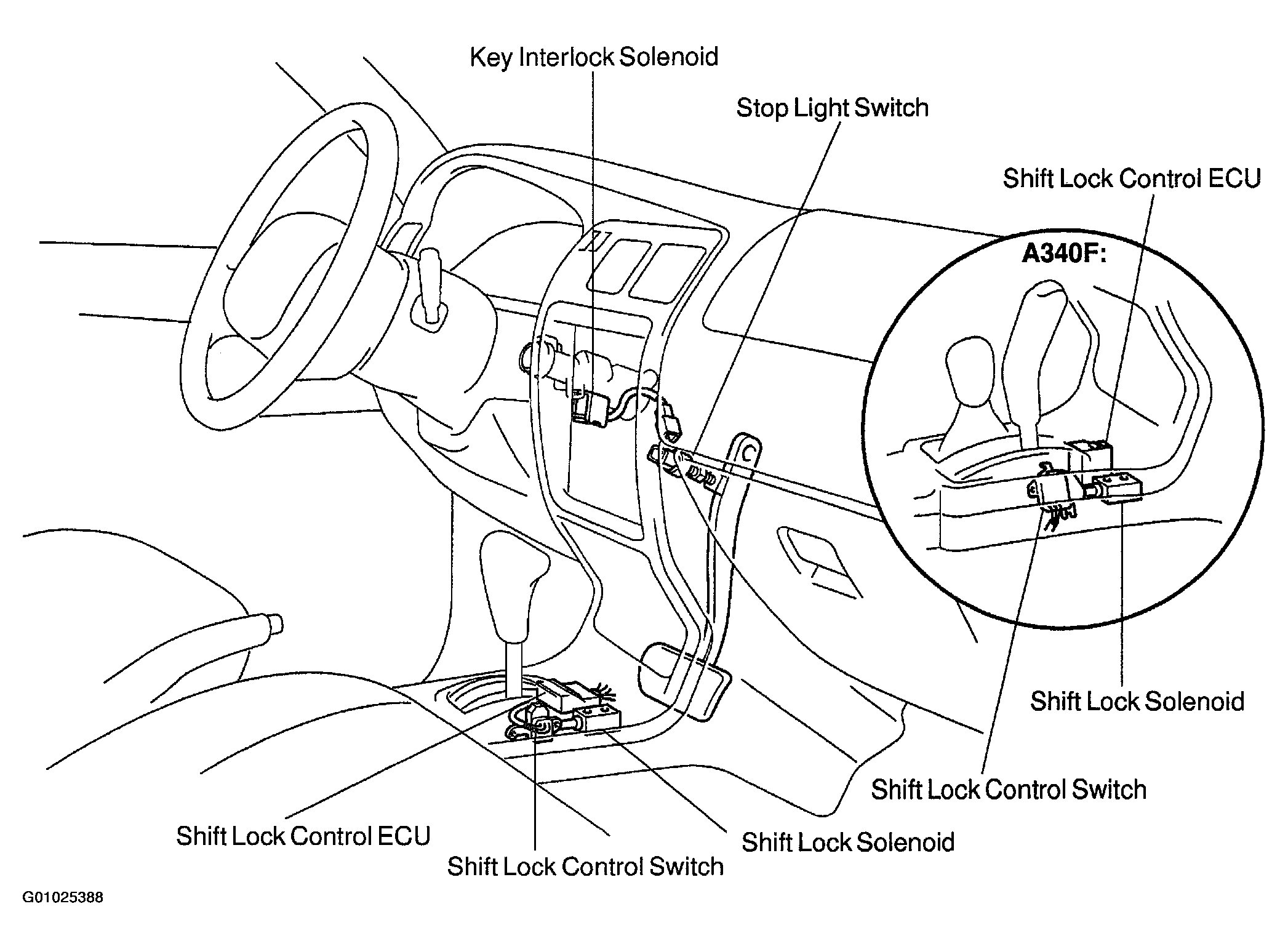

Fig 1: Locating Shift Lock System Components
G01025388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
