Fluid Temperature Sensor (RAV4): Installation

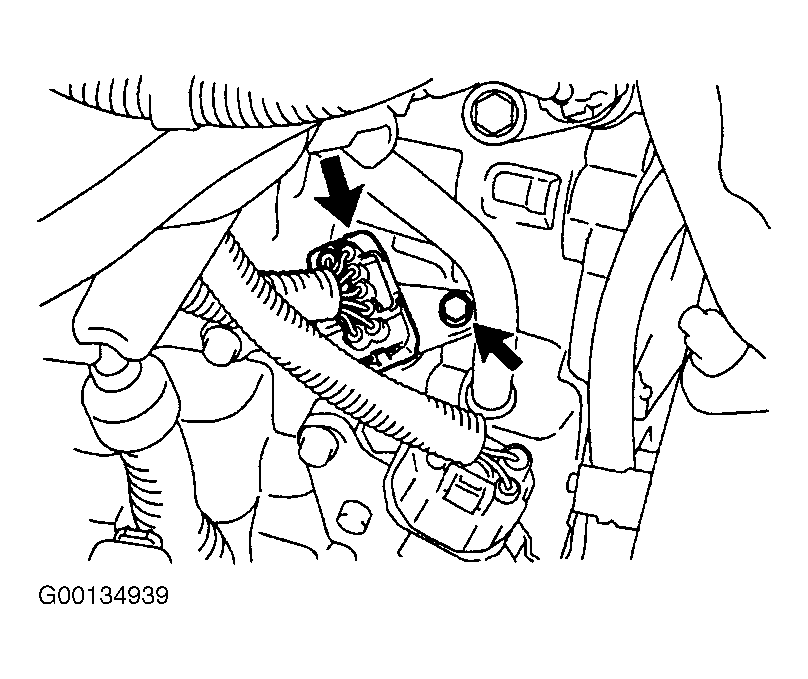

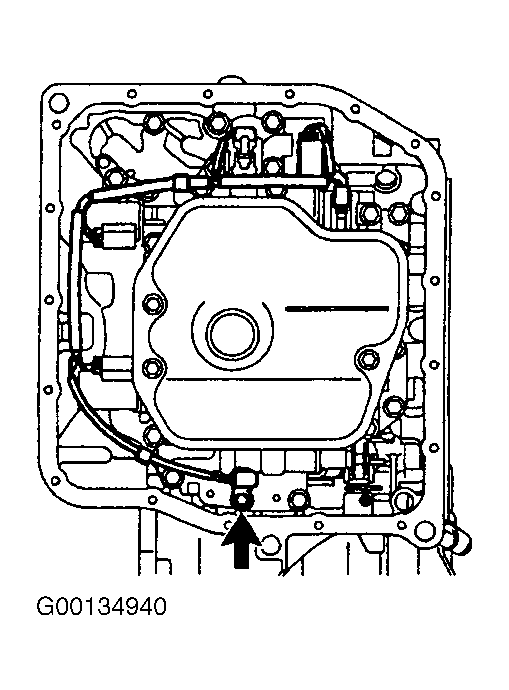

Clamp wiring harness to the 2 clamps. Install the temperature sensor with the lock plate and bolt. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the 5 shift solenoid connectors. Install the oil pan. Install solenoid wiring harness retainer bolt. Install solenoid connector and install left side engine undercover. Fill transmission with correct fluid to proper level. See DRAINING & REFILLING under LUBRICATION.
