Test I: TRAC Off Indicator, Off Switch Circuit (2WD)
›
Testing Procedure
Testing Procedure
For wiring diagram, see
Figure
. For testing procedures, see
Fig 1
.

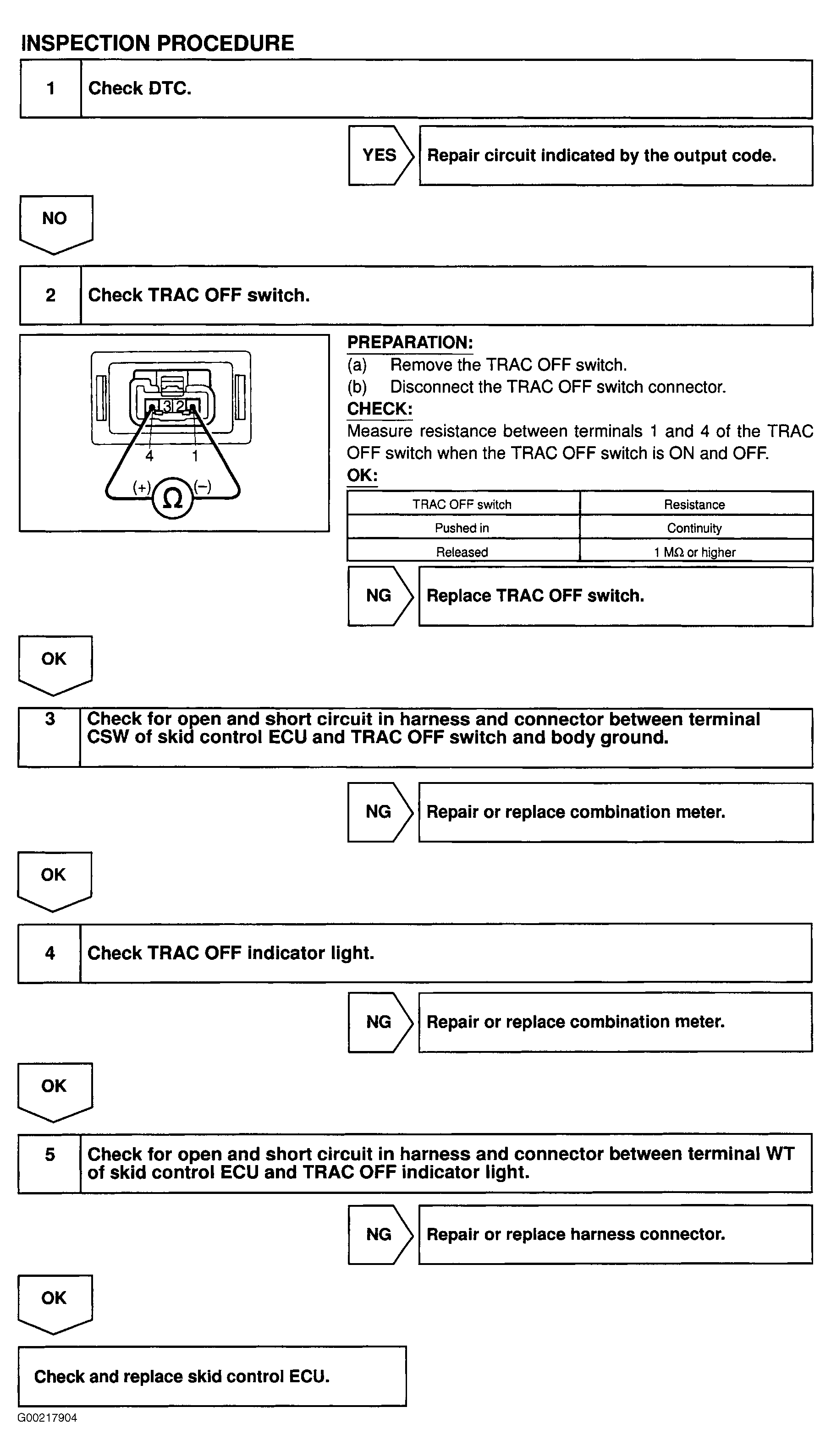

Fig 1: Testing Procedures TRAC OFF Indicator (2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
