Front Speed Sensor
›
Front Speed Sensor Components
Front Speed Sensor Components

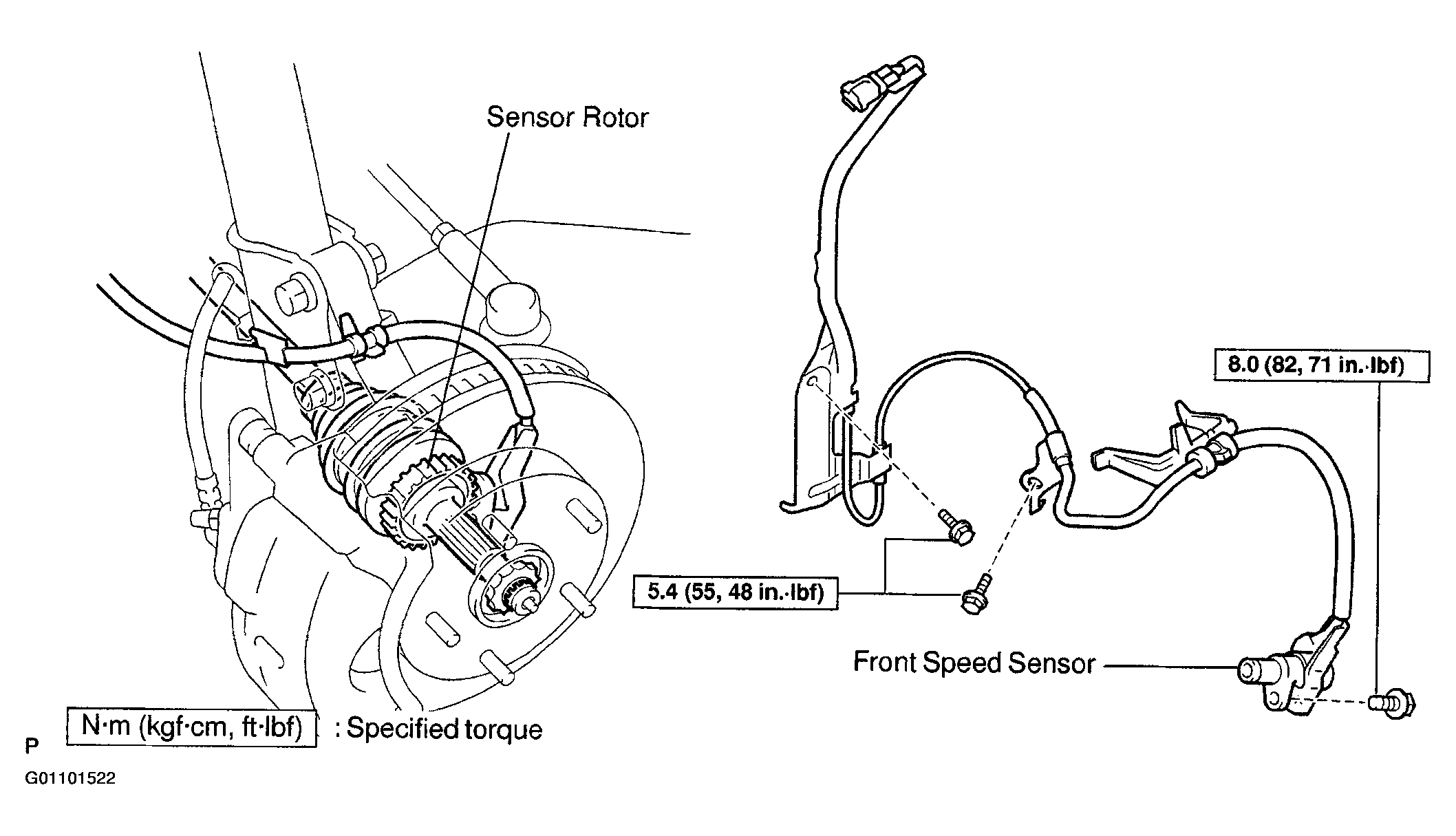

Fig 1: Locating Front Speed Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
