Power Steering Gear: Components

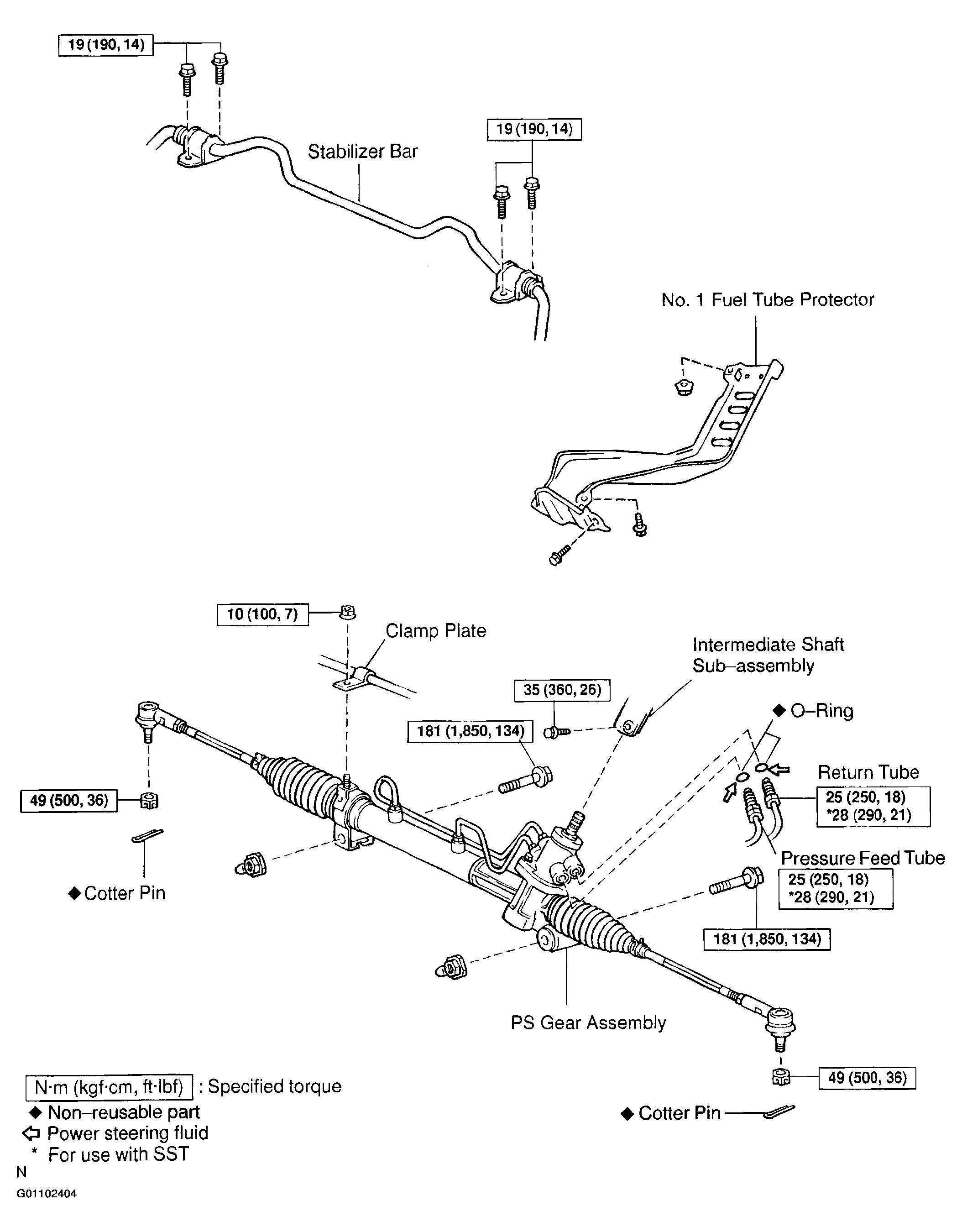

Fig 1: Identifying Power Steering Gear Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

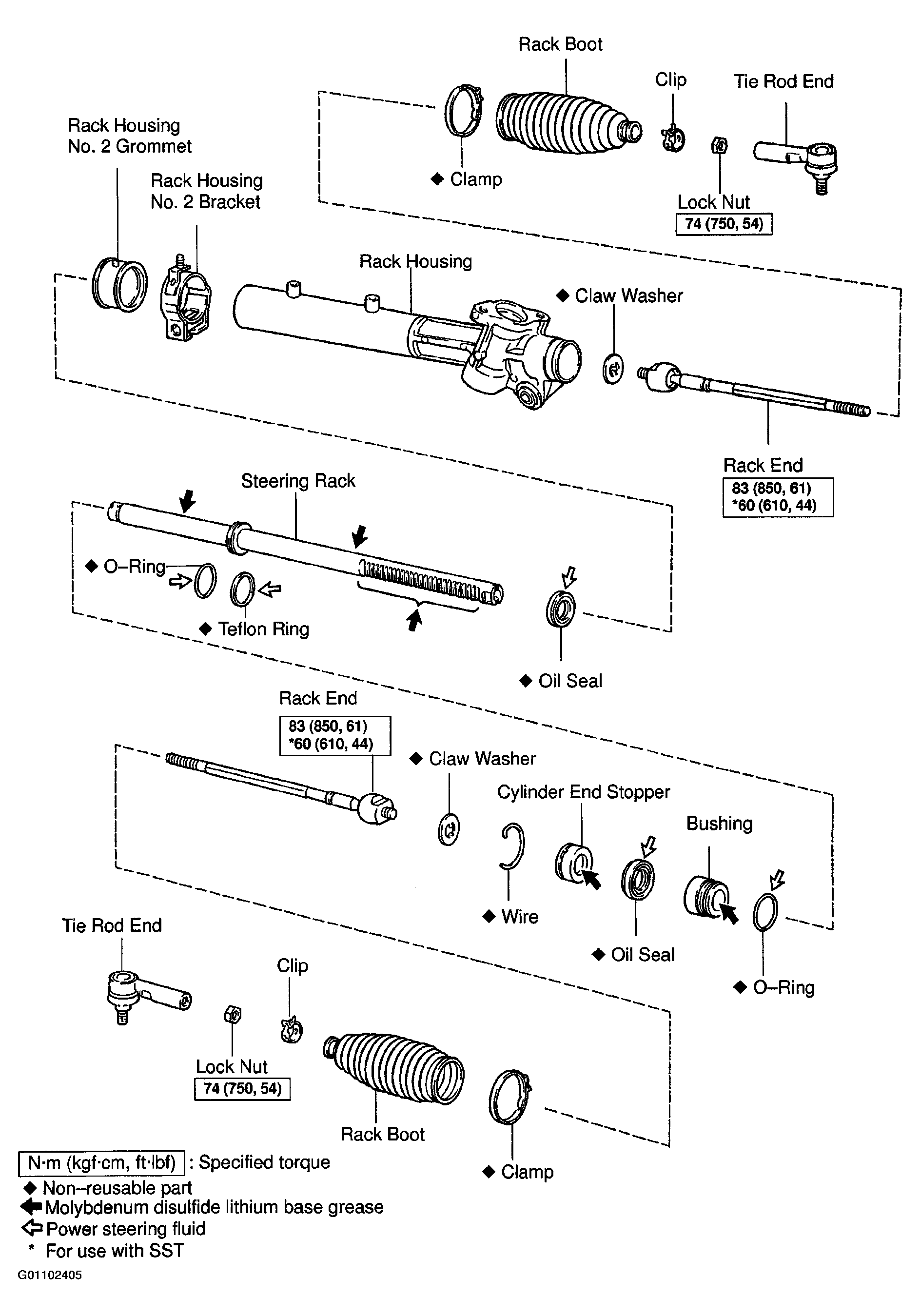

Fig 2: Exploded View Of Power Steering Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

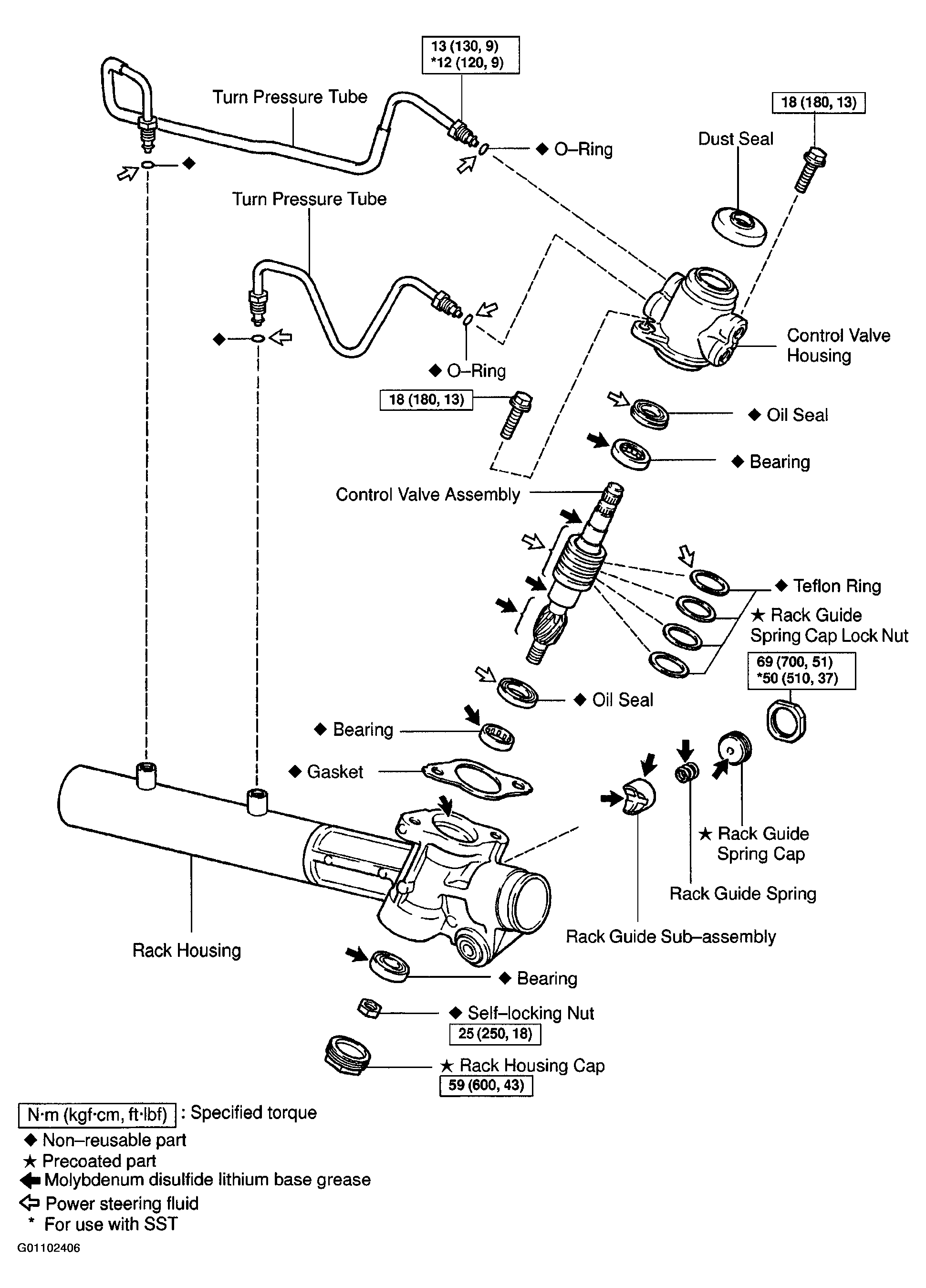

Fig 3: Exploded View Of Control Valve & Rack Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
