Charging System - Generators & Regulators: Generator: Removal

Turn the drive belt tensioner slowly clockwise and loosen it. Then, remove the drive belt and replace the drive belt tensioner little by little and fix it quietly.

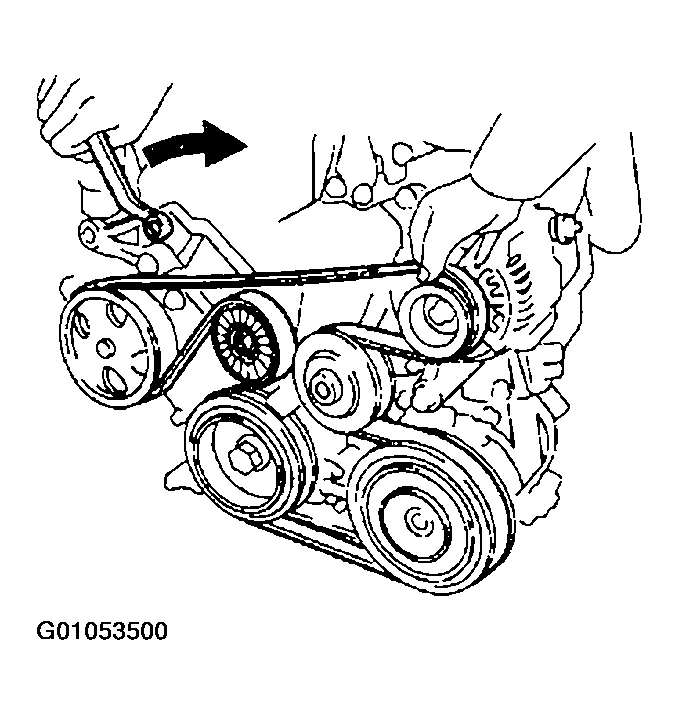

Fig 1: Removing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the wire clamp from the wire clip on the rectifier end frame.
2. Remove the rubber cap and nut, and disconnect the generator wire.
3. Disconnect the generator connector.
4. 2ZZ-GE:

   Remove the 2 bolts and generator bracket.

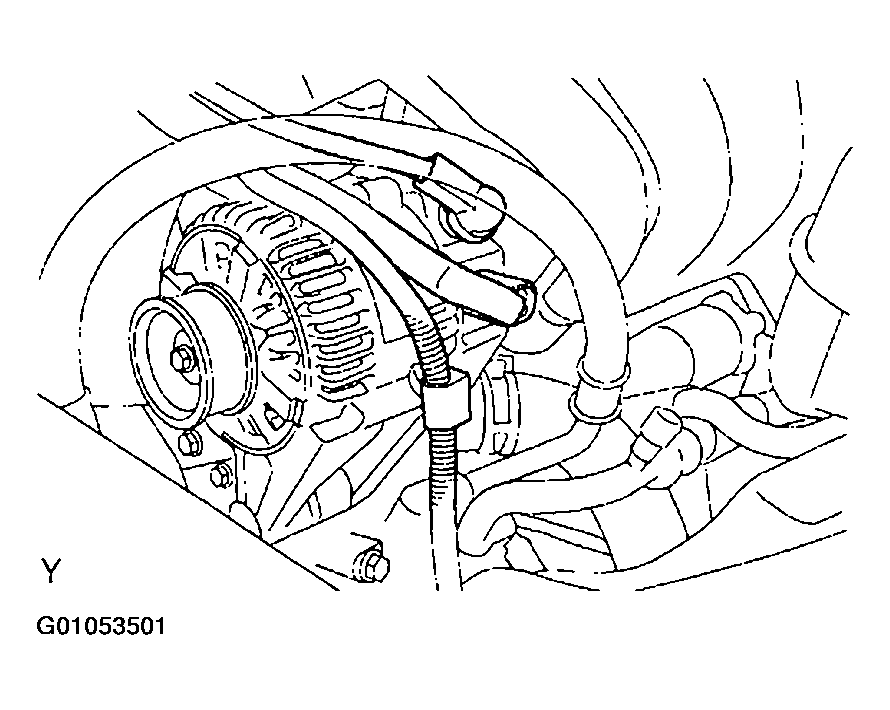

   Fig 2: Disconnecting Wire Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and generator.

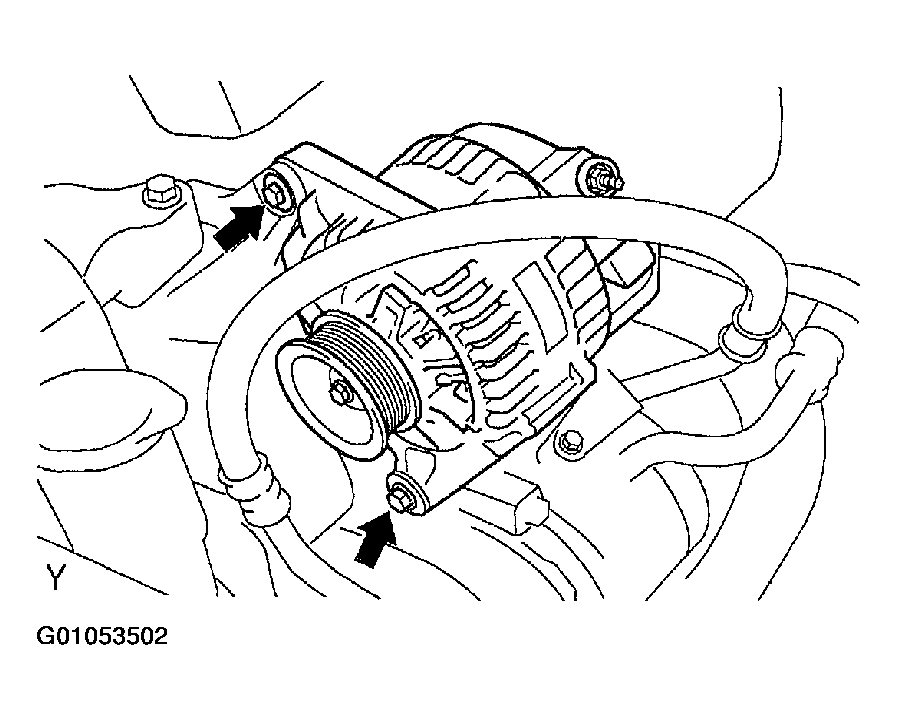

   Fig 3: Removing Bolts & Generator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
