Combination Meter: Circuit

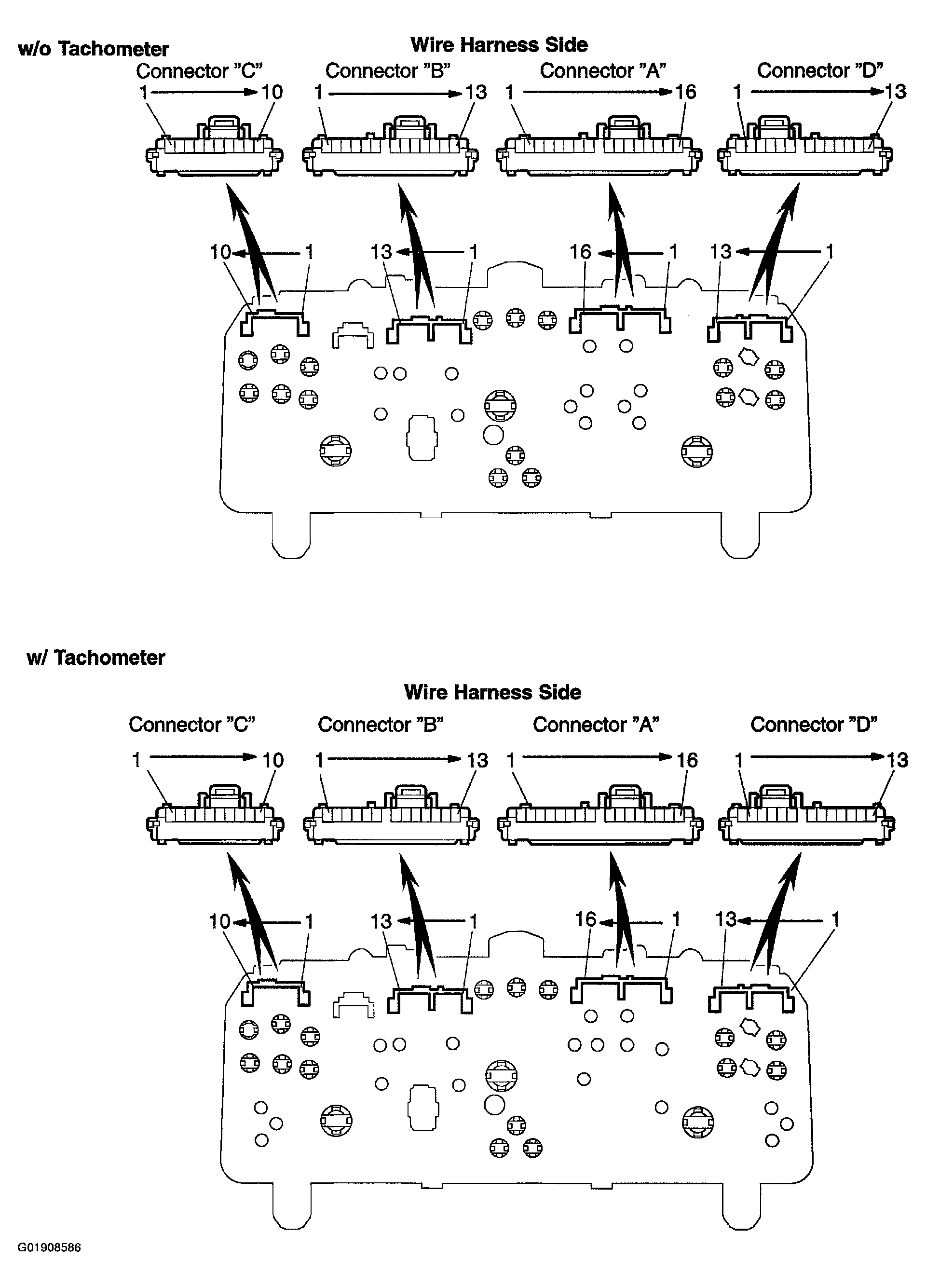

Fig 1: Locating Combination Meter Connectors & Identifying Terminals
G01908586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

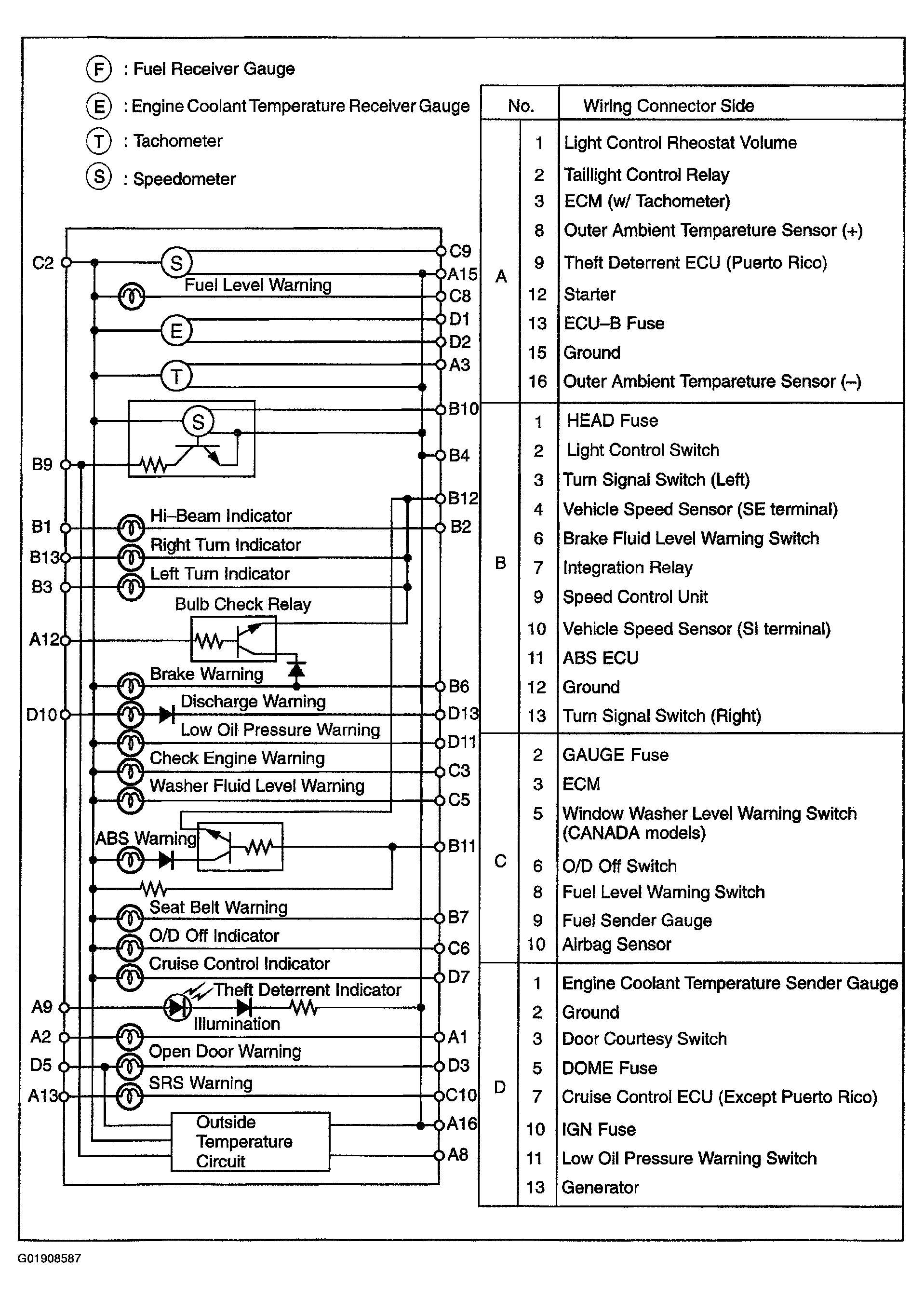

Fig 2: Combination Meter Wiring Diagram & Legend
G01908587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
