Main Switch Circuit (Cruise Control Switch)

For Main switch circuit testing procedure, see Fig 1 and Fig 2 .

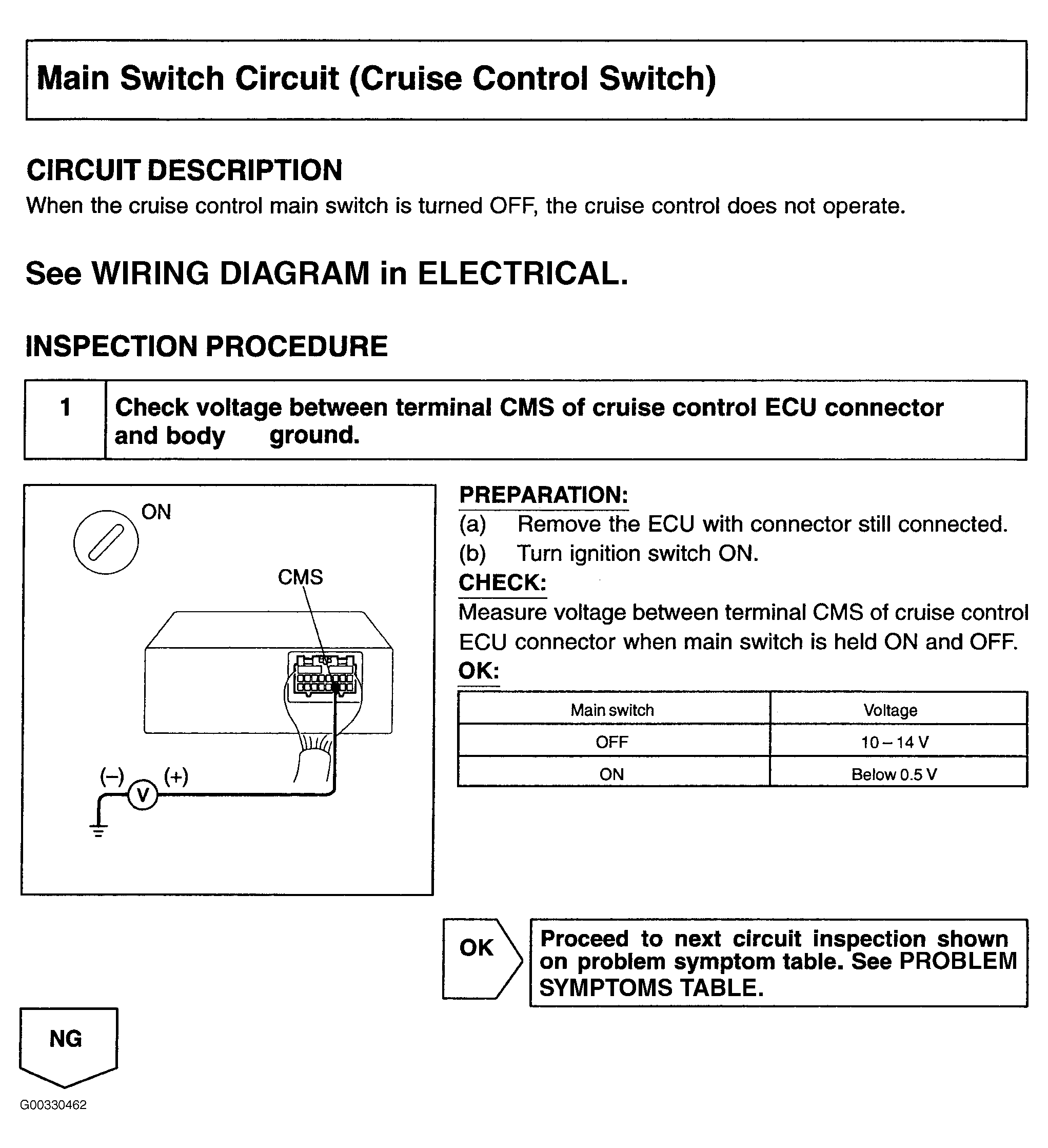

Fig 1: Testing Main Switch Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

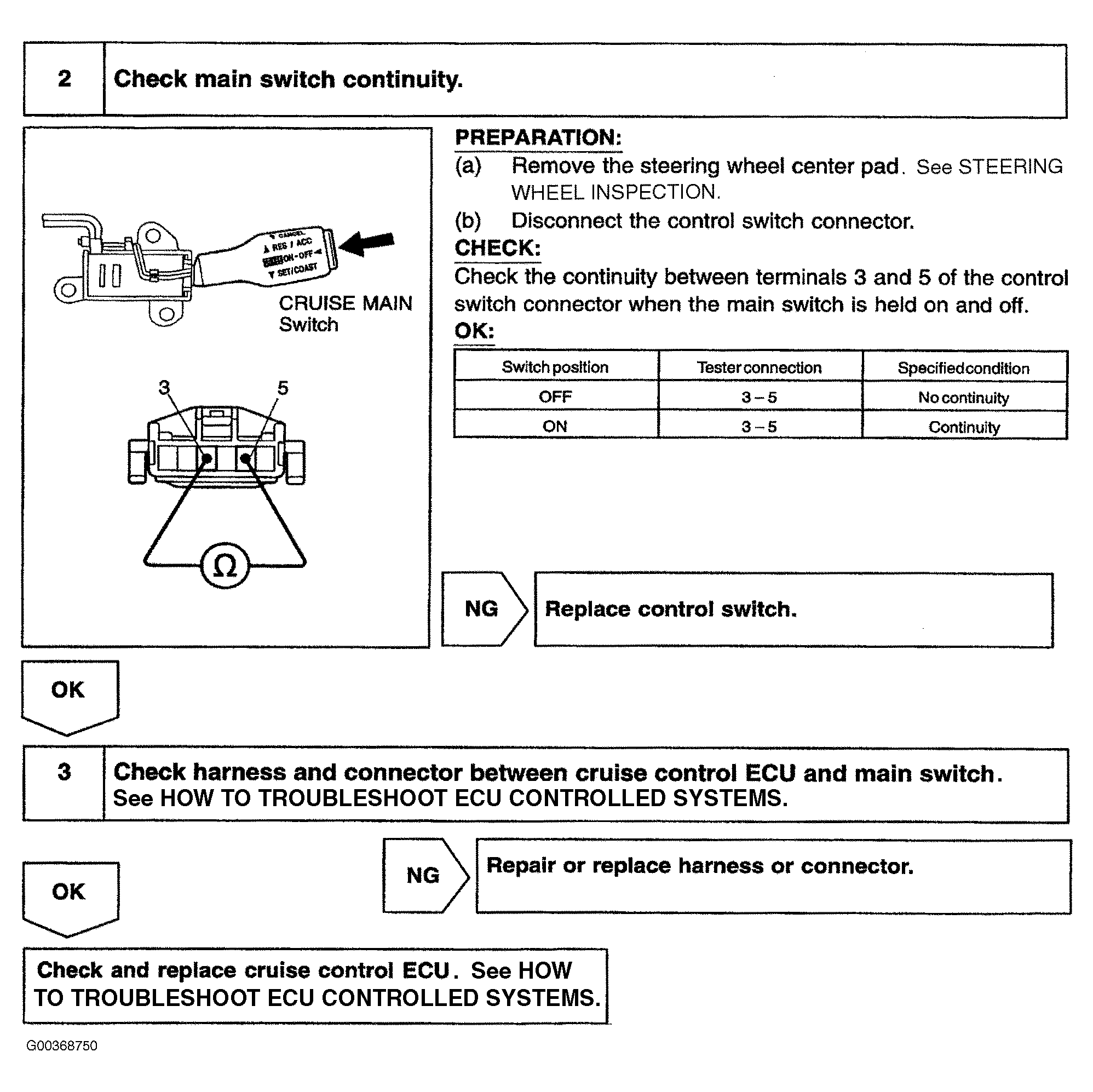

Fig 2: Testing Main Switch Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
