Home › Toyota › 2002 › Corolla LE, Automatic › Repair and Diagnosis › Engine Mechanical › Engine Exhaust Assembly › Exhaust System › Components

Exhaust System: Components

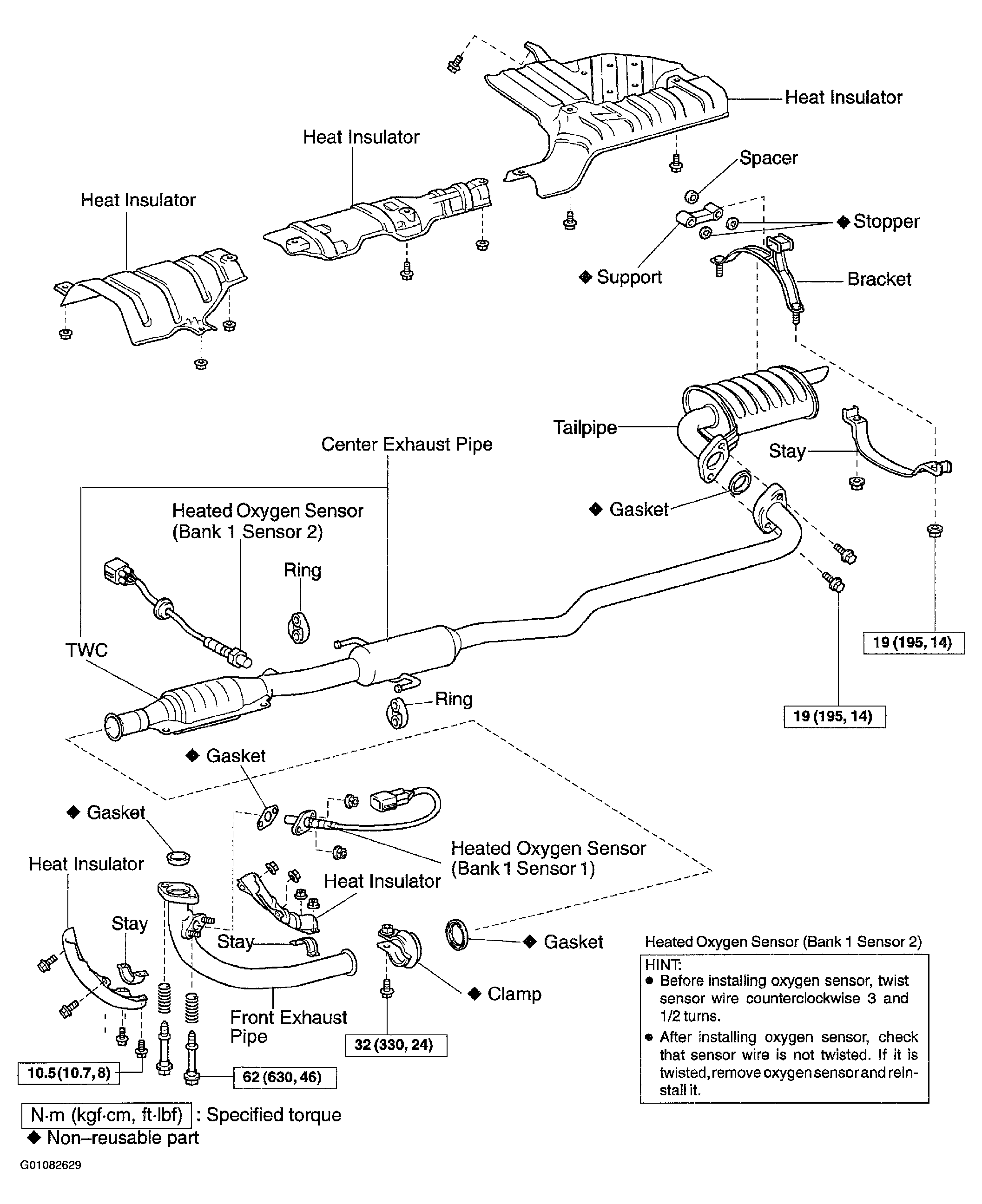

Fig 1: Identifying Exhaust System Components
G01082629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
