Instrument Panel: Components

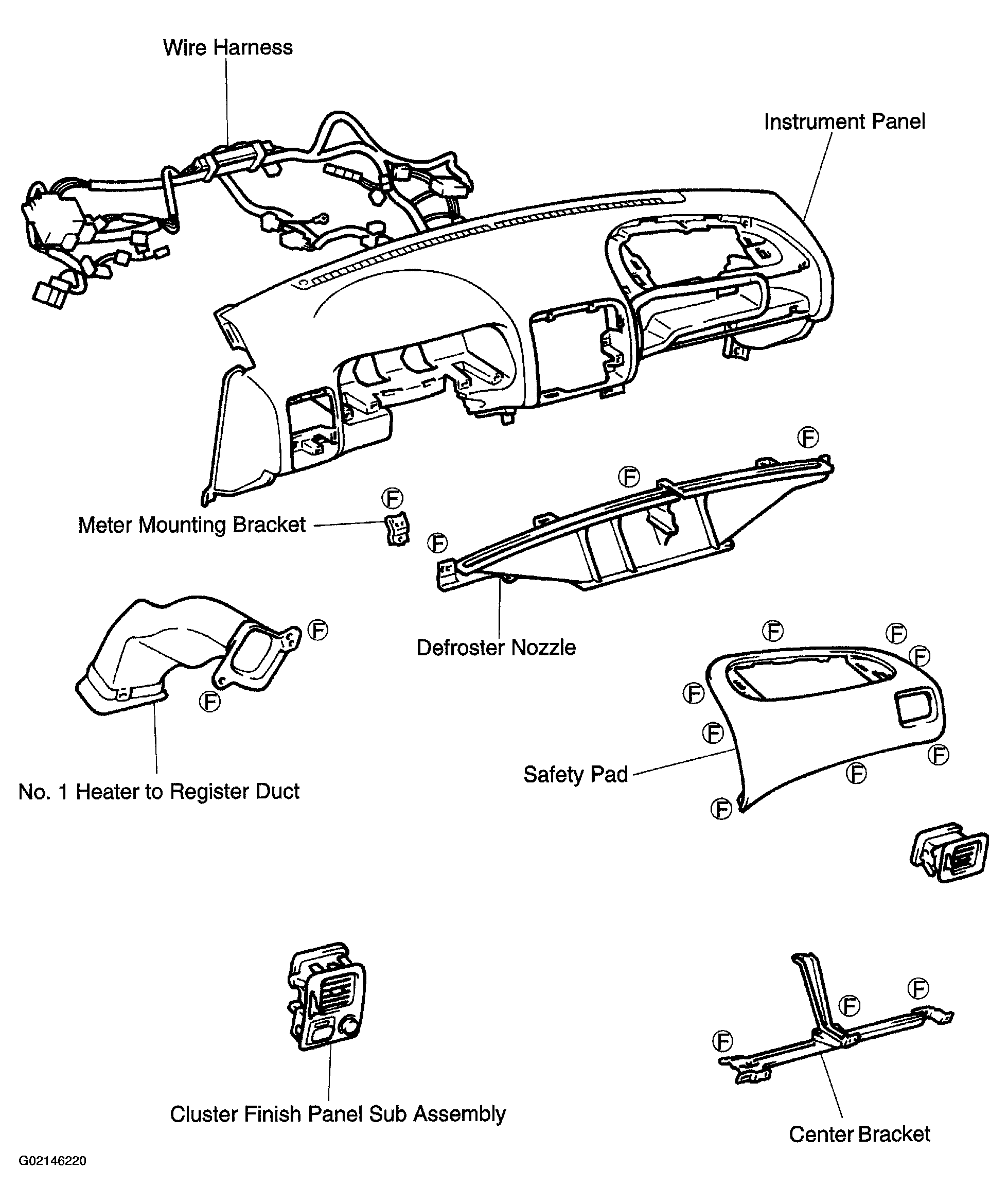

Fig 1: Locating Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

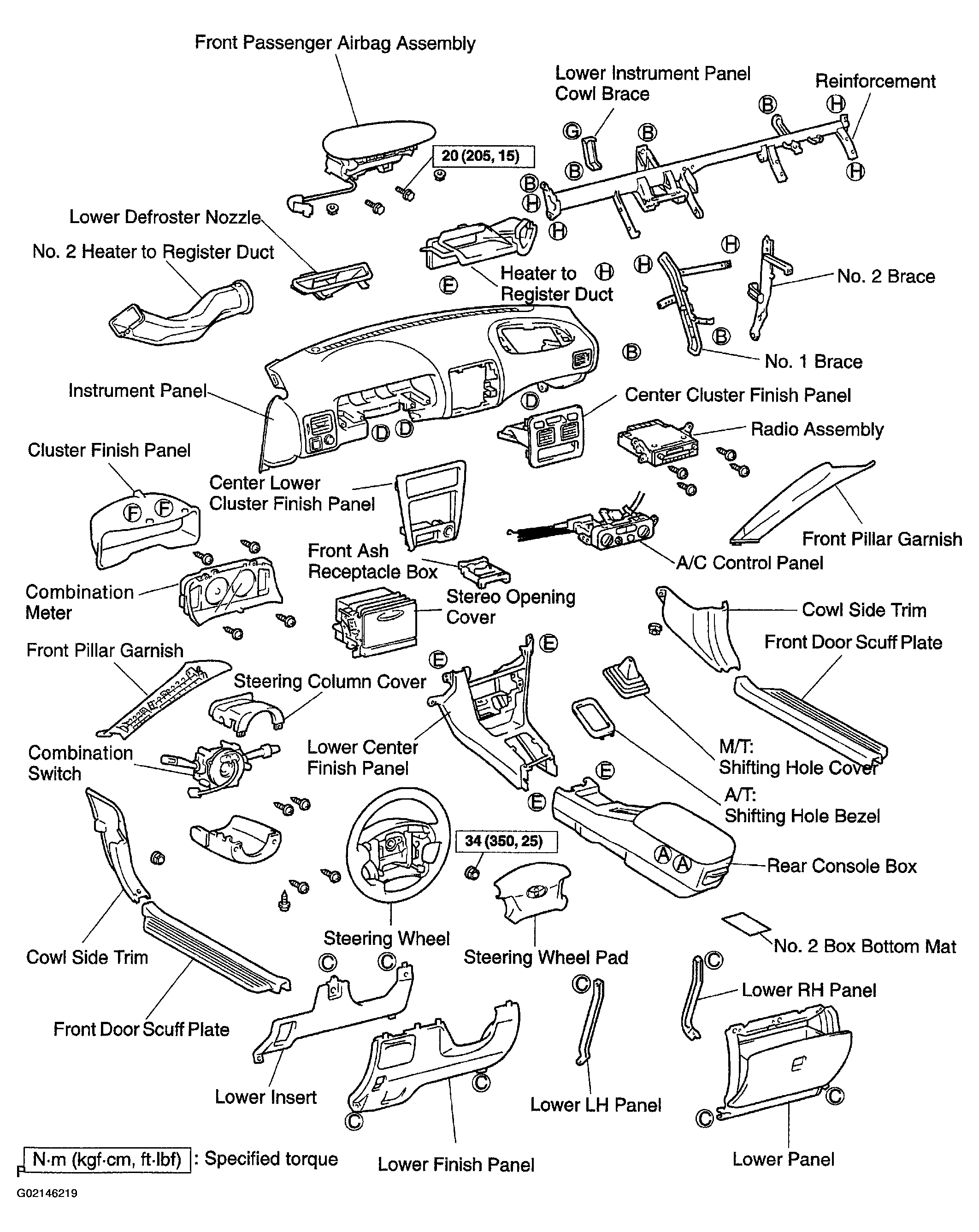

Fig 2: Locating Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Screw shapes and sizes are indicated in Fig 3. The codes (A - H) correspond to those indicated in Fig 1 and Fig 2 .

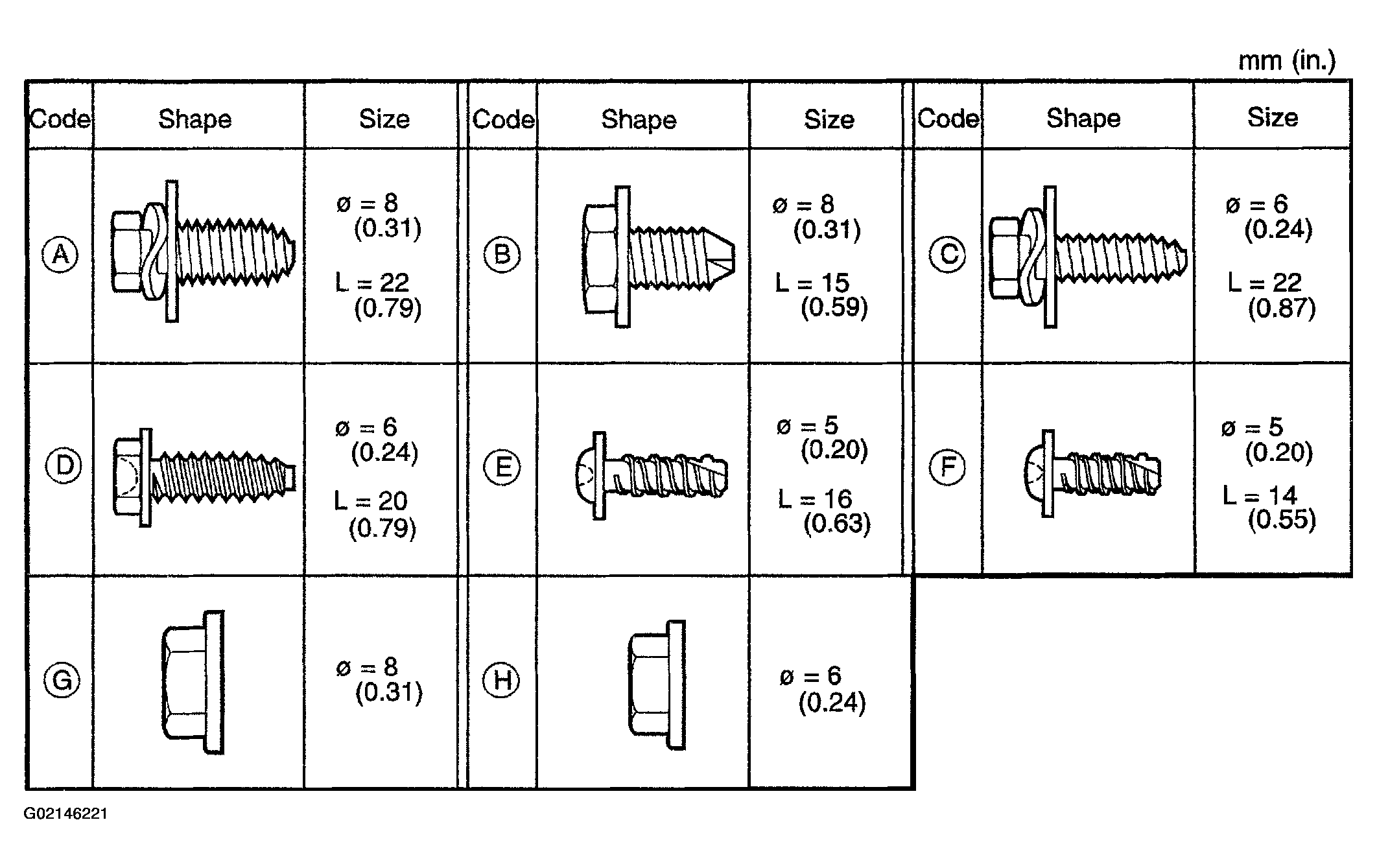

Fig 3: Screw Identification & Sizing
