Exterior/Interior Trim: Windshield: Components

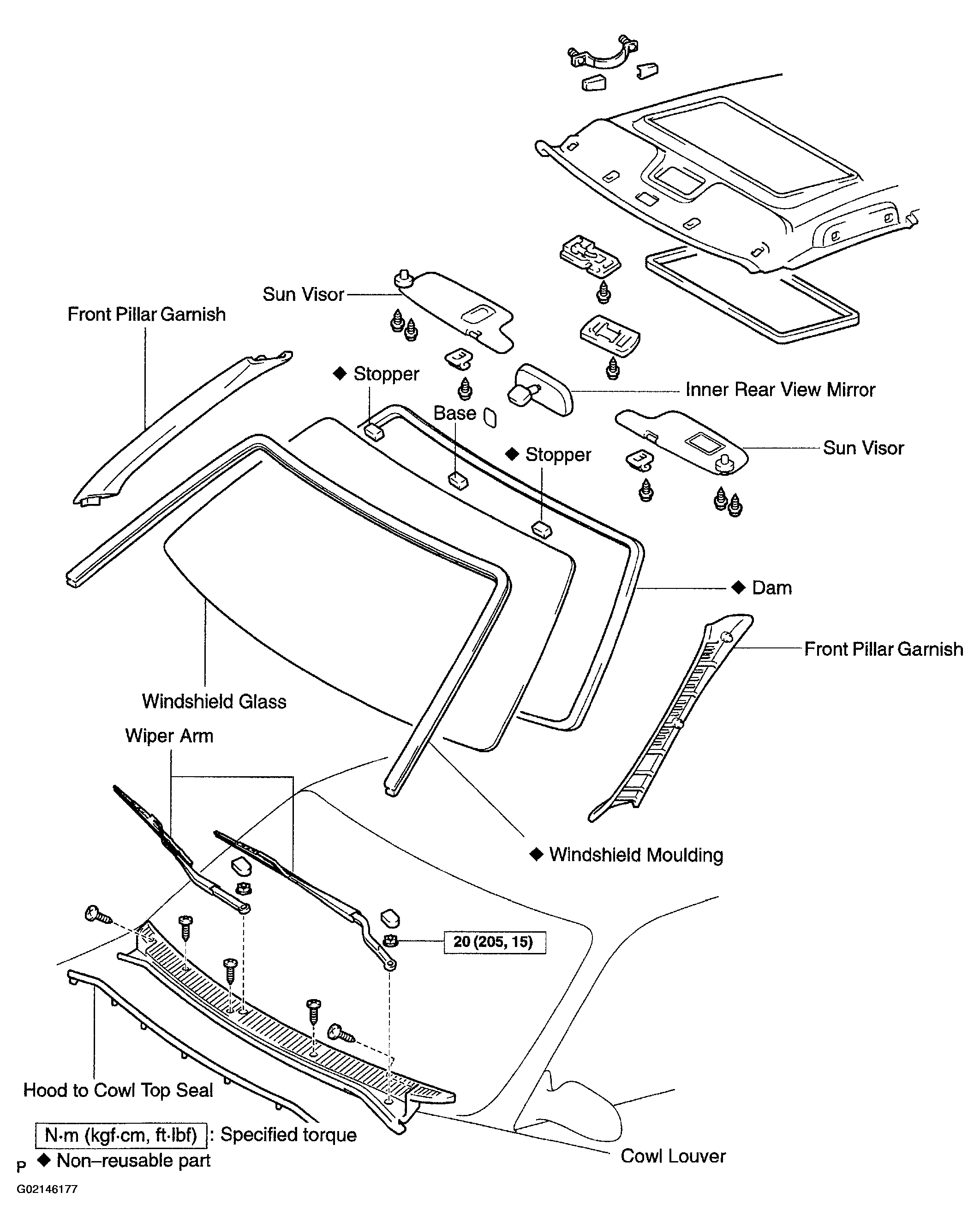

Fig 1: Identifying Windshield Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
