Combination Meter: Circuit

WARNING: This page is about a different car, the 2002 Toyota ECHO. However, it is still accessible from the selected car via links, so may be relevant.

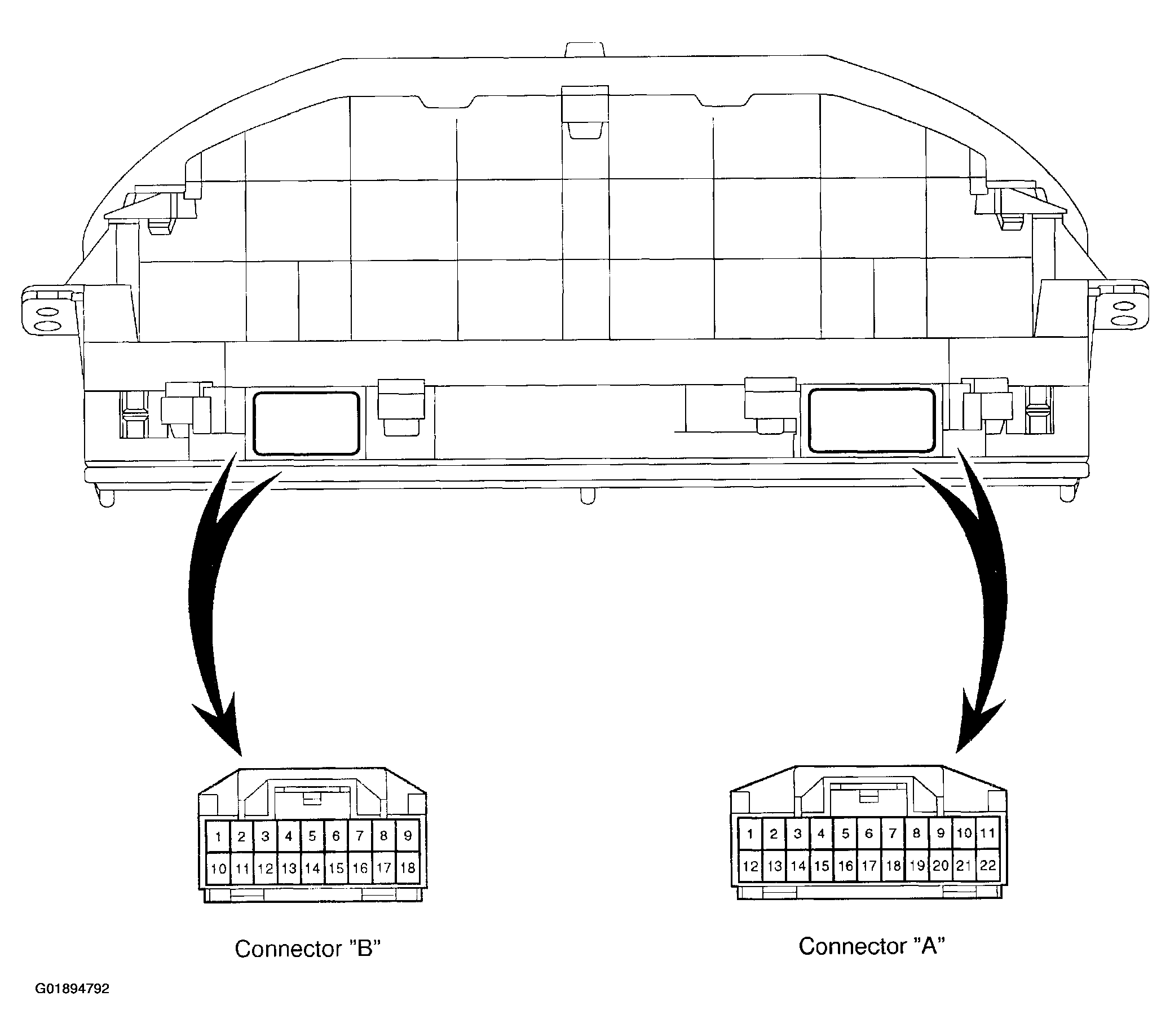

Fig 1: Locating Combination Meter Connectors & Identifying Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

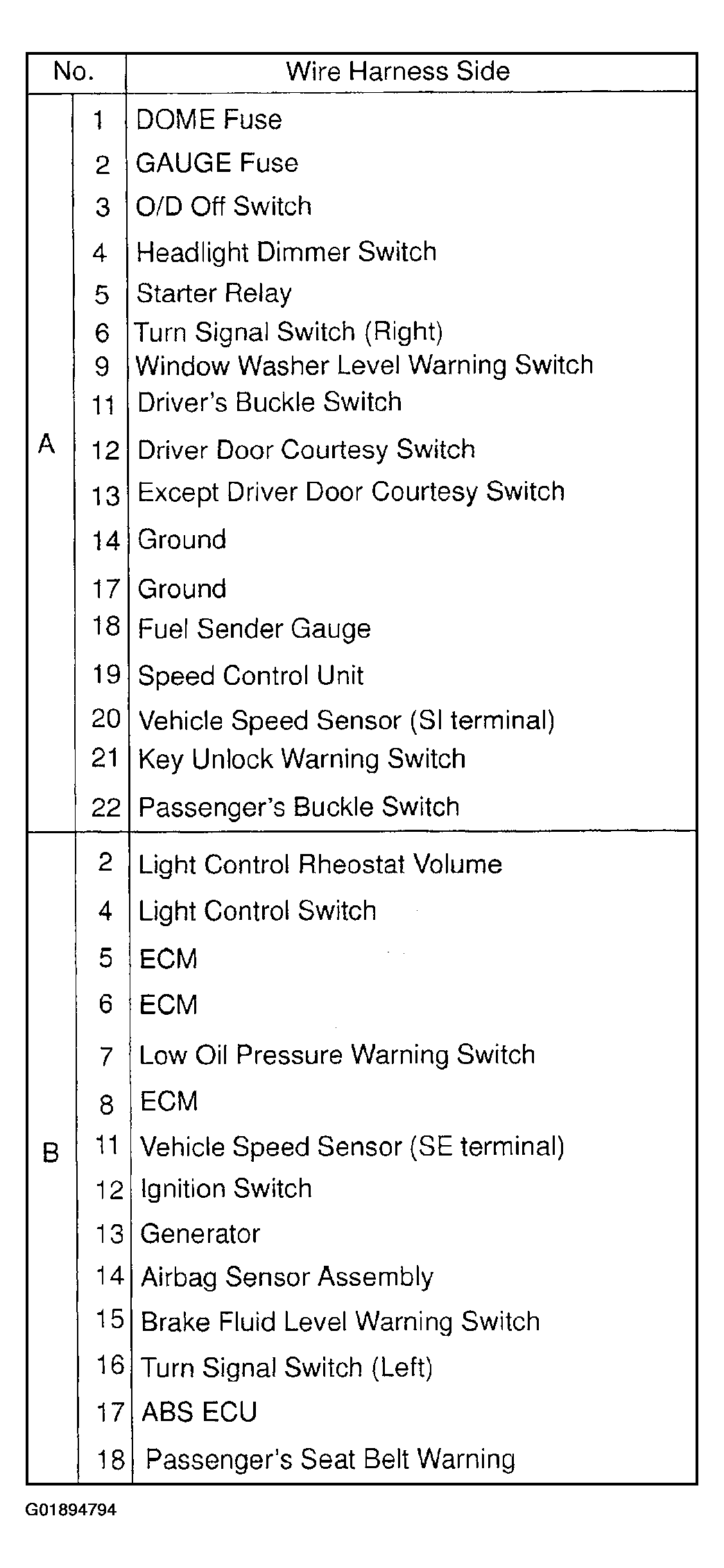

Fig 2: Combination Meter Connector Legend

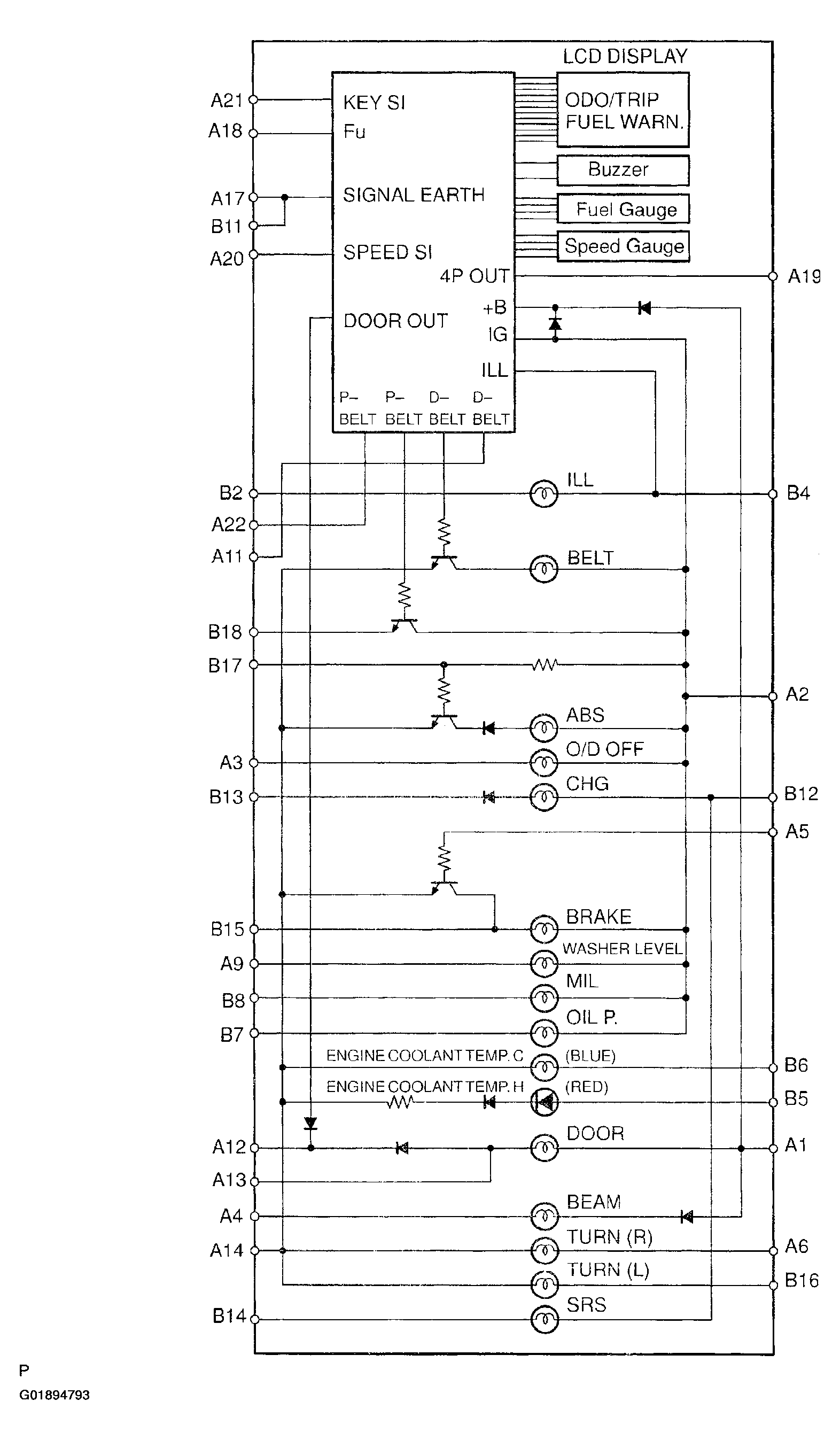

Fig 3: Combination Meter Wiring Diagram
